Tests TU: Calculated Torque Error

PINPOINT TEST TU: CALCULATED TORQUE ERROR

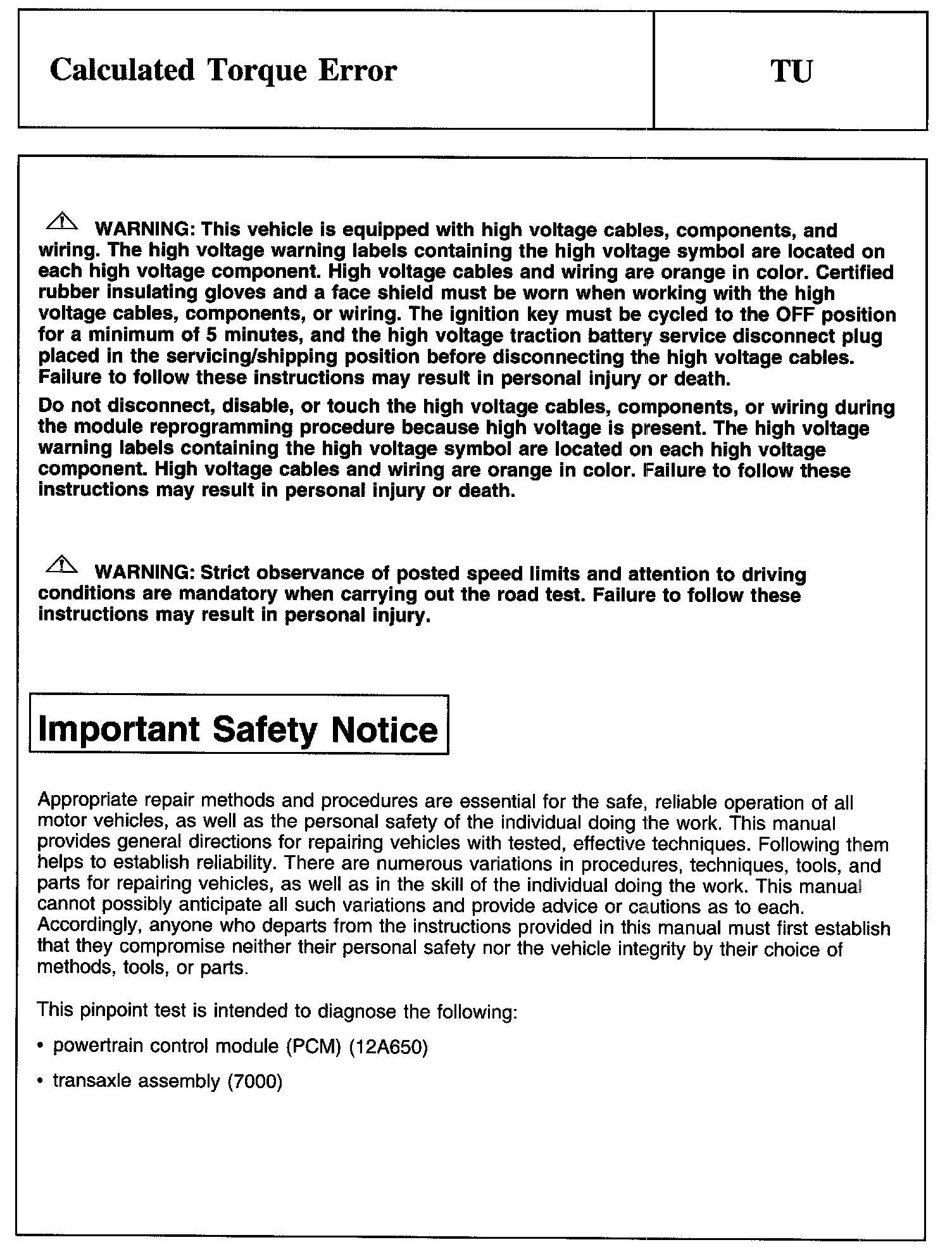

Warning And Important Safety Notice:

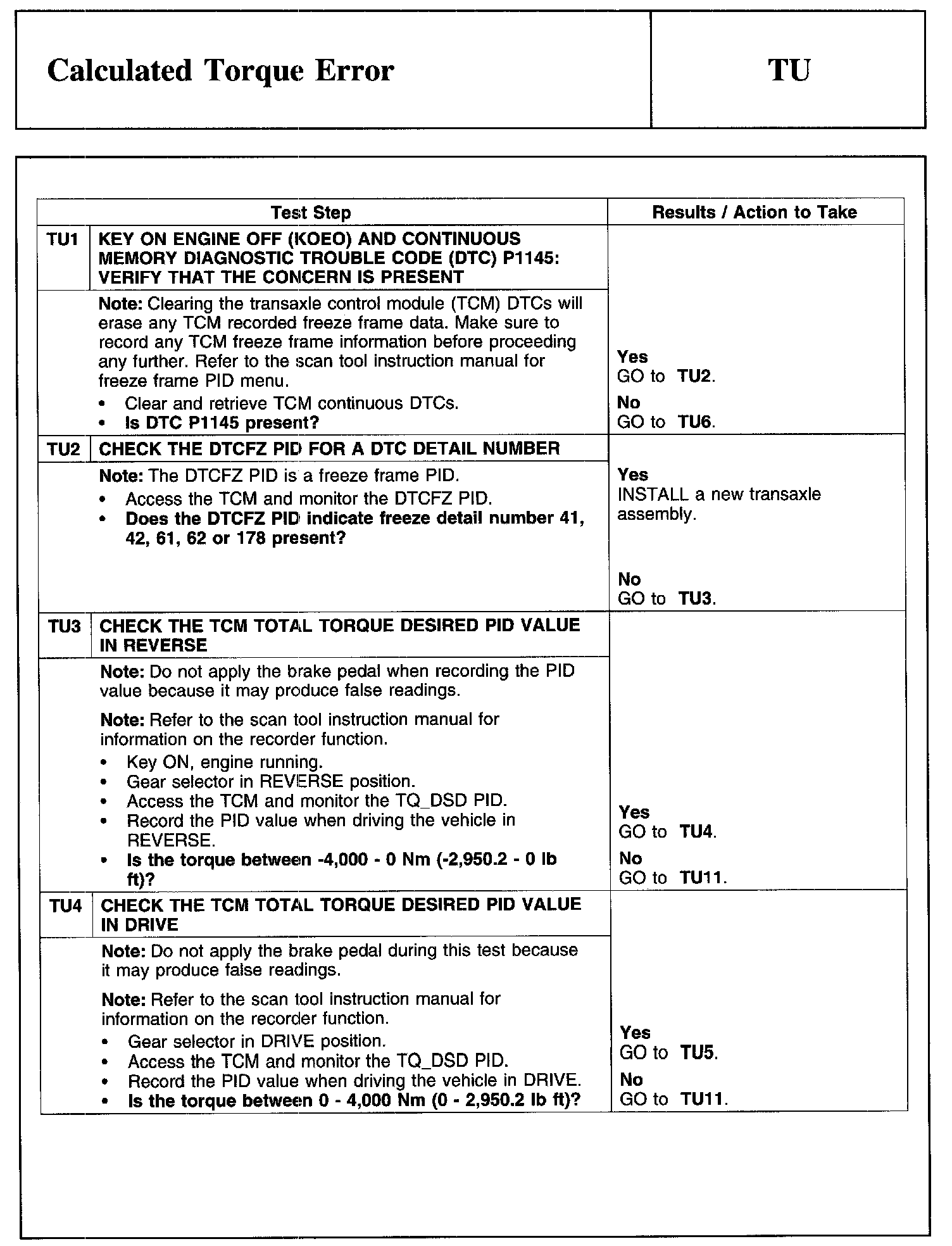

TU1-TU4:

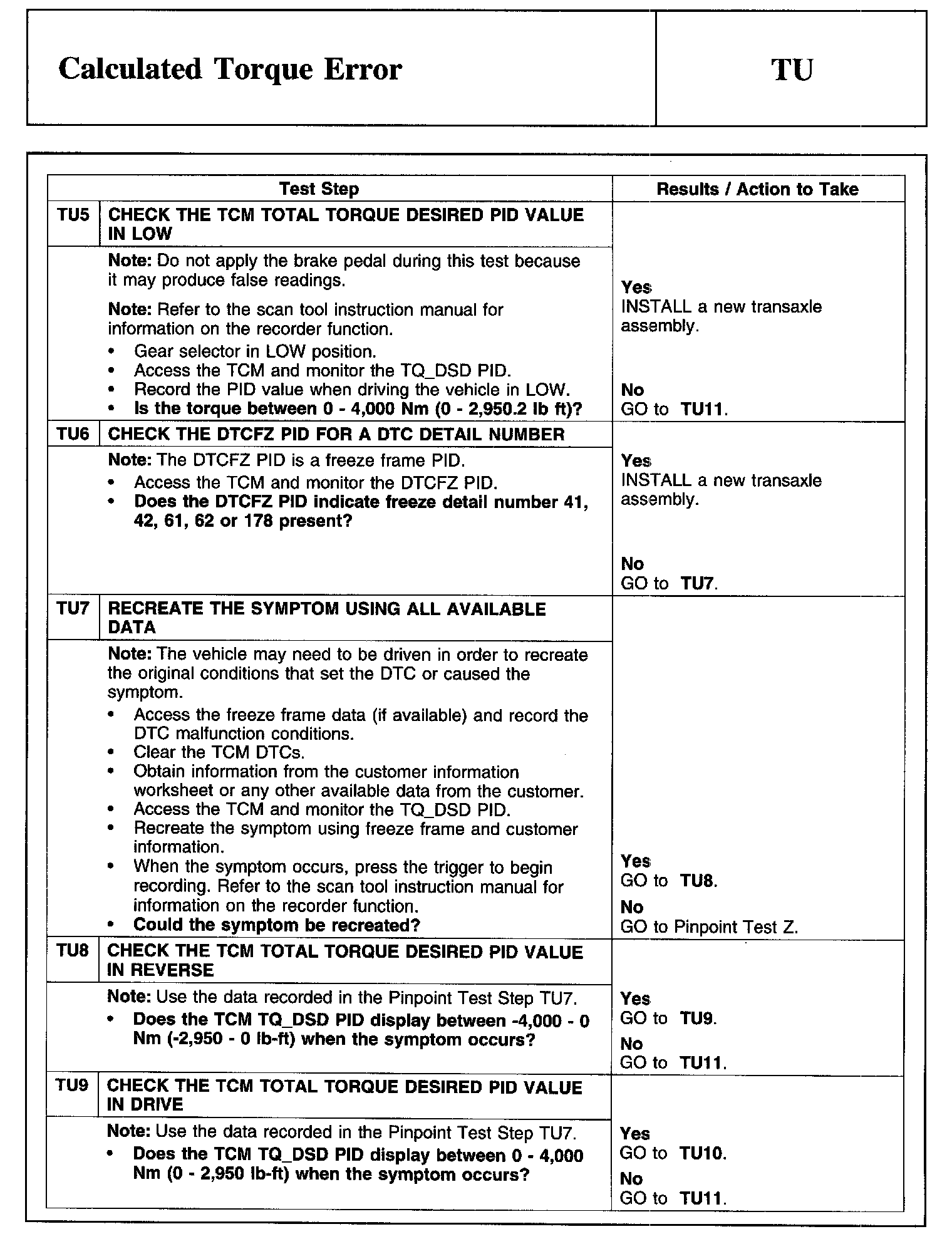

TU5-TU9:

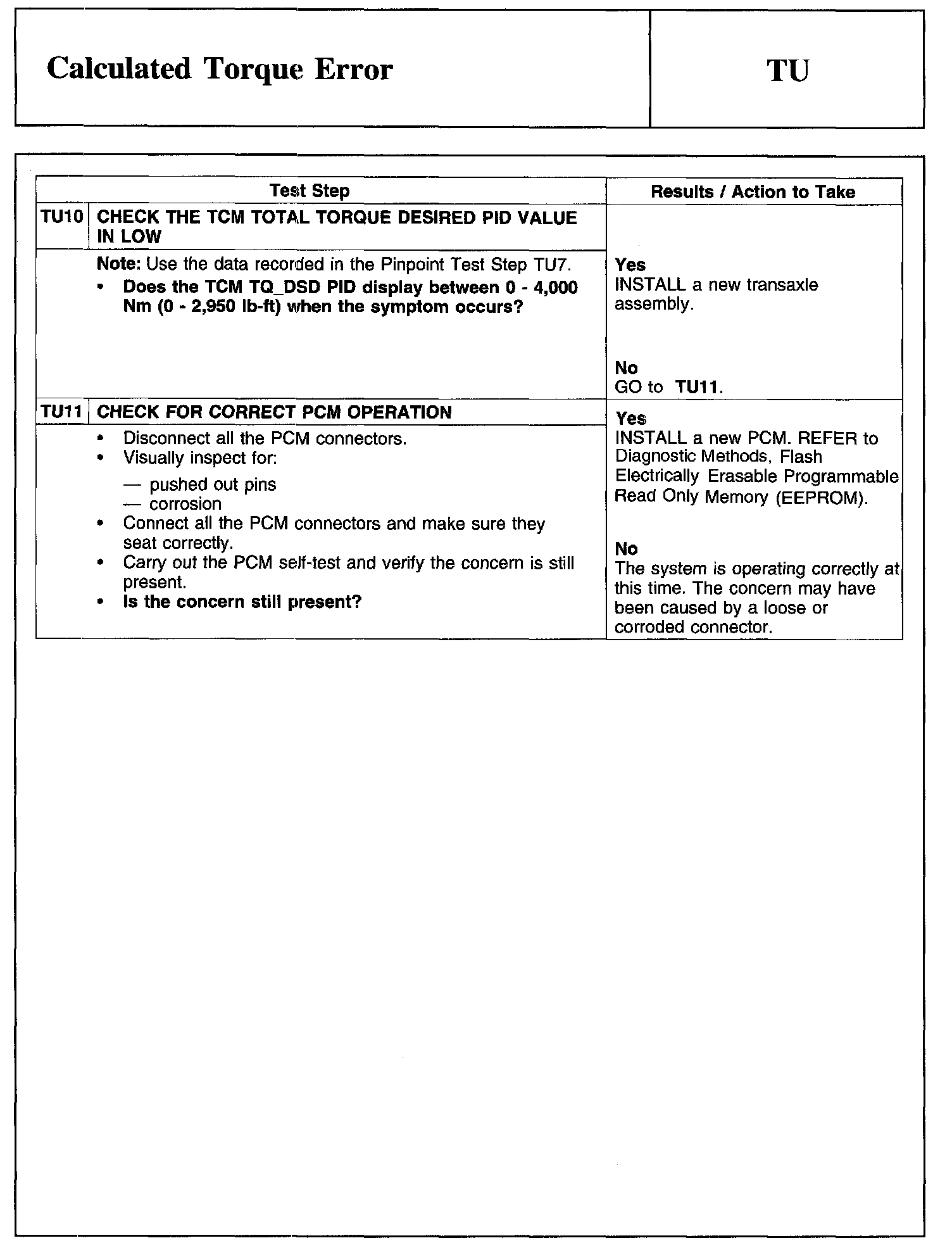

TU10-TU11:
