Reference Value PID/Measured Signal Chart

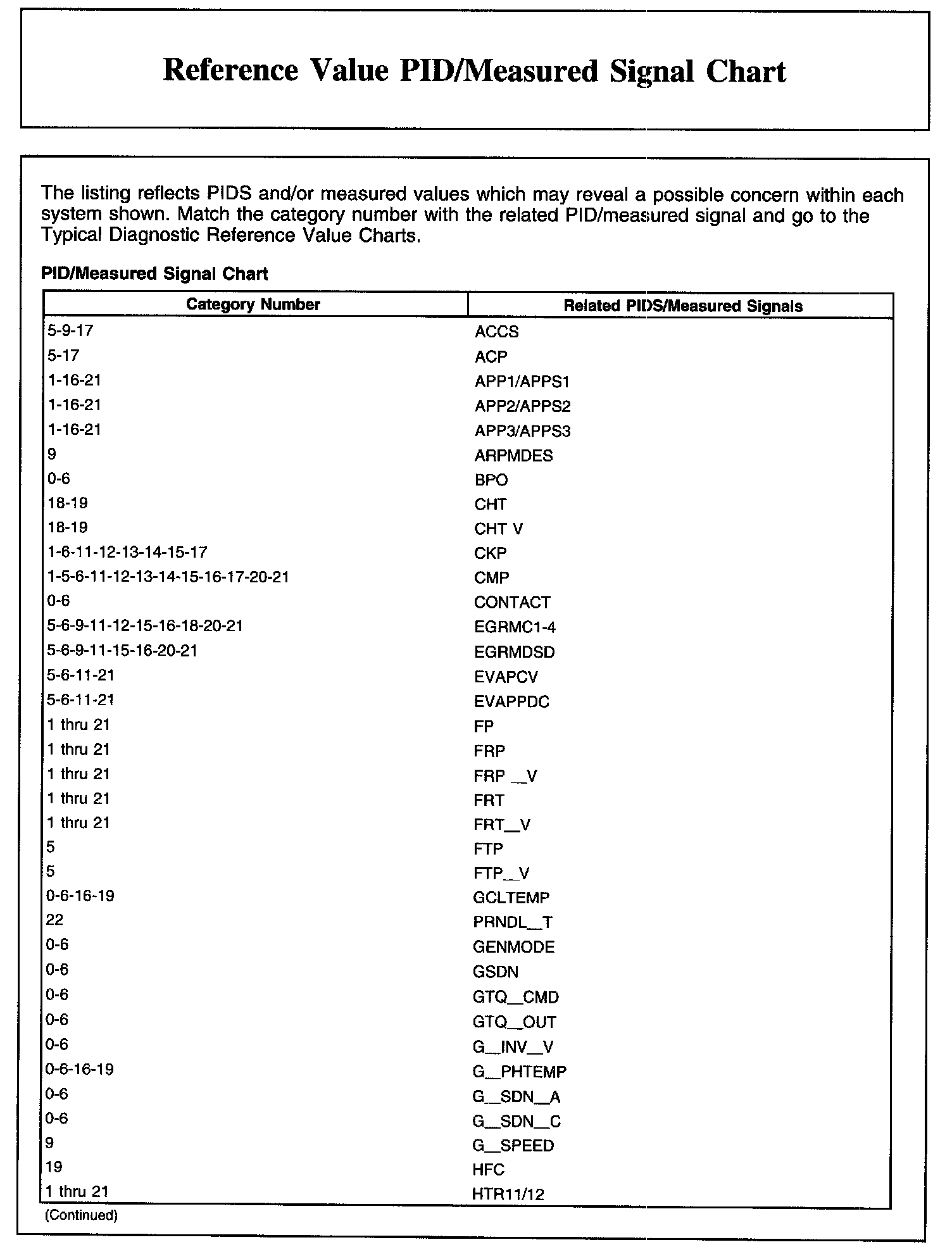

Reference Value PID/Measured Signal Chart (Part 1):

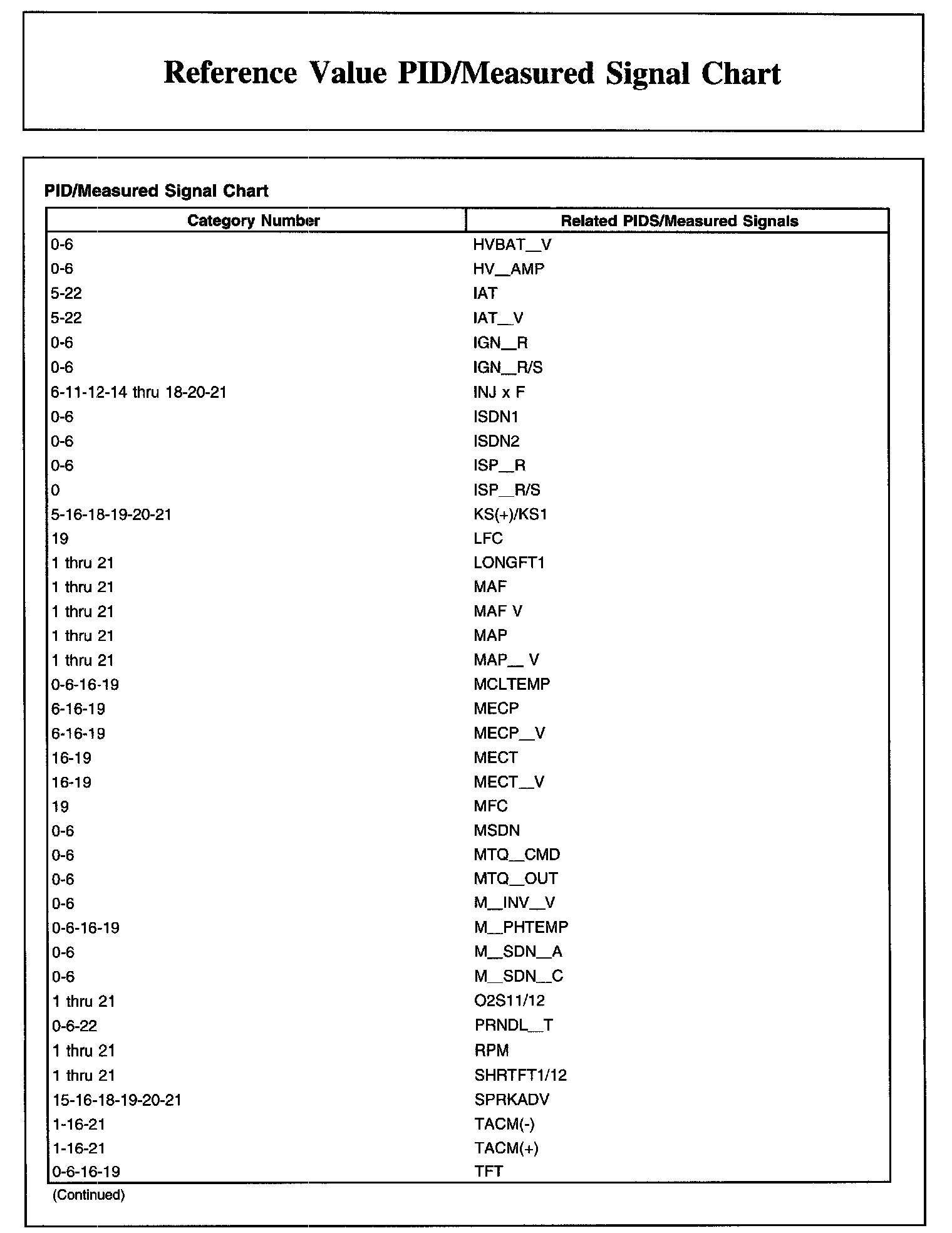

Reference Value PID/Measured Signal Chart (Part 2):



Reference Value PID/Measured Signal Chart (Part 3):
