System Specifications

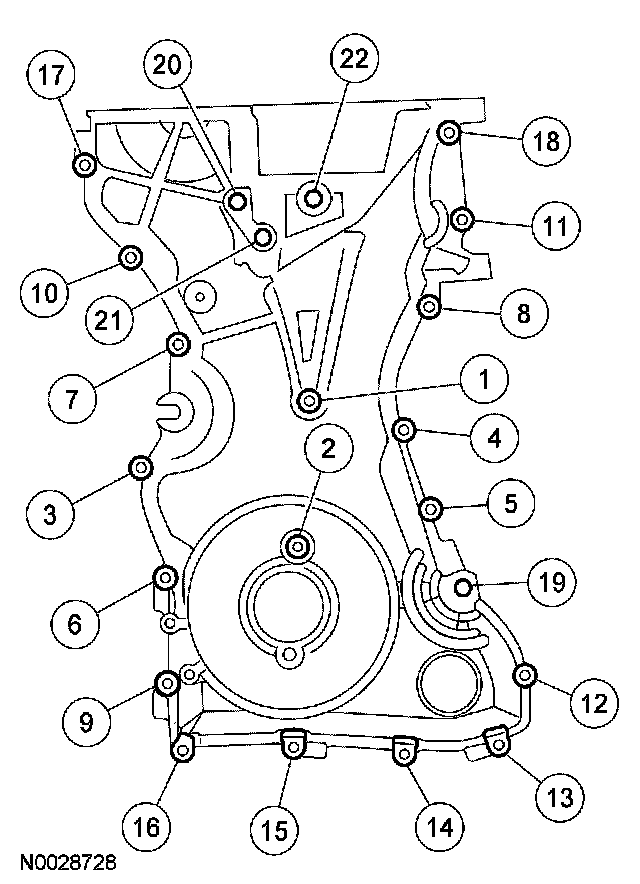

Engine Front Cover Bolts





8 mm bolts 10 Nm (89 inch lbs.)
13 mm bolts 48 Nm (35 ft. lbs.)

Crankshaft Pulley Bolt

Do not reuse the crankshaft pulley bolt.

First pass 100 Nm (74 ft. lbs.)
Final pass Tighten 90° (1/4 turn)
