Clutch Hydraulic System

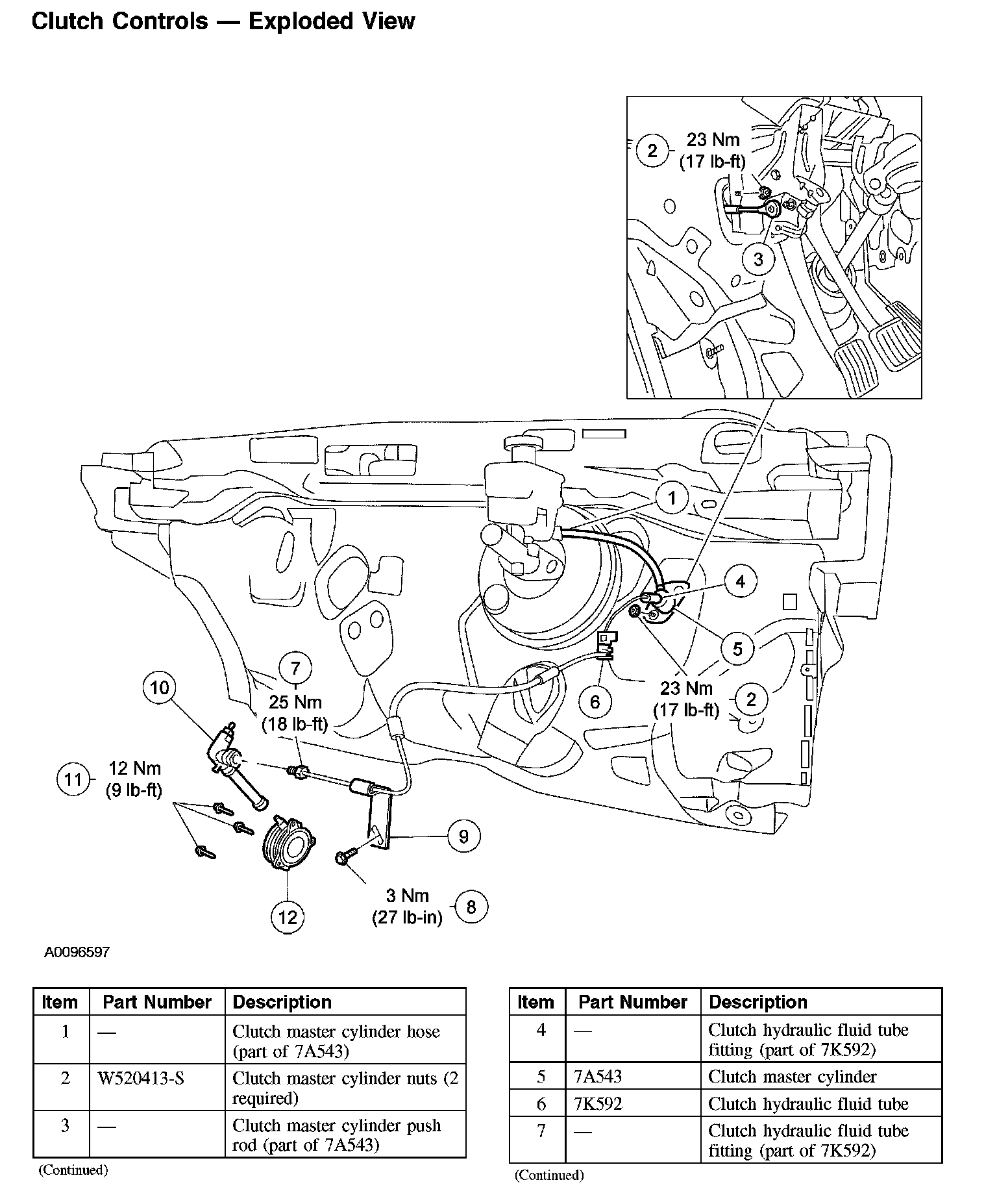

Clutch Controls - Exploded View
Clutch Controls - Exploded View (Part 1):
Clutch Controls - Exploded View (Part 2):
1.
For further information, refer to the procedures.
