Thermostat, Engine Cooling

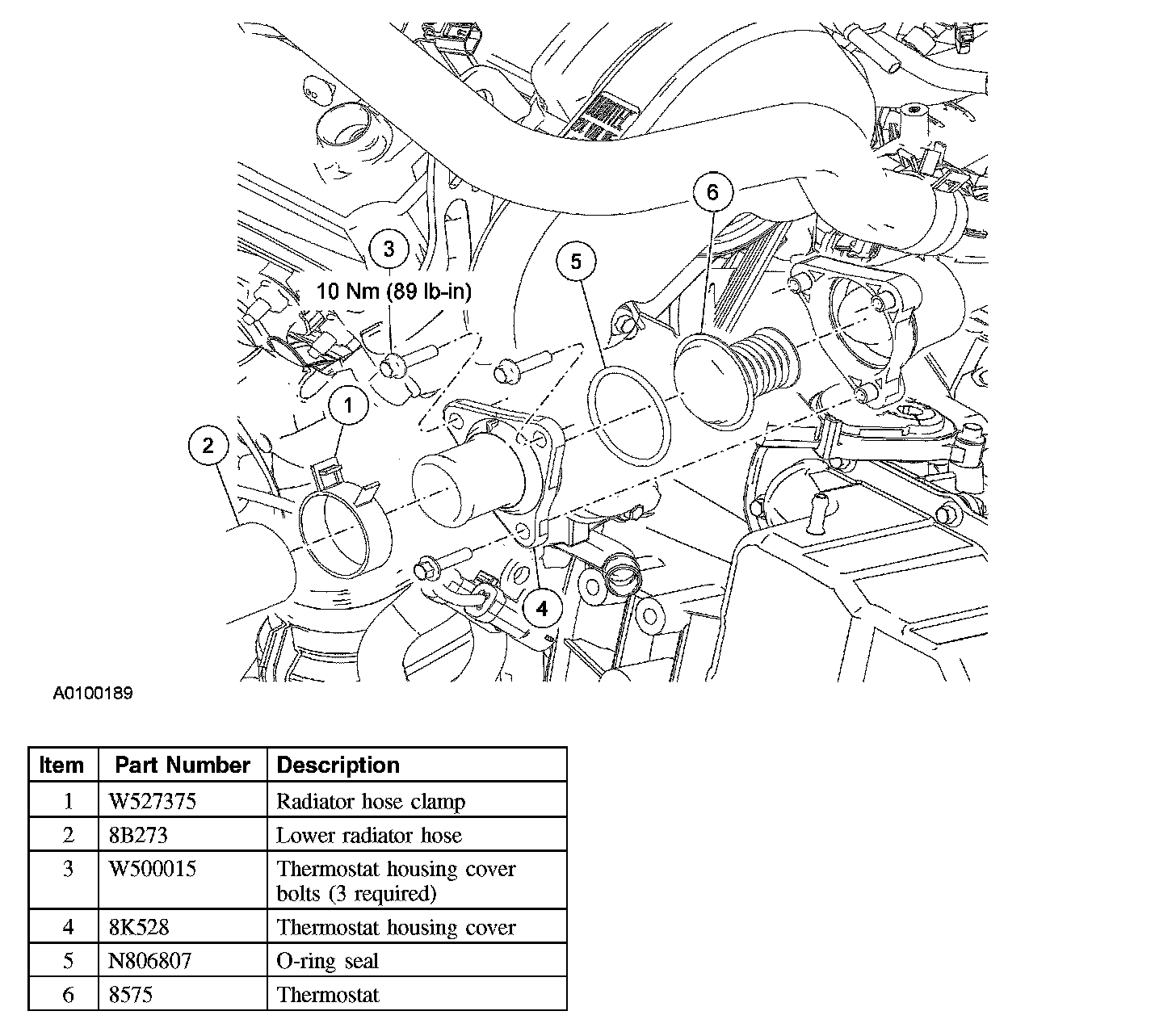

Thermostat - 3.0L (4V)

Thermostat - 3.0L (4V):

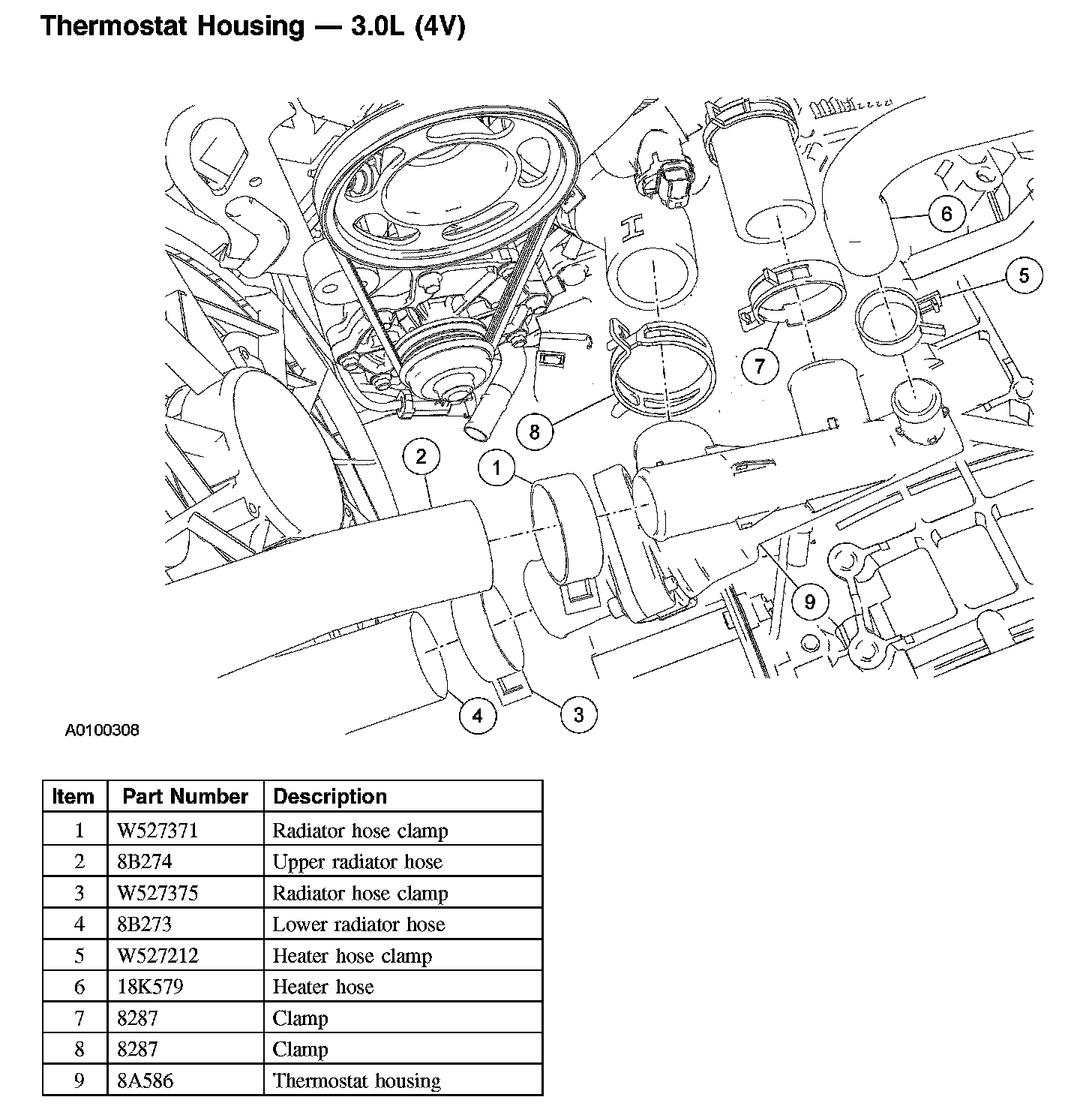

Thermostat Housing - 3.0L (4V)

Thermostat Housing - 3.0L (4V):
