Pressure Feedback Exhaust Sensor: Service and Repair

DIFFERENTIAL PRESSURE FEEDBACK EXHAUST GAS RECIRCULATION (EGR) SENSOR

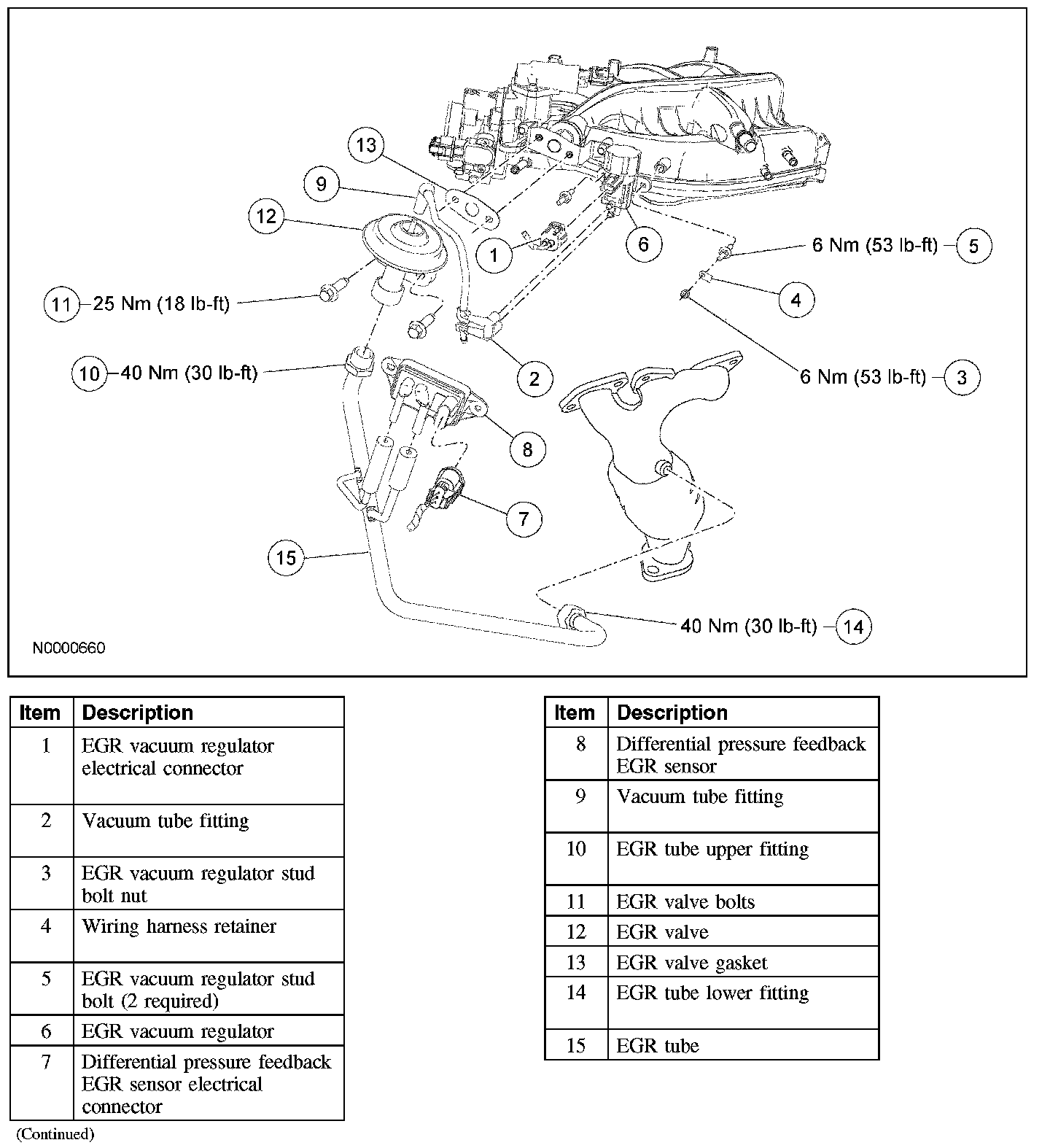

Exploded View

Removal and Installation
1. Disconnect the battery ground cable.
2. Disconnect the differential feedback EGR system sensor electrical connector and detach the wiring retainer.
3. Carefully detach the differential feedback EGR system sensor vacuum tubes and remove the sensor.
4. To install, reverse the removal procedure.
