Drive Belt: Service and Repair

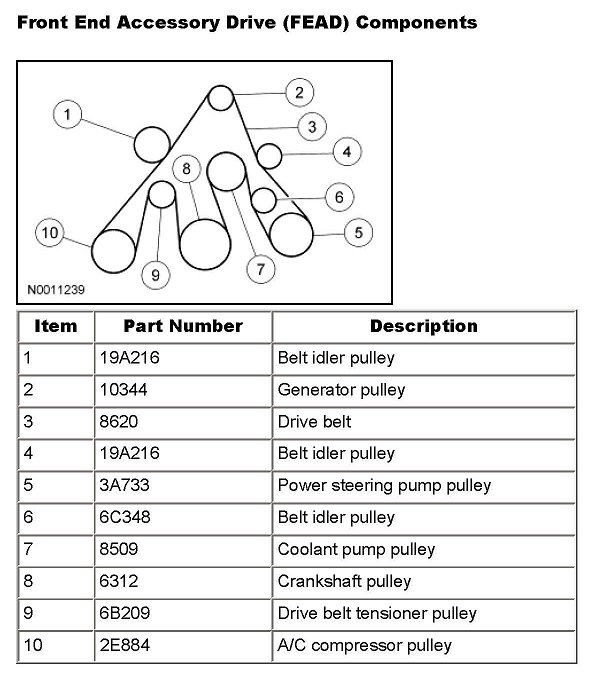

Accessory Drive






Removal

1. Rotate the drive belt tensioner clockwise and remove the drive belt.

Installation

1. To install, reverse the removal procedure.
