Instrument Panel - Exploded View

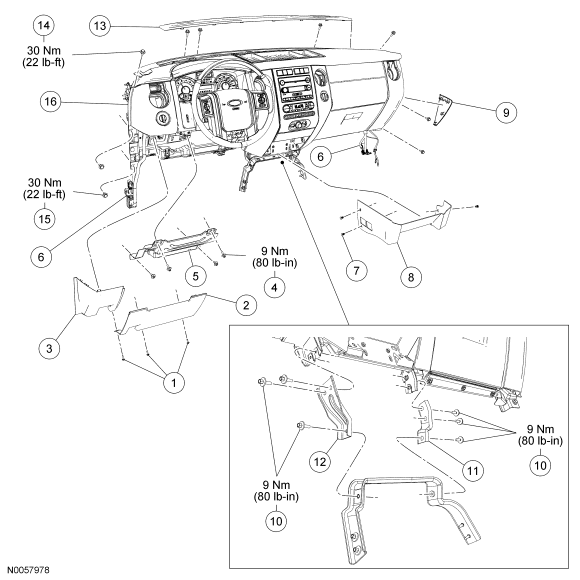

Fig 1: Exploded View Of Instrument Panel With Torque Specifications (Expedition)

GF0021613

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W707628	Instrument panel steering column cover screws (3 required)
2	04459	Instrument panel steering column cover
3	-	Instrument panel lower cover
4	W710879	Steering column reinforcement panel bolt (4 required)
5	017A28	Steering column reinforcement panel
6	14401	Instrument panel electrical wiring harness connectors
7	N811040	Pin-type retainer (3 required)
8	-	Valance panel
9	04480	Instrument panel side finish panel
10	W710879	Instrument panel floor brace bolts (6 required)
11	-	Instrument panel floor brace RH
12	-	Instrument panel floor brace LH
13	044E82	Instrument panel defroster grille
14	W706246	Instrument panel cowl bolt (5 required)
15	W706246	Instrument panel bolt (4 required)
16	04320	Instrument panel

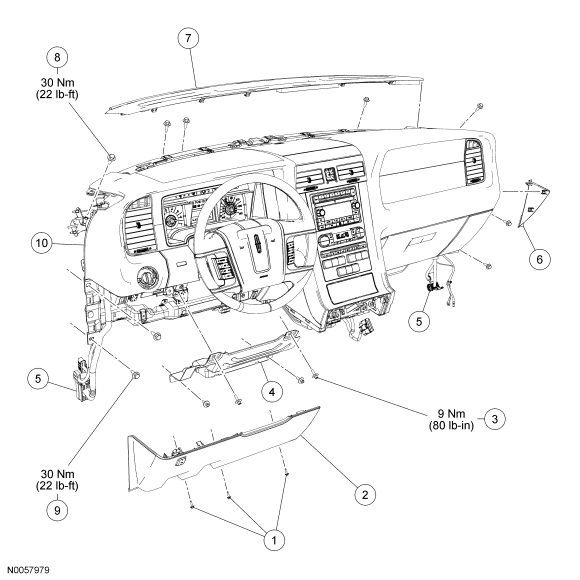

Fig 2: Exploded View Of Instrument Panel With Torque Specifications (Navigator)

GF0021614

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W707628	Instrument panel steering column cover screws (3 required)
2	04459	Instrument panel steering column cover
3	W710879	Steering column reinforcement panel bolt (4 required)
4	017A28	Steering column reinforcement panel
5	14401	Instrument panel electrical wiring harness connectors
6	04480	Instrument panel side finish panel
7	044E82	Instrument panel defroster grille
8	W706246	Instrument panel cowl bolt (5 required)
9	W706246	Instrument panel bolt (4 required)
10	04320	Instrument panel

For additional information, refer to the following procedures.
