Engine Ignition Components - Exploded View

NOTE: RH shown, LH similar.

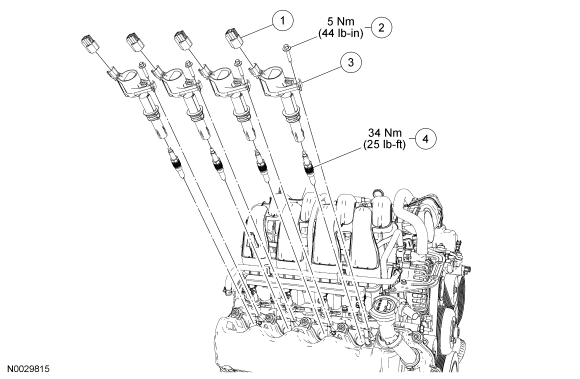

Fig 1: Exploded View Of Engine Ignition Components With Torque Specification
GF0027069Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Ignition coil-on-plug electrical connector (8 required) (part of 12B637)
2 W706175 Ignition coil-on-plug bolt (8 required)
3 12A366 Ignition coil-on-plug (8 required)
4 12405 Spark plug (8 required)
  1. For additional information, refer to the procedures in this article.
