Timing Cover

Upper cover bolts

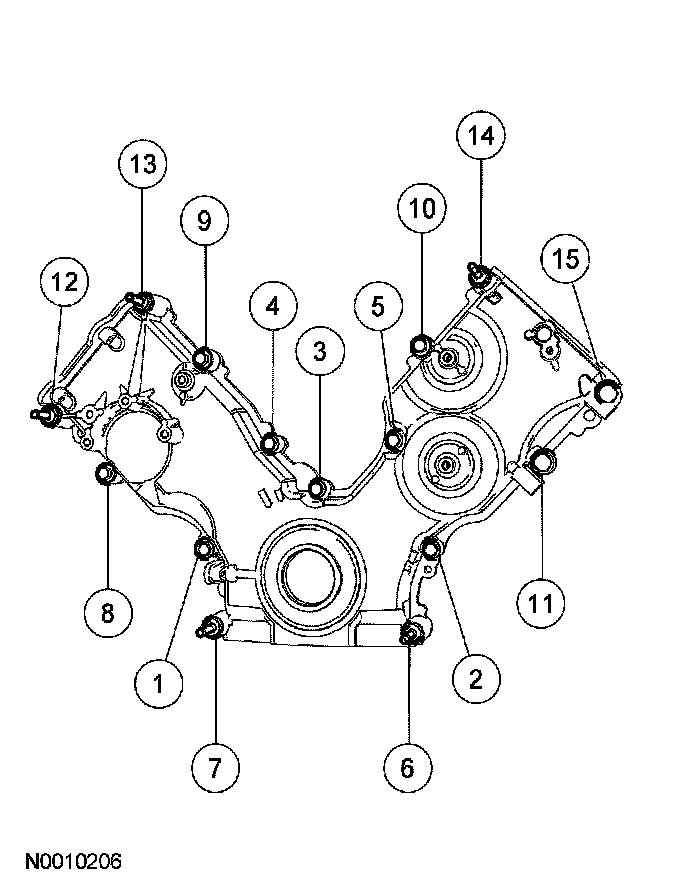

Tighten the engine front cover fasteners in the sequence shown.
Stage 1: Fasteners 1 through 15 25 Nm (18 ft. lbs.)
Stage 2: Fasteners 6 and 7 48 Nm (35 ft. lbs.)











Lower bolts
Tighten the engine front cover fasteners in the sequence shown in 2 stages.
Stage 1: 20 Nm (15 ft. lbs.)
Stage 2: an additional 60 degrees
