Inline Connectors
Fig 1: Inline Connector End View (C133)
Courtesy of FORD MOTOR CO.
Fig 2: Inline Connector End View (C134)
Courtesy of FORD MOTOR CO.

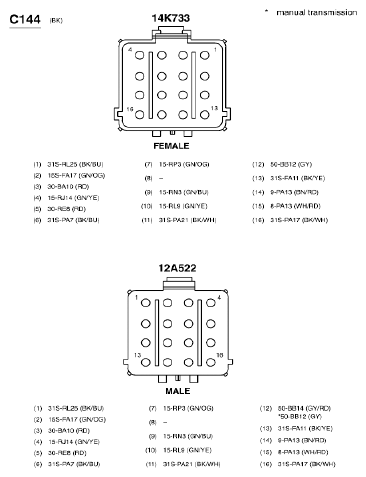

Fig 3: Inline Connector End View (C144)
Courtesy of FORD MOTOR CO.

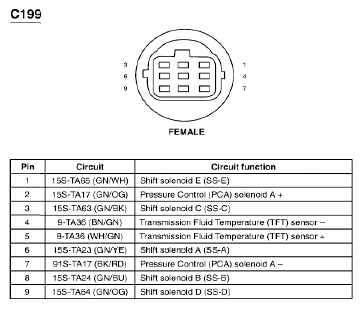

Fig 4: Inline Connector End View (C199)
Courtesy of FORD MOTOR CO.

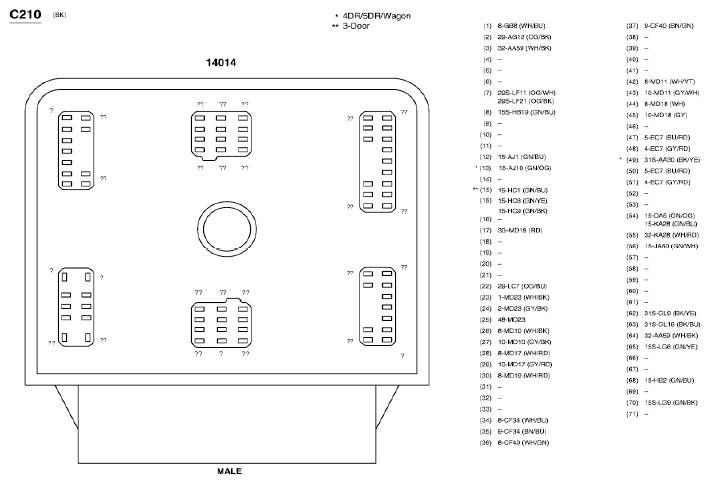

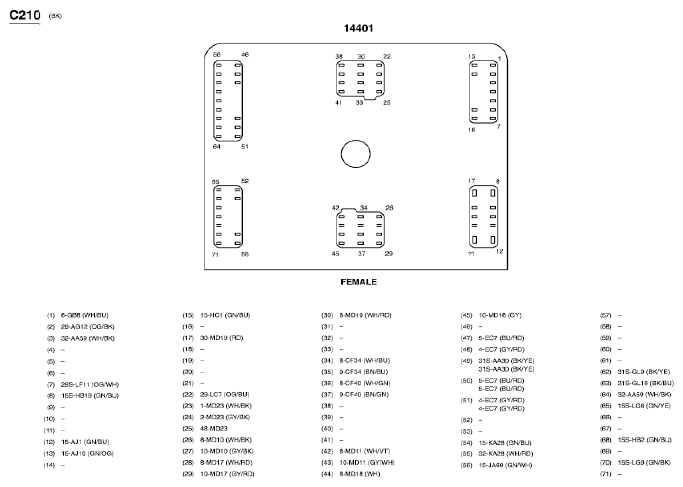

Fig 5: Inline Connector End View (C210)
Courtesy of FORD MOTOR CO.
Fig 6: Inline Connector End View (C210)
Courtesy of FORD MOTOR CO.
Fig 7: Inline Connector End View (C211a)
Courtesy of FORD MOTOR CO.

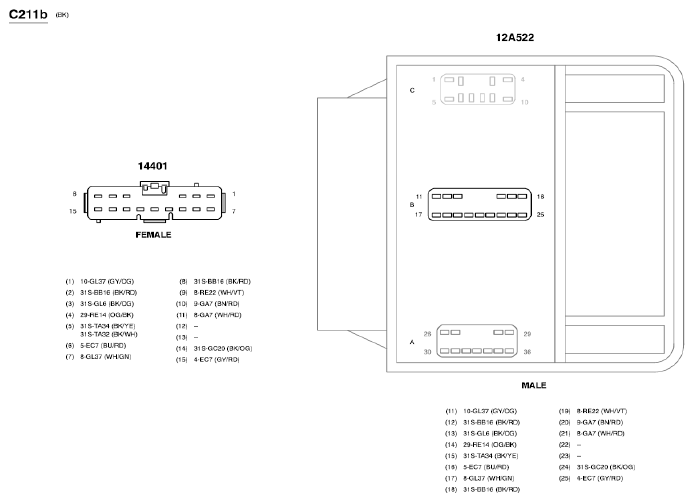

Fig 8: Inline Connector End View (C211b)
Courtesy of FORD MOTOR CO.

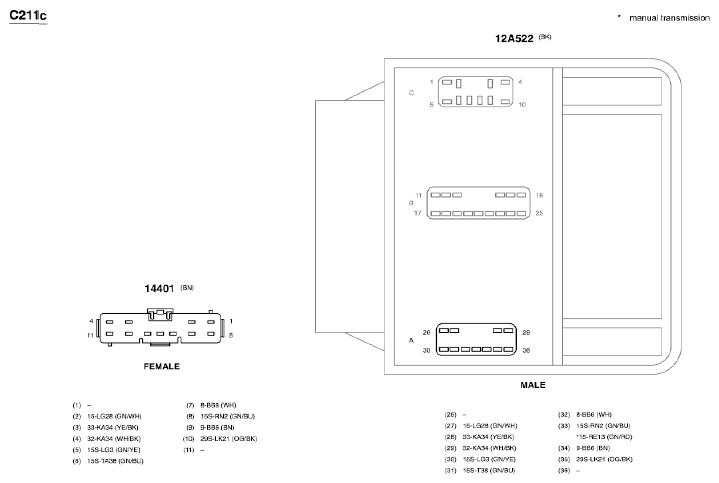

Fig 9: Inline Connector End View (C211c)
Courtesy of FORD MOTOR CO.
Fig 10: Inline Connector End View (C212)
Courtesy of FORD MOTOR CO.

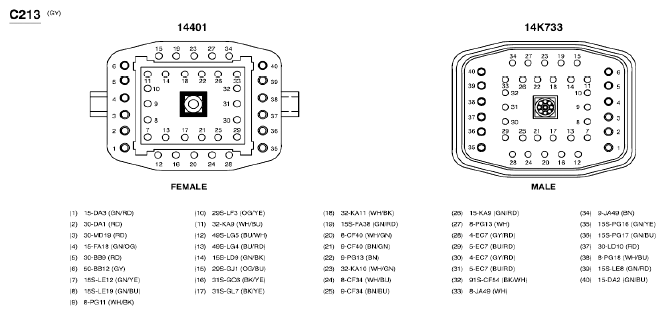

Fig 11: Inline Connector End View (C213)
Courtesy of FORD MOTOR CO.
Fig 12: Inline Connector End View (C311c)
Courtesy of FORD MOTOR CO.
Fig 13: Inline Connector End View (C312c)
Courtesy of FORD MOTOR CO.
Fig 14: Inline Connector End View (C312d)
Courtesy of FORD MOTOR CO.

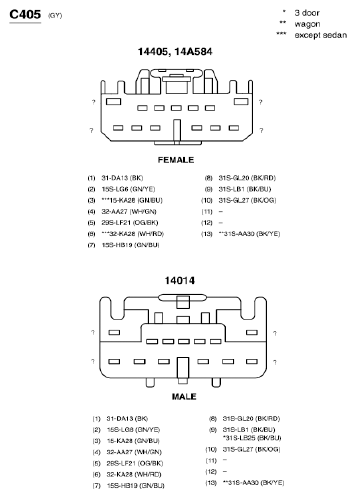

Fig 15: Inline Connector End View (C405)
Courtesy of FORD MOTOR CO.
Fig 16: Inline Connector End View (C408)
Courtesy of FORD MOTOR CO.
Fig 17: Inline Connector End View (C422)
Courtesy of FORD MOTOR CO.
Fig 18: Inline Connector End View (C423)
Courtesy of FORD MOTOR CO.

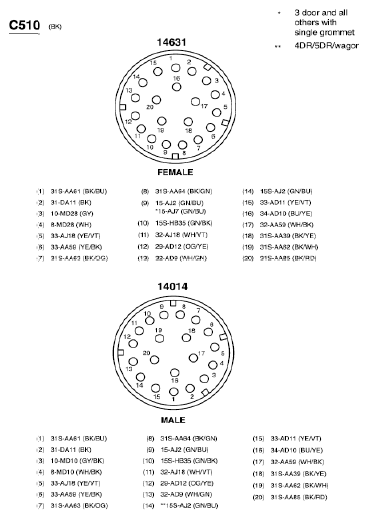

Fig 19: Inline Connector End View (C510)
Courtesy of FORD MOTOR CO.

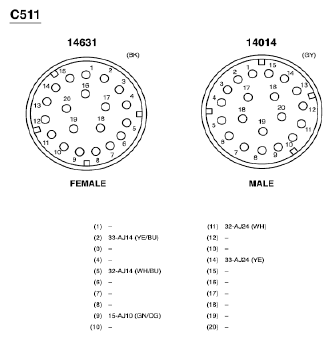

Fig 20: Inline Connector End View (C511)
Courtesy of FORD MOTOR CO.

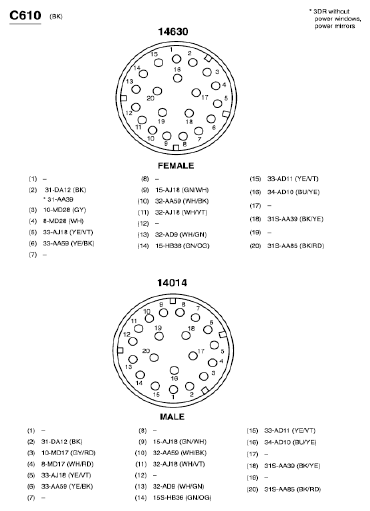

Fig 21: Inline Connector End View (C610)
Courtesy of FORD MOTOR CO.
Fig 22: Inline Connector End View (C700)
Courtesy of FORD MOTOR CO.
Fig 23: Inline Connector End View (C800)
Courtesy of FORD MOTOR CO.
Fig 24: Inline Connector End View (C913)
Courtesy of FORD MOTOR CO.
Fig 25: Inline Connector End View (C1019)
Courtesy of FORD MOTOR CO.

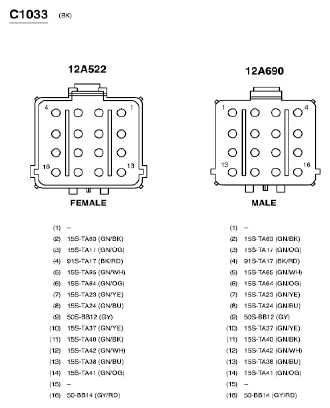

Fig 26: Inline Connector End View (C1033)
Courtesy of FORD MOTOR CO.

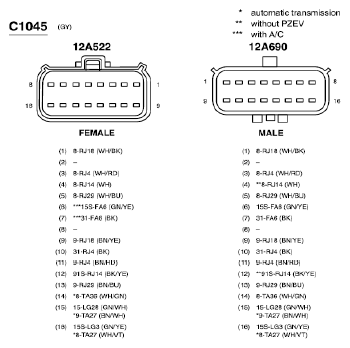

Fig 27: Inline Connector End View (C1045)
Courtesy of FORD MOTOR CO.
Fig 28: Inline Connector End View (C1046)
Courtesy of FORD MOTOR CO.
Fig 29: Inline Connector End View (C1047)
Courtesy of FORD MOTOR CO.
Fig 30: Inline Connector End View (C1147)
Courtesy of FORD MOTOR CO.
Fig 31: Inline Connector End View (C1148)
Courtesy of FORD MOTOR CO.
Fig 32: Inline Connector End View (C2262)
Courtesy of FORD MOTOR CO.
Fig 33: Inline Connector End View (C3249)
Courtesy of FORD MOTOR CO.
