Transmission Range (TR) Sensor Connector

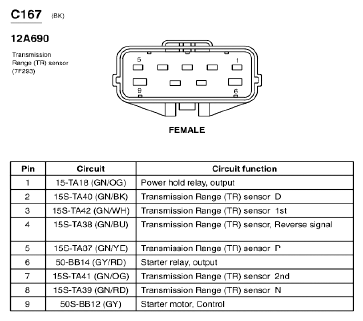

Fig 1: Transmission Range (TR) Sensor Connector End View (C167)
G07850371Courtesy of FORD MOTOR CO.
