Throttle Position Sensor Connector

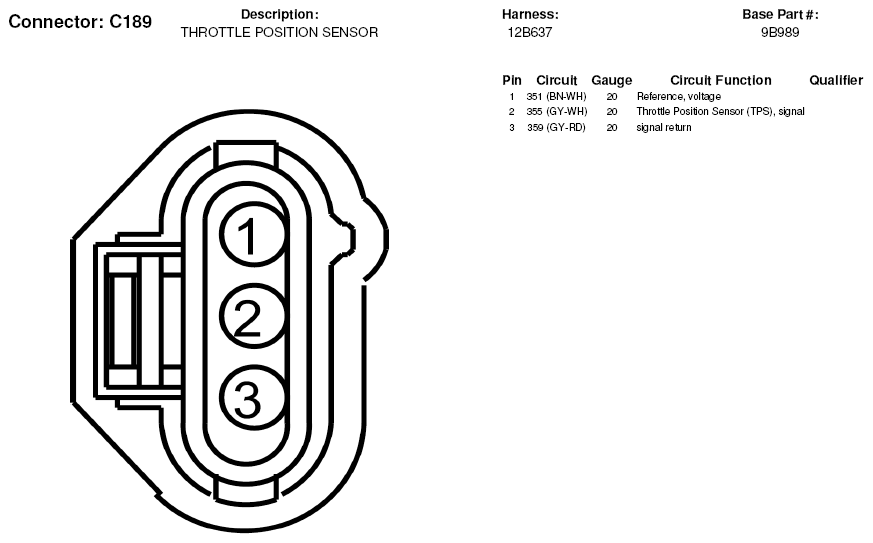

Fig 1: Throttle Position Sensor Connector End View (C189)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
