Memory Set Switch Connector

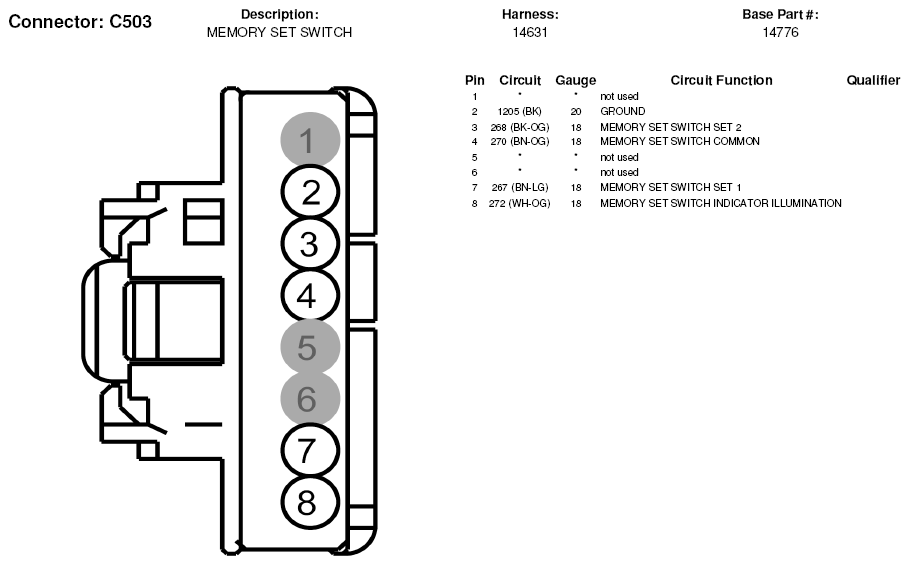

Fig 1: Memory Set Switch Connector End View (C503)
Courtesy of FORD MOTOR CO.
