Oil Pan, Engine

Oil Pan
Position the oil pan and install the 10 bolts and 5 stud bolts finger tight.
Install the 2 oil pan-to-transaxle bolts.
^ Tighten to 48 Nm (35 ft. lbs.).

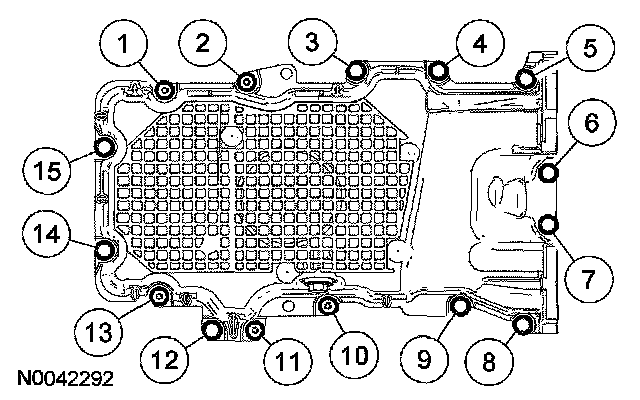

Tighten the oil pan-to-engine bolts and stud bolts in the sequence shown to 25 Nm (18 ft. lbs.).
