Hazard Flasher Switch Connector

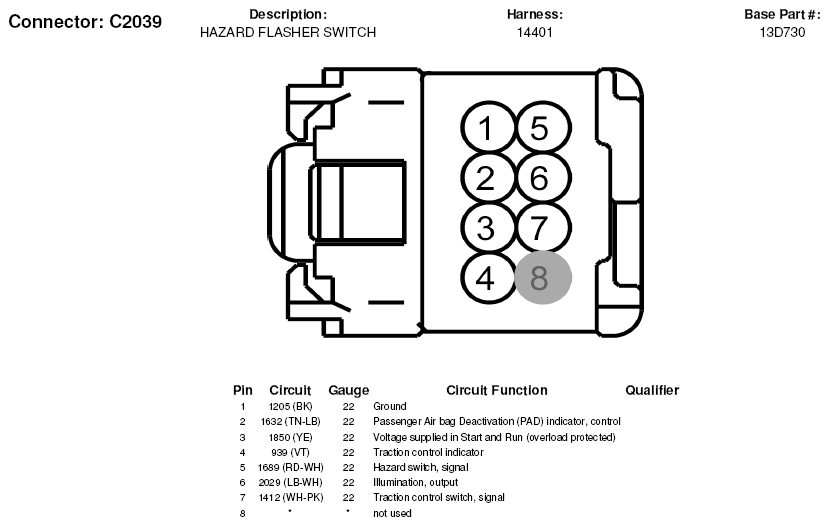

Fig 1: Hazard Flasher Switch Connector End View (C2039)
Courtesy of FORD MOTOR CO.
