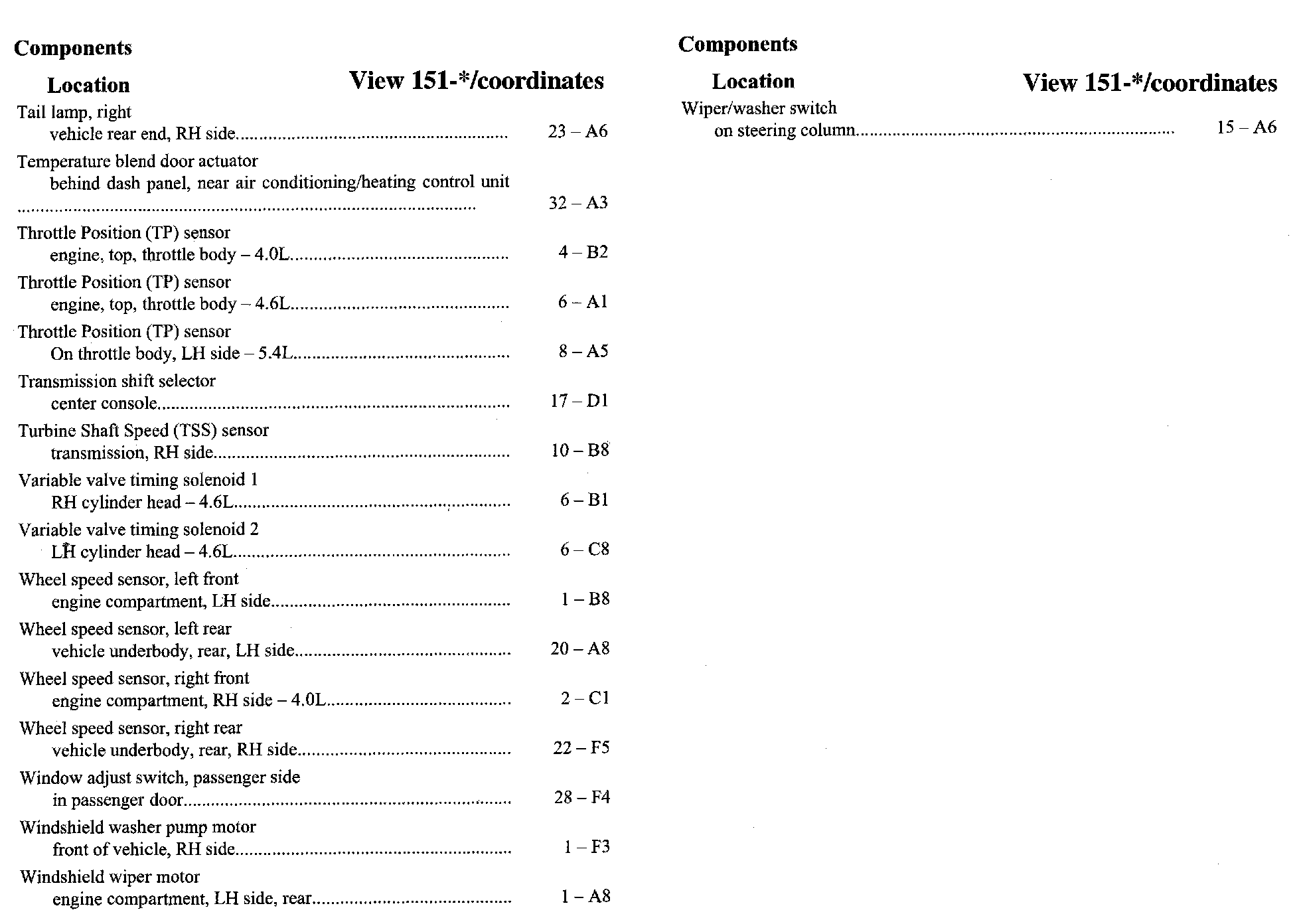

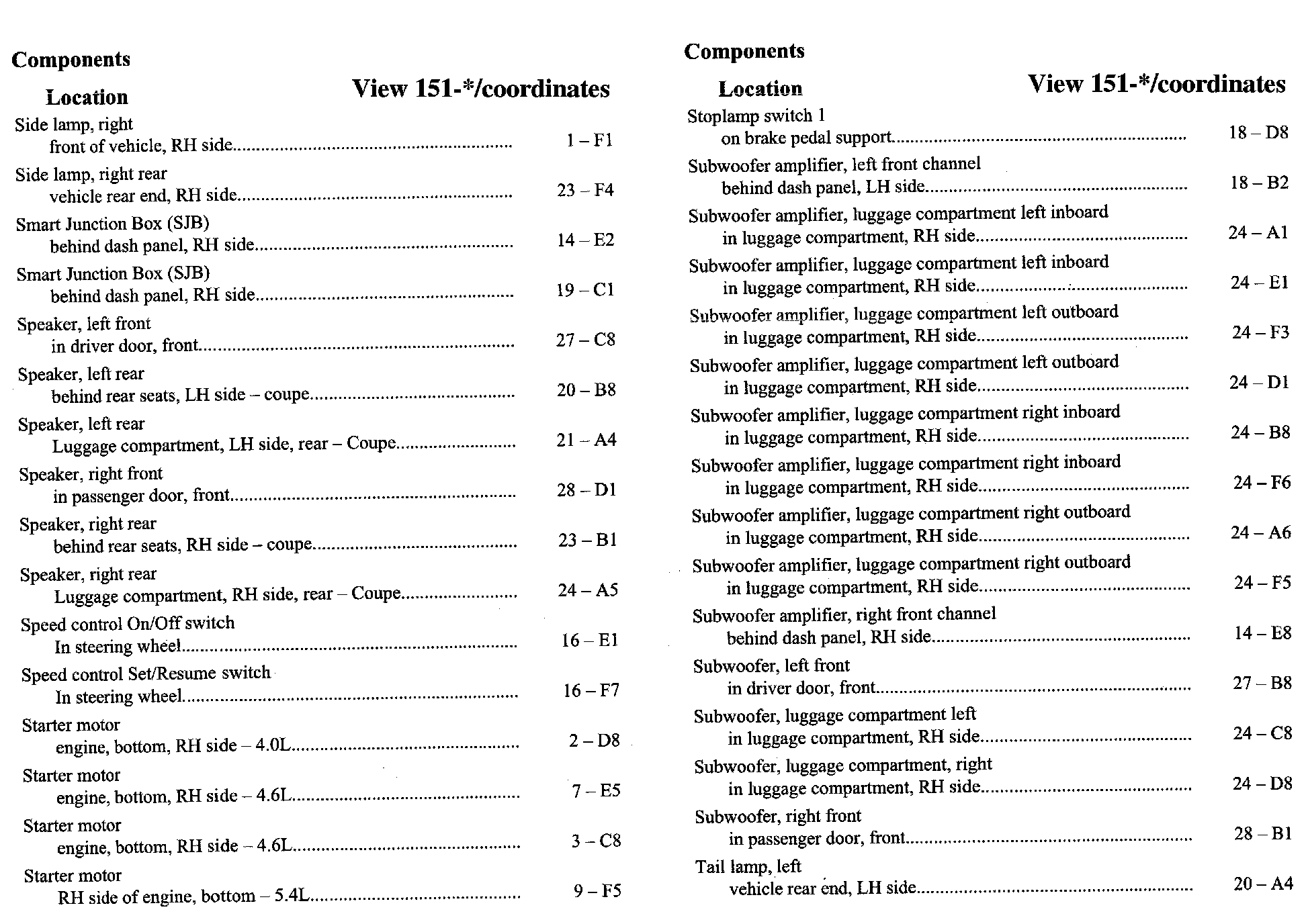

Component Location Index

PLEASE NOTE: If a link on the Component Location Index to a View is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.

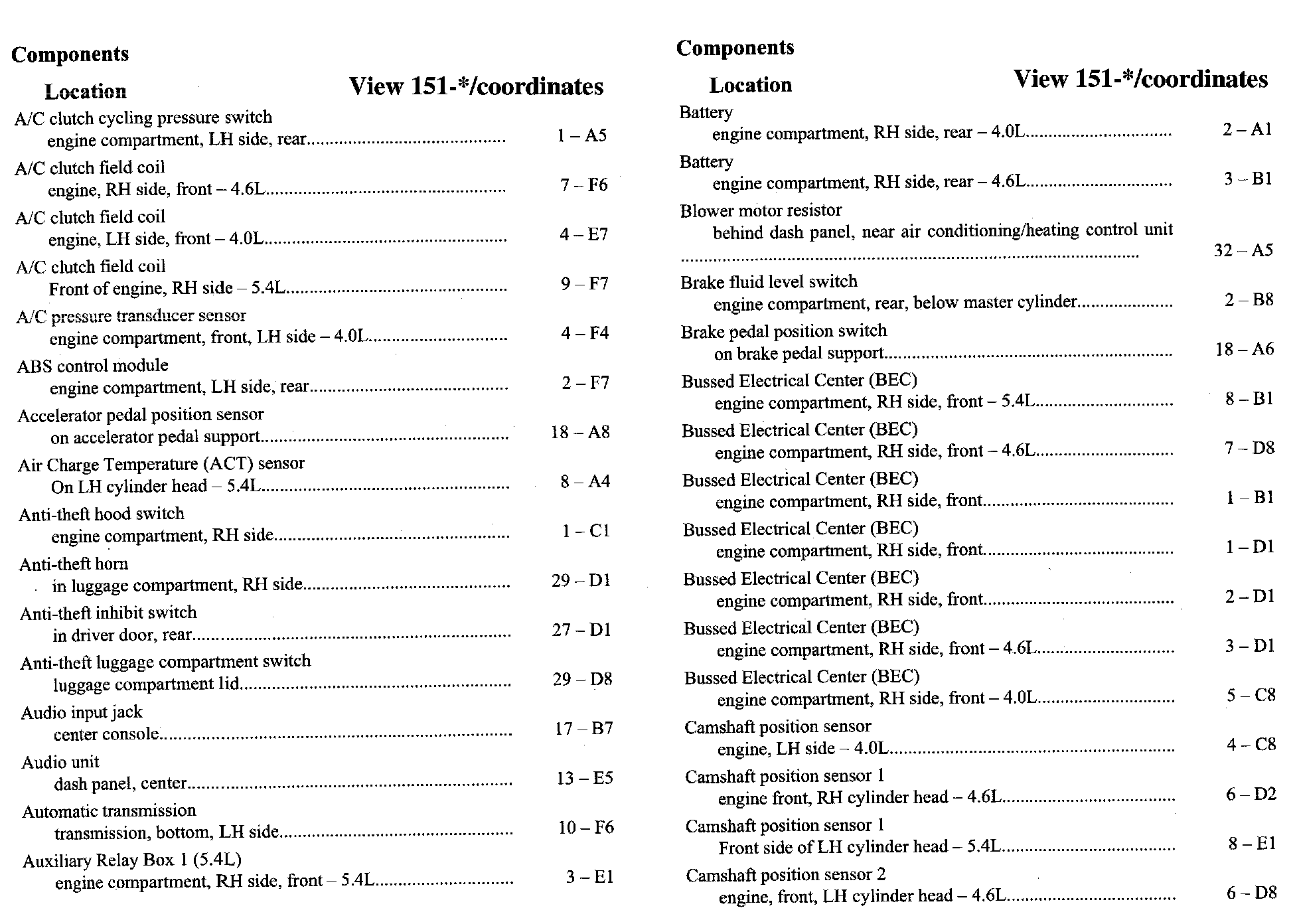

A/C-Ca:

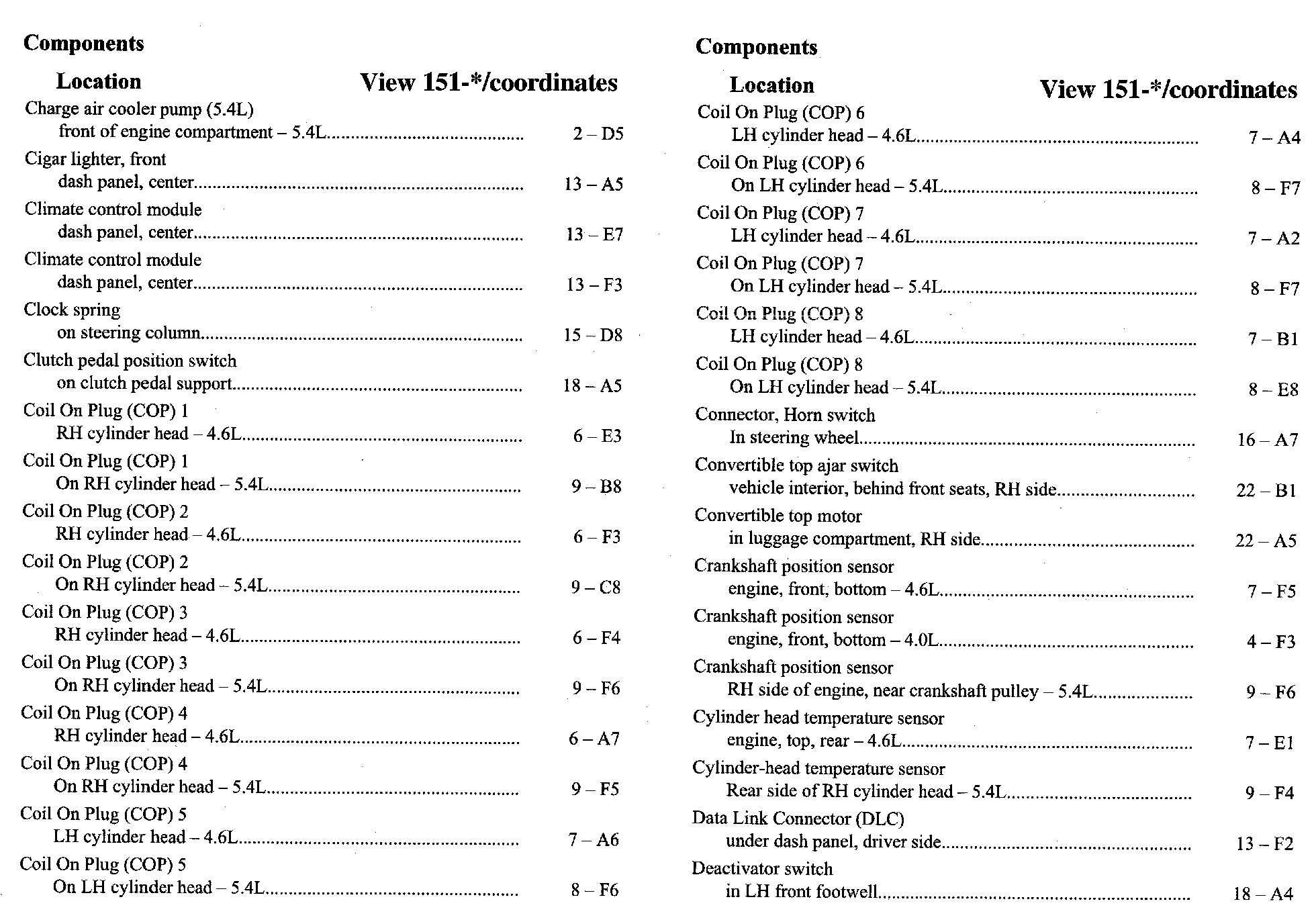

Ch-De:

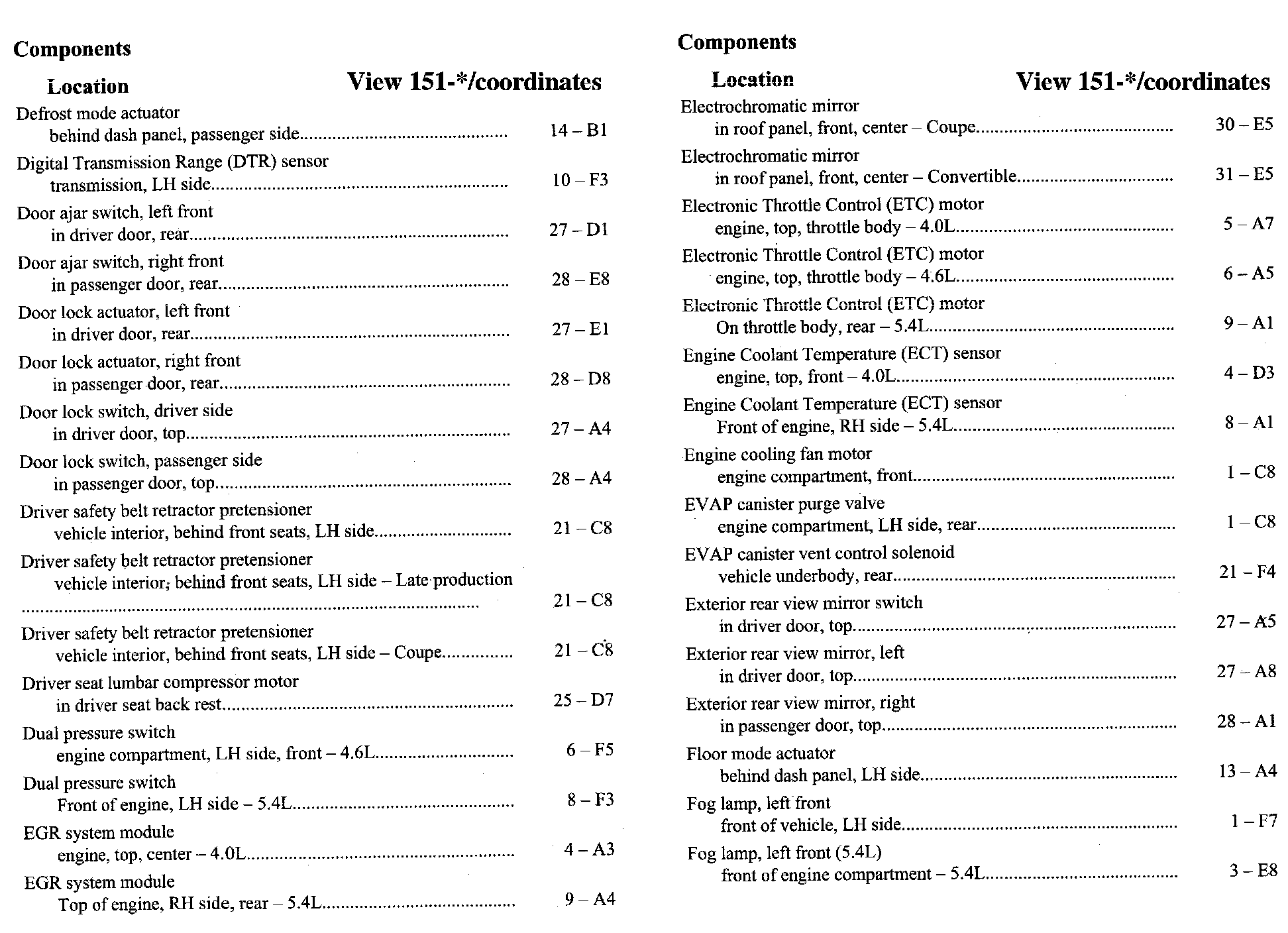

De-Fo:

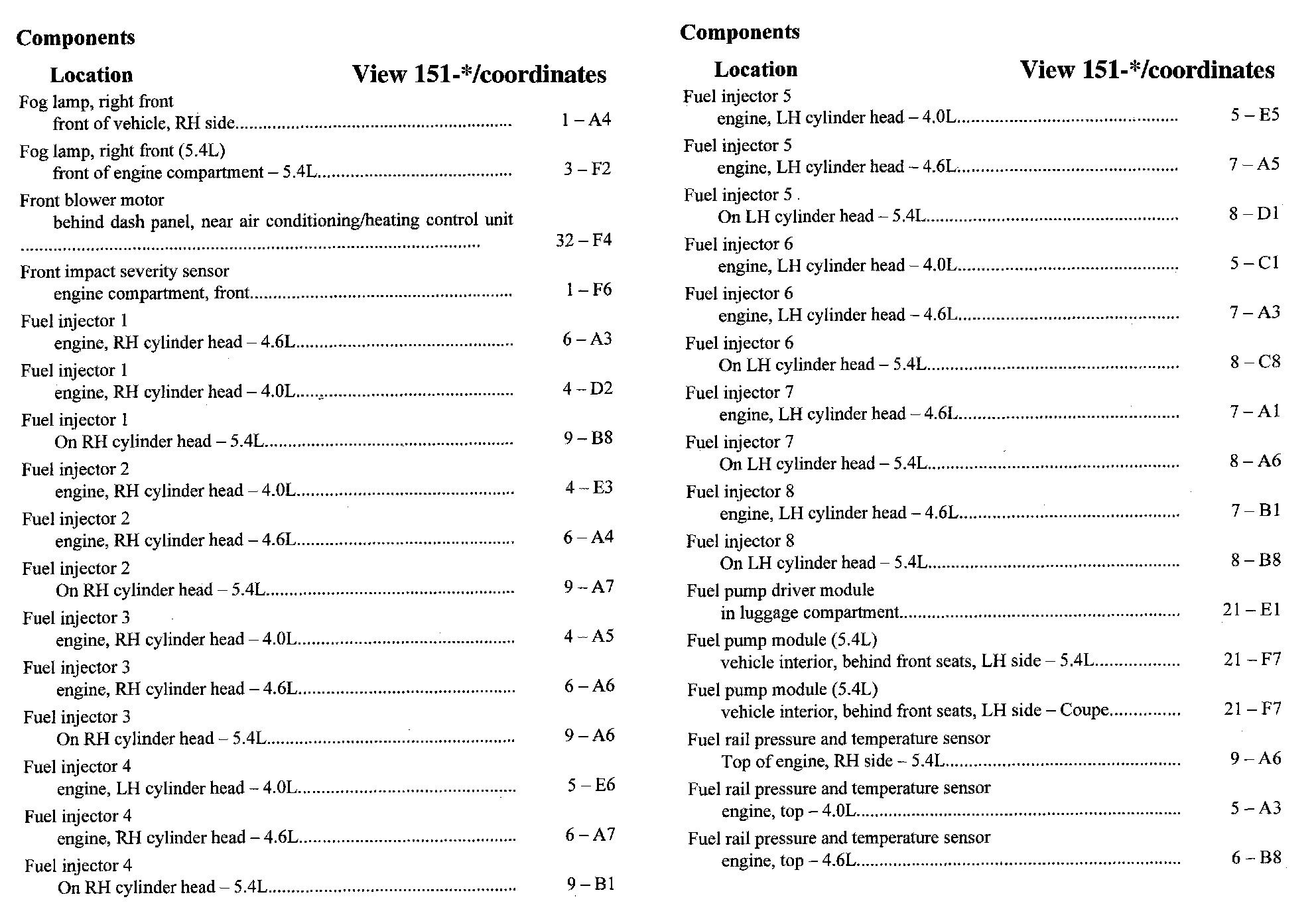

Fo-Fu:

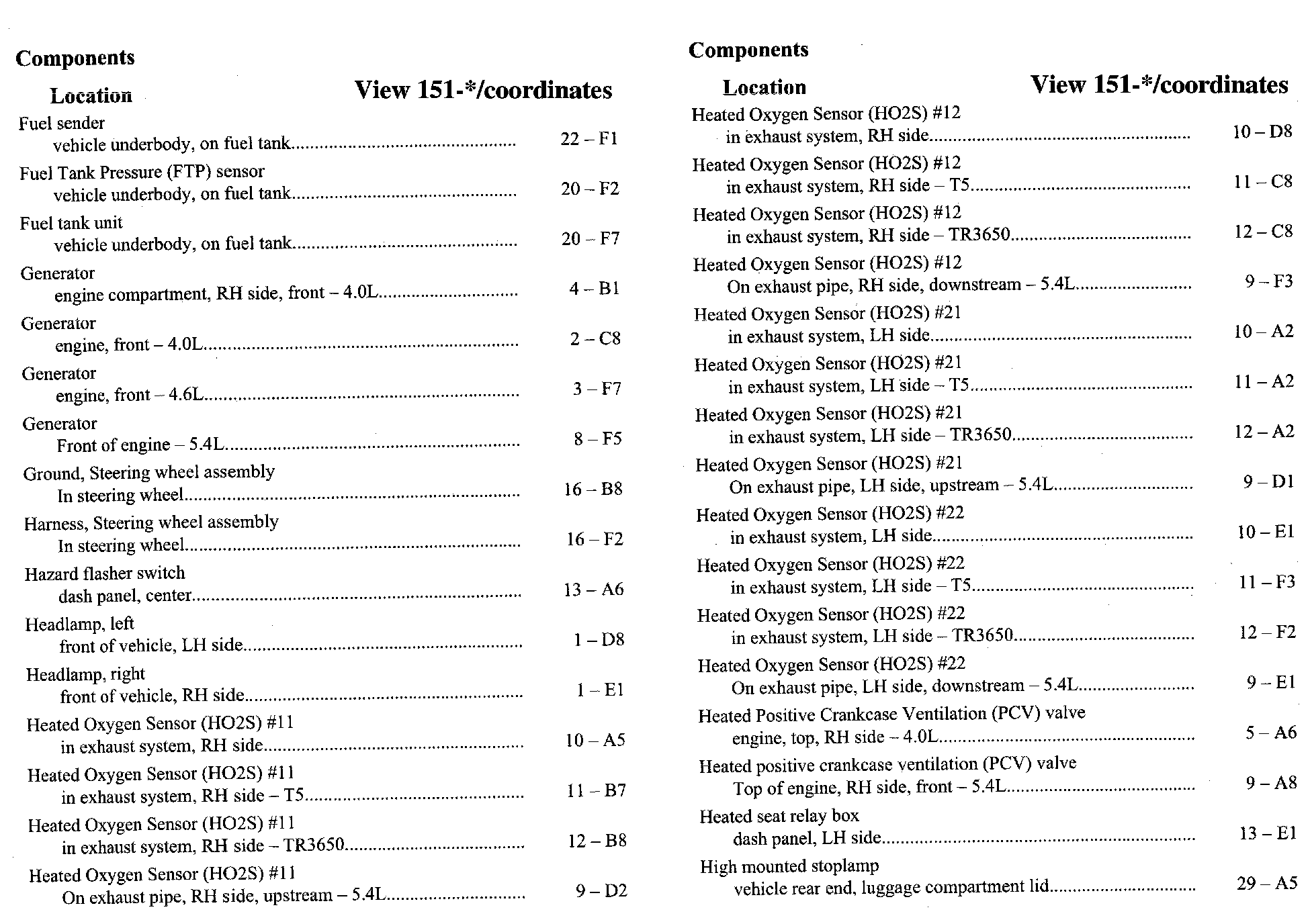

Fu-Hi:

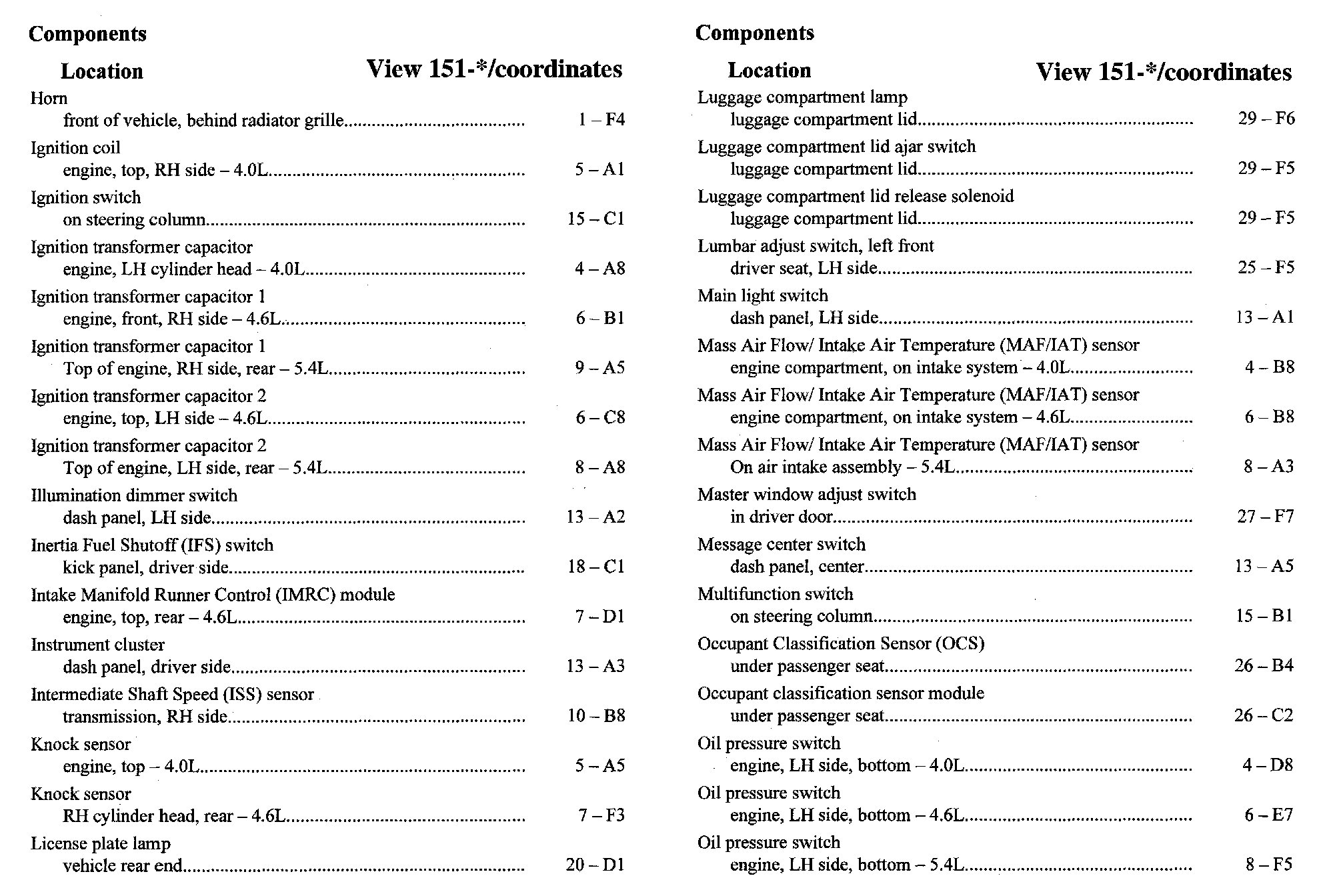

Ho-Oi:

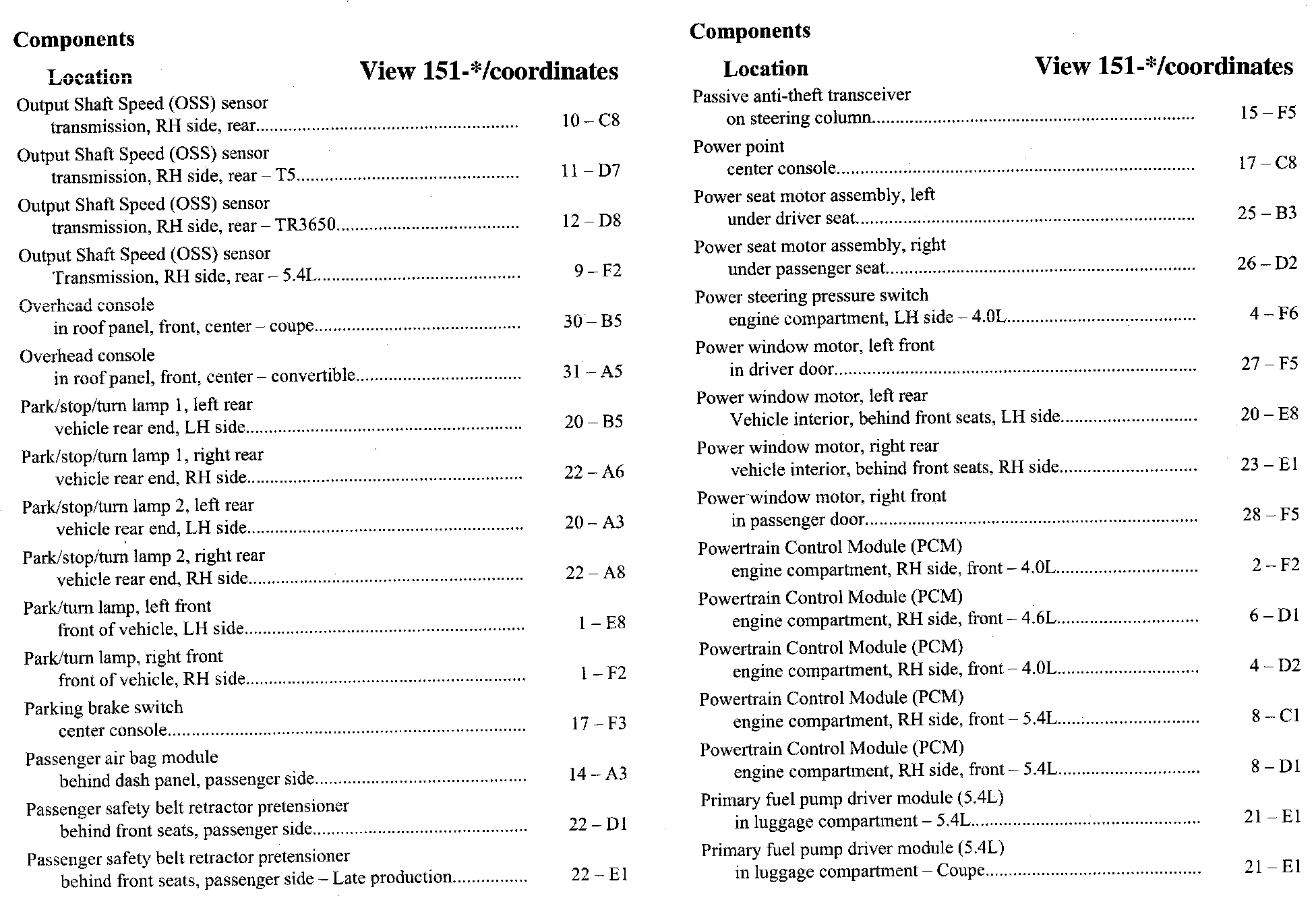

Ou-Pr:

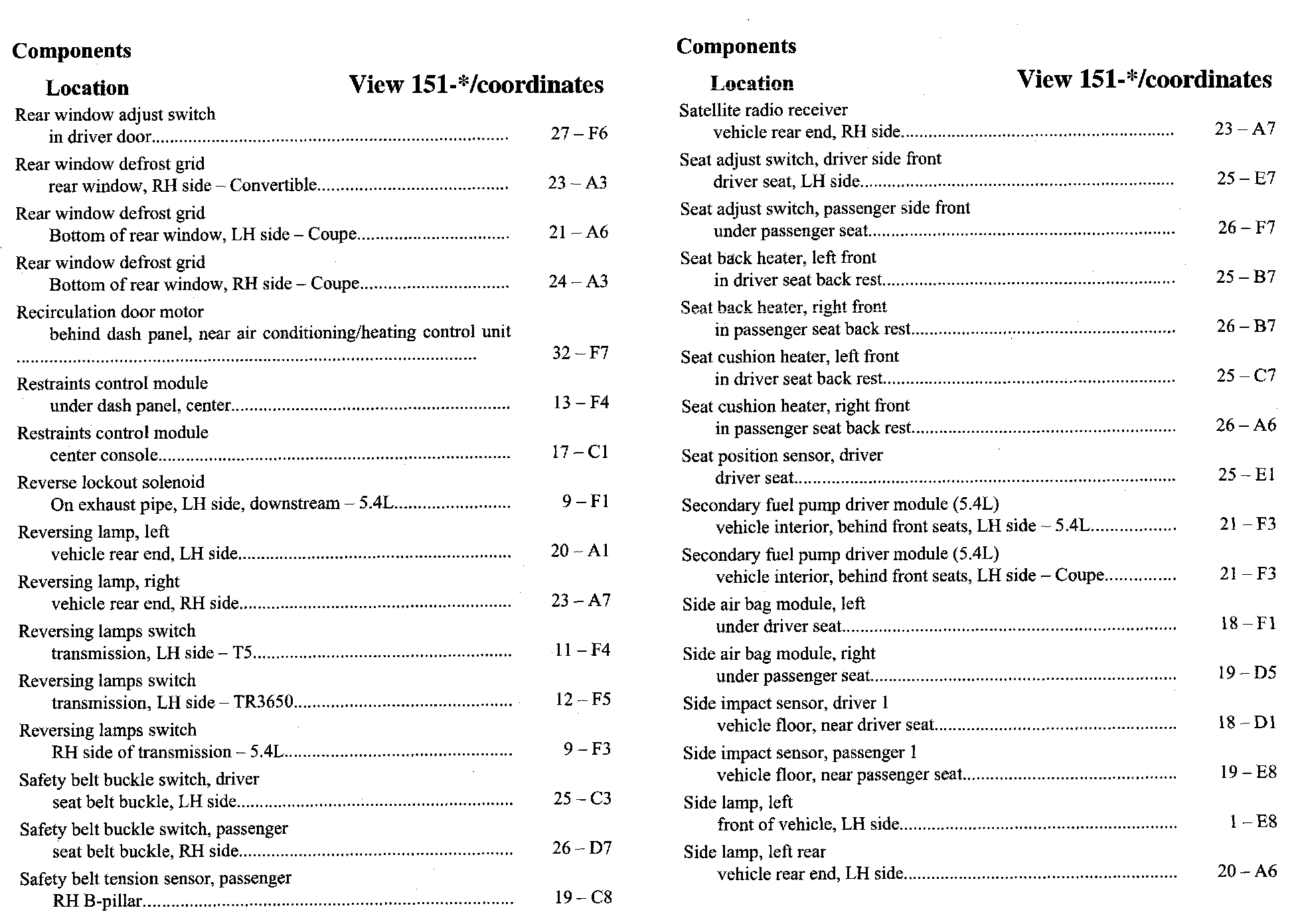

Re-Si:

Si-Ta:

Ta-Wi:
