Thermostat, Engine Cooling

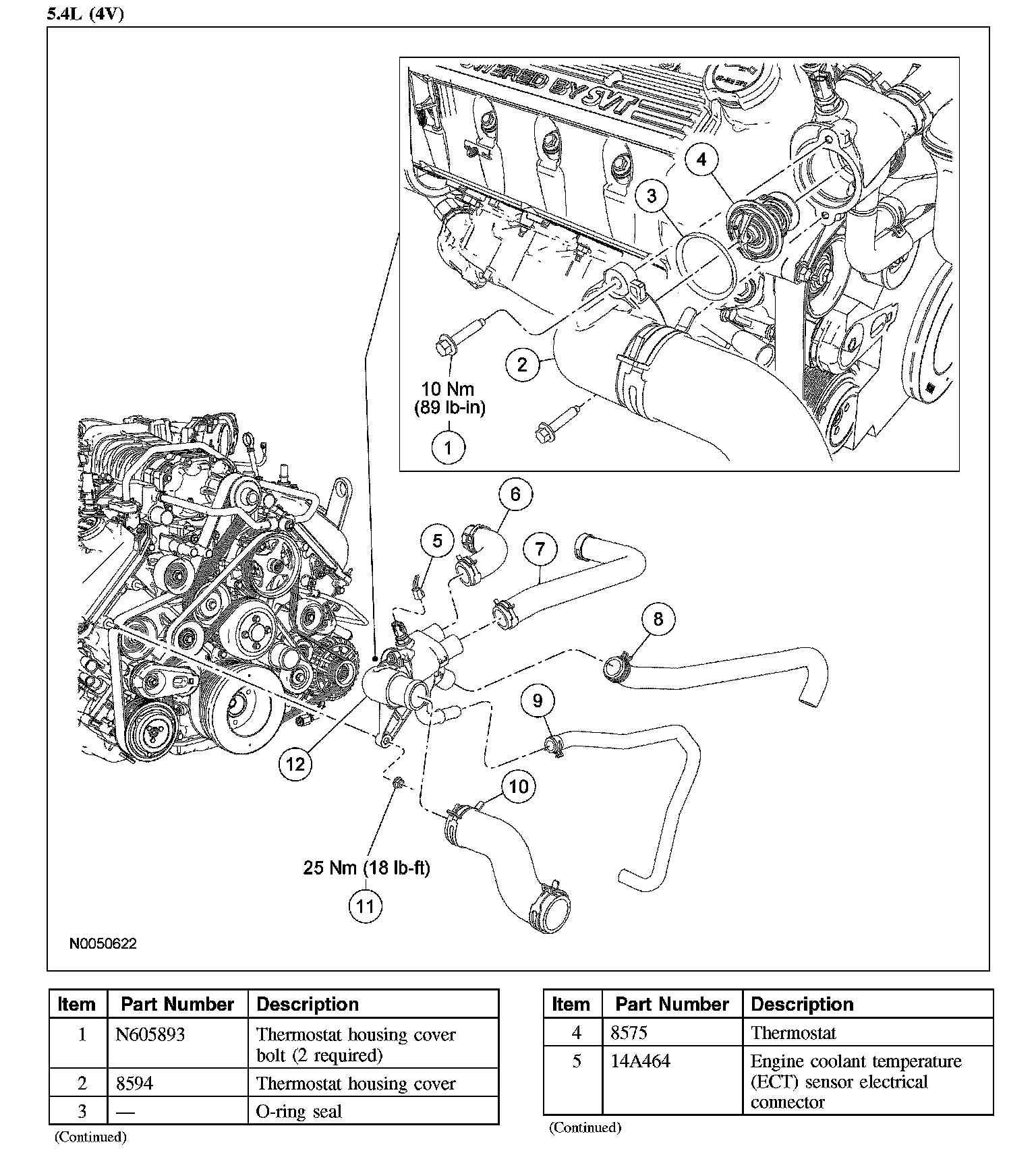

Thermostat and Thermostat Housing - Exploded View 5.4L (4V):



Thermostat and Thermostat Housing - Exploded View 5.4L (4V):
