Camshaft Position Sensor: Service and Repair

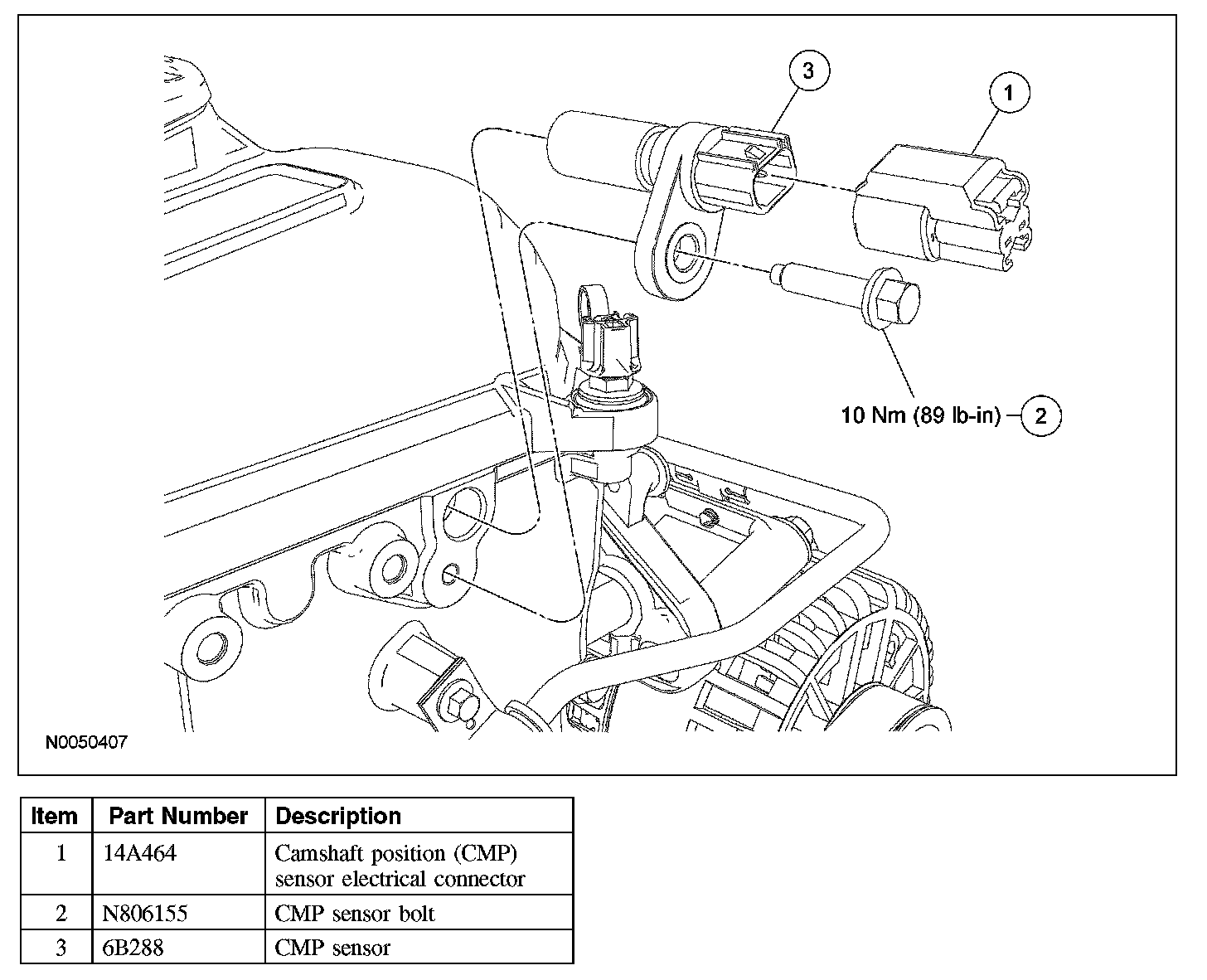

CAMSHAFT POSITION (CMP) SENSOR







Removal and Installation
1. Disconnect the battery ground cable.
2. Disconnect the CMP sensor electrical connector.
3. Remove the bolt and the CMP sensor.
- To install, tighten to 10 Nm (89 lb-in).

4. To install, reverse the removal procedure.
