General Specifications

General Specifications:

General Specifications - Cylinder Head and Valve Train (Part 1):

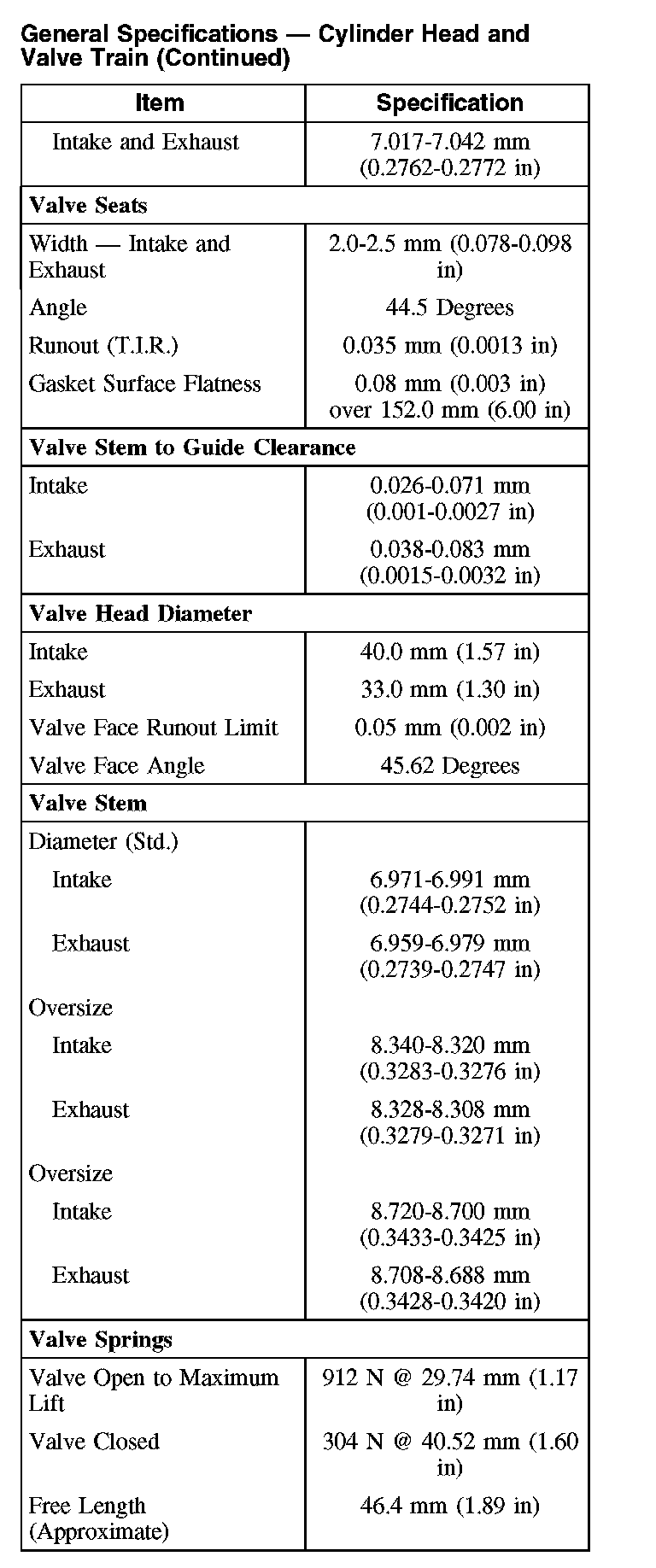

General Specifications - Cylinder Head and Valve Train (Part 2):

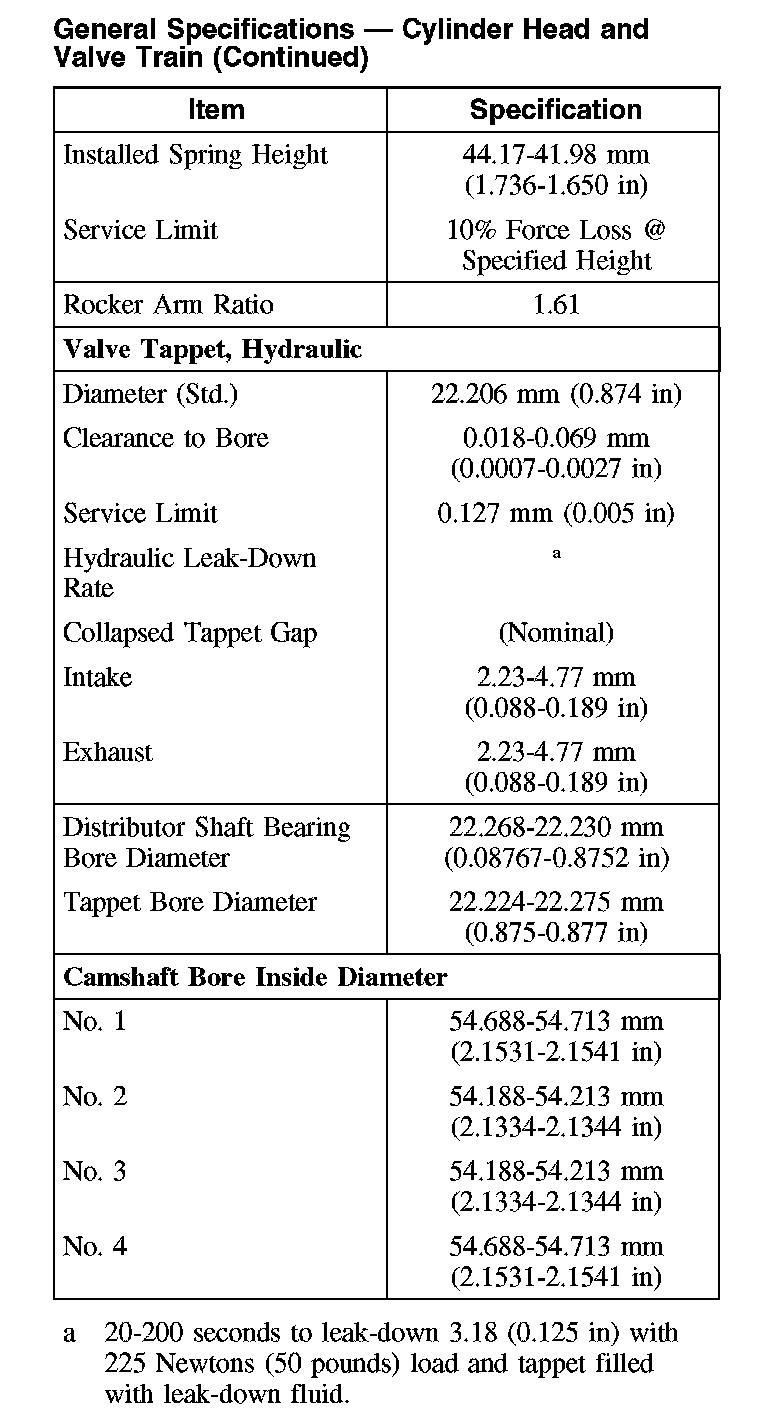

General Specifications - Cylinder Head and Valve Train (Part 3):

General Specifications - Camshaft (Part 1):

General Specifications - Camshaft (Part 2):

General Specifications - Cylinder Block:

General Specifications - Crankshaft and Flywheel (Part 1):

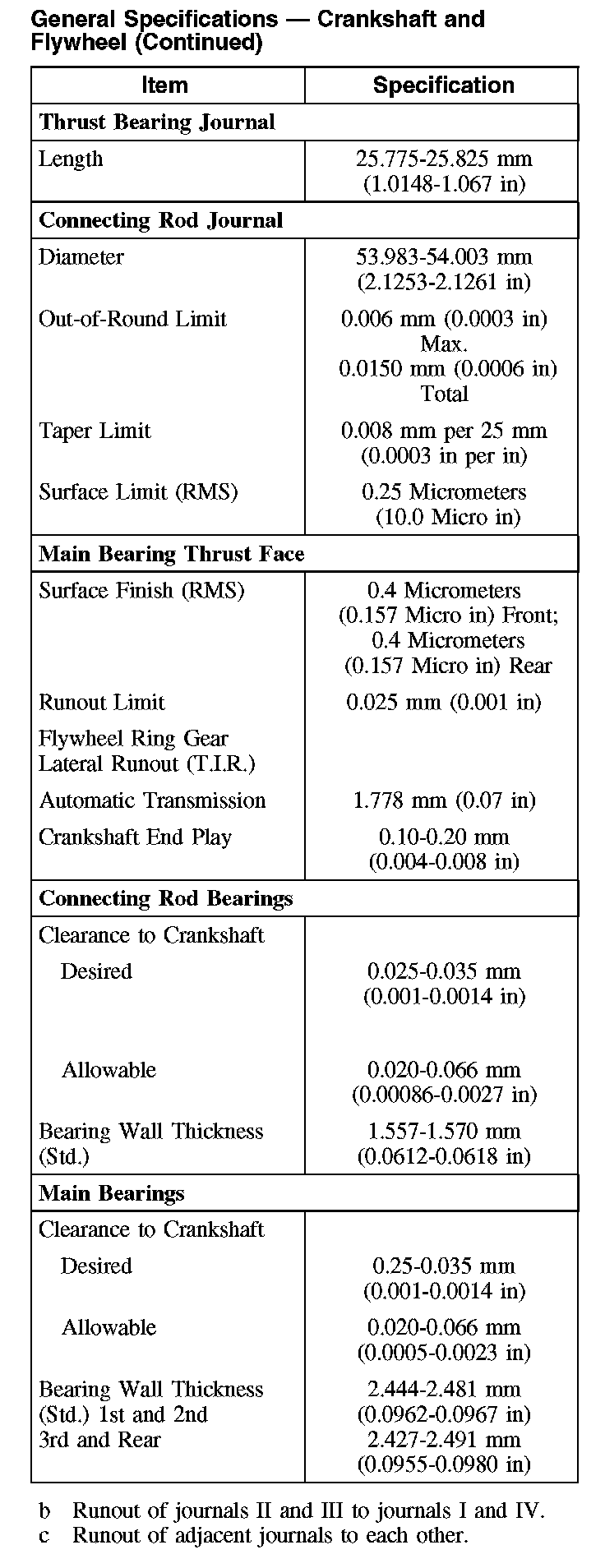

General Specifications - Crankshaft and Flywheel (Part 2):

General Specifications - Connecting Rod, Piston and Rings:

General Specifications - Piston (Part 1):

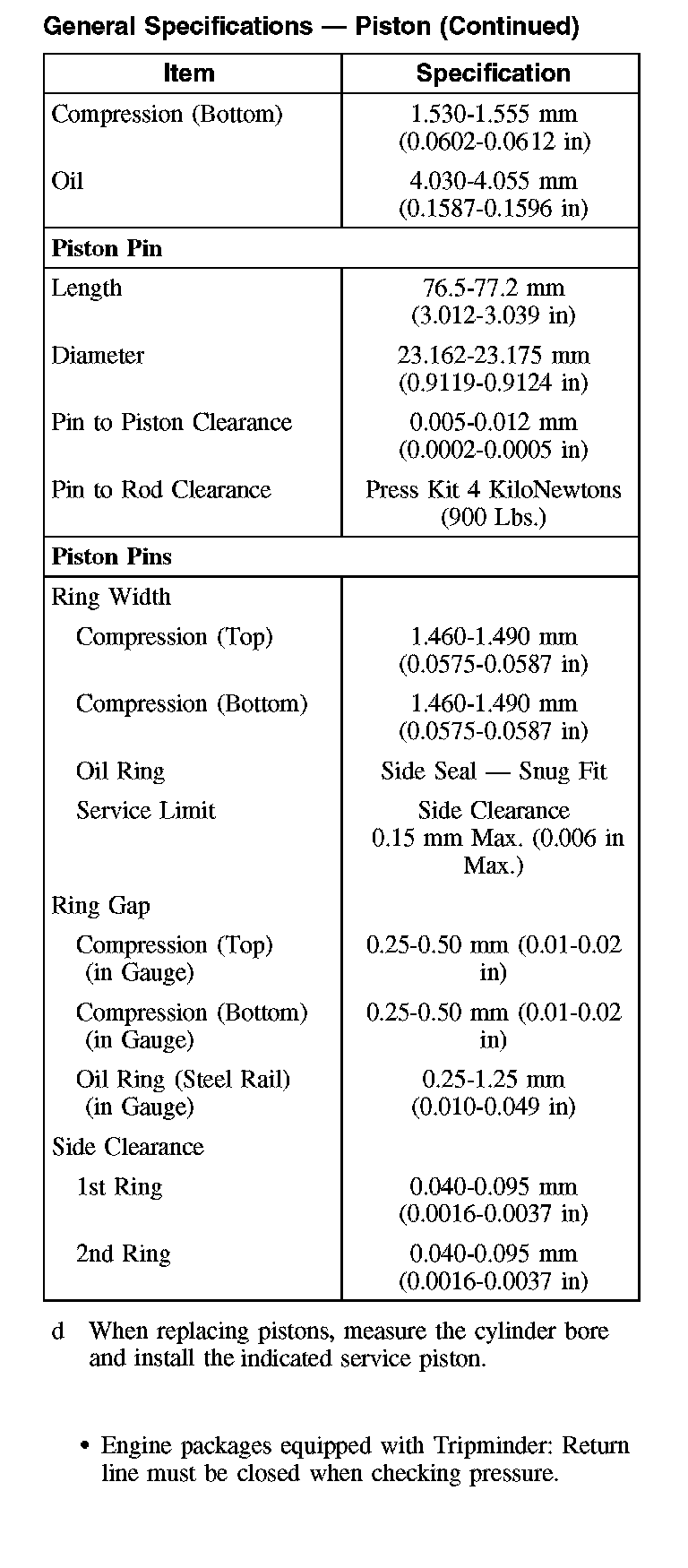

General Specifications - Piston (Part 2):

General Specifications - Lubrication System:
