Removal And Installation: Radiator: Notes

Special Tools

Illustration	Tool Name	Tool Number
	Disconnect Tool, Spring Lock Coupling	310-S039 (T90T-9550-S)

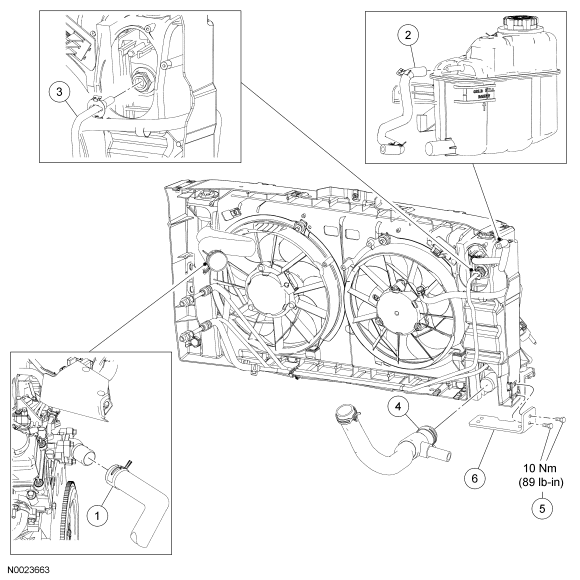

Fig 1: Exploded View Of Radiator With Torque Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	8B274	Upper radiator hose
2	8276	Degas bottle-to-radiator hose
3	7A030	Transmission cooler tube
4	8B273	Lower radiator hose
5	N605903	Radiator support bracket bolts (4 required)
6	-	Radiator support bracket

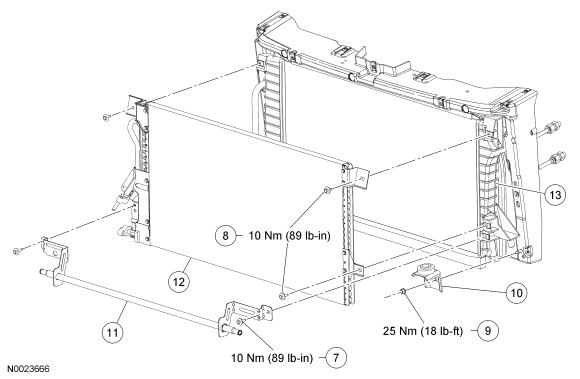

Fig 2: Exploded View Of Radiator With Torque Specifications (2 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
7	N606676	Power steering (PS) cooler bolt (2 required)
8	N606675	Air conditioning (A/C) condenser bolts (4 required)
9	N801310	Radiator support bracket nut (2 required)
10	8B445	Radiator support bracket (2 required)
11	3D746	PS cooler
12	19710	A/C condenser
