Idle Air Control (IAC) Valve: Notes

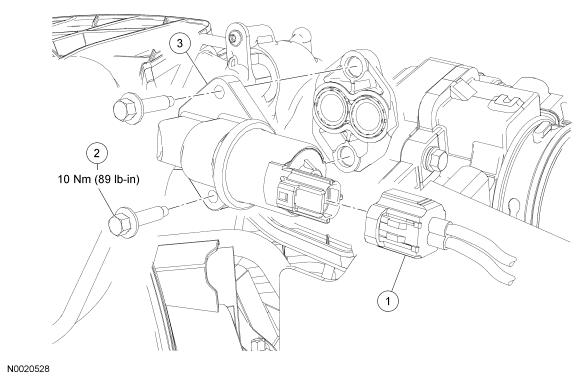

Fig 1: Exploded View Of Idle Air Control IAC Valve With Torque Specifications
GF0019776Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Idle air control (IAC) solenoid electrical connector
2 W500214 IAC solenoid bolt (2 required)
3 9F715 IAC solenoid
