Driver Air Bag Module: Installation

WARNING: This page is about a different car, the 2005 Mercury Sable and 2005 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the driver air bag module to the steering wheel.
      CAUTION: The clockspring electrical connectors are unique and cannot be reversed when connected to the driver air bag module. Match the electrical connector key to the keyway in the driver air bag module. Do not force the electrical connectors into the driver air bag module.
    1. Connect the driver air bag module electrical connectors as noted during removal.
    2. Position the driver air bag module to the steering wheel.

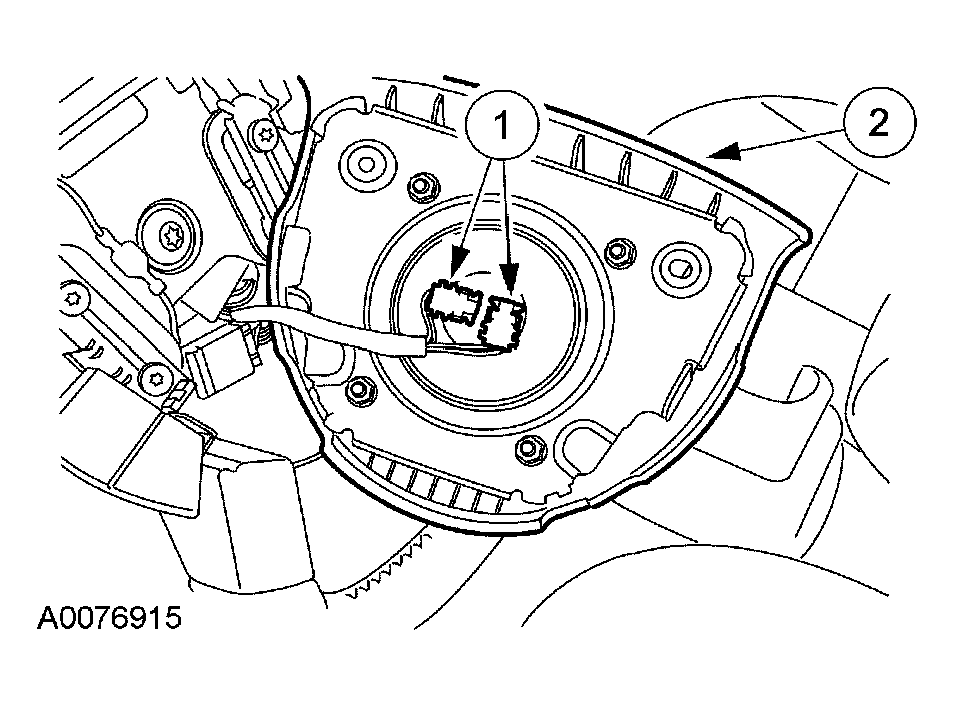

    Fig 1: Installing Driver Air Bag Module
    G03959591Courtesy of FORD MOTOR CO.
  2. Install the two driver air bag module bolts (one shown).

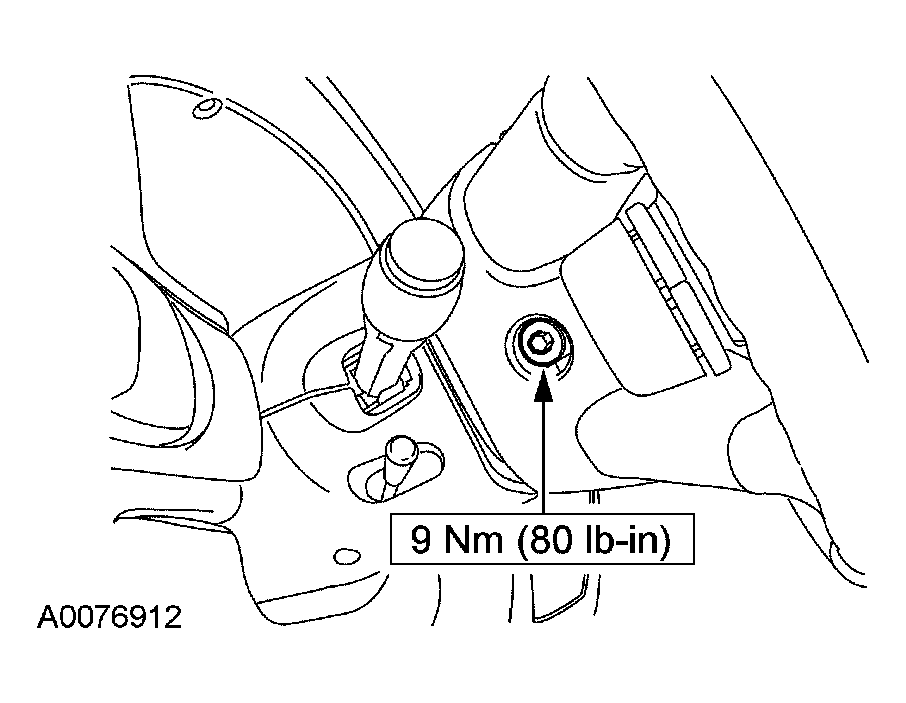

    Fig 2: Installing Driver Air Bag Module Bolts - With Torque Specification
    G03959592Courtesy of FORD MOTOR CO.
  3. Install the two steering wheel back cover plugs (one shown).

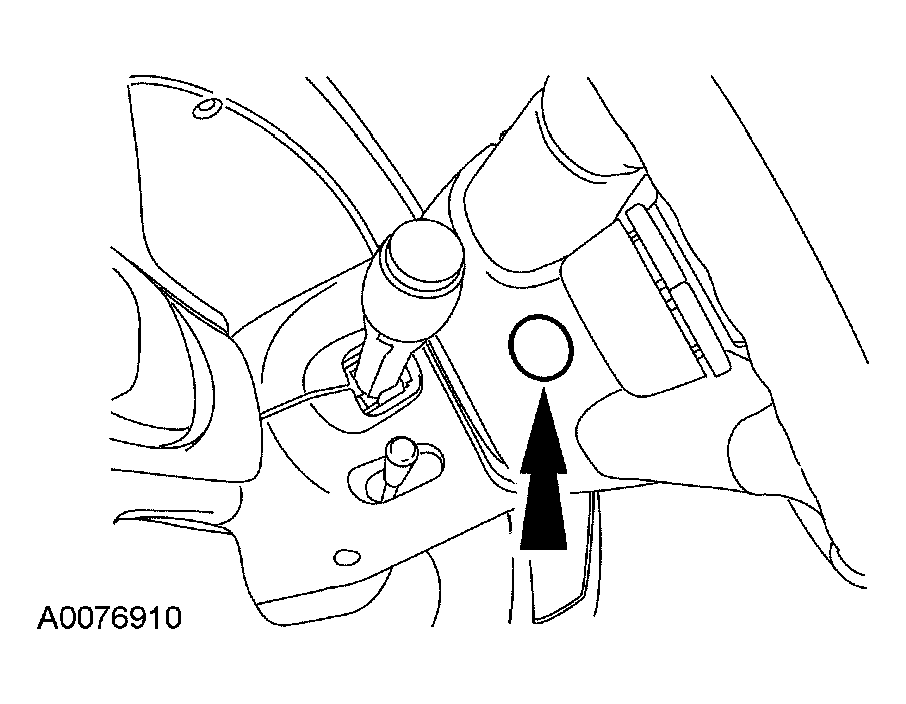

    Fig 3: Installing Steering Wheel Back Cover Plugs
    G03959565Courtesy of FORD MOTOR CO.
  4. Repower the system. For additional information, Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
