Test F: The Doors Do Not Lock/Unlock Using The Remote Keyless Entry Transmitter

Pinpoint Test F: The Doors Do Not Lock/Unlock Using The Remote Keyless Entry Transmitter

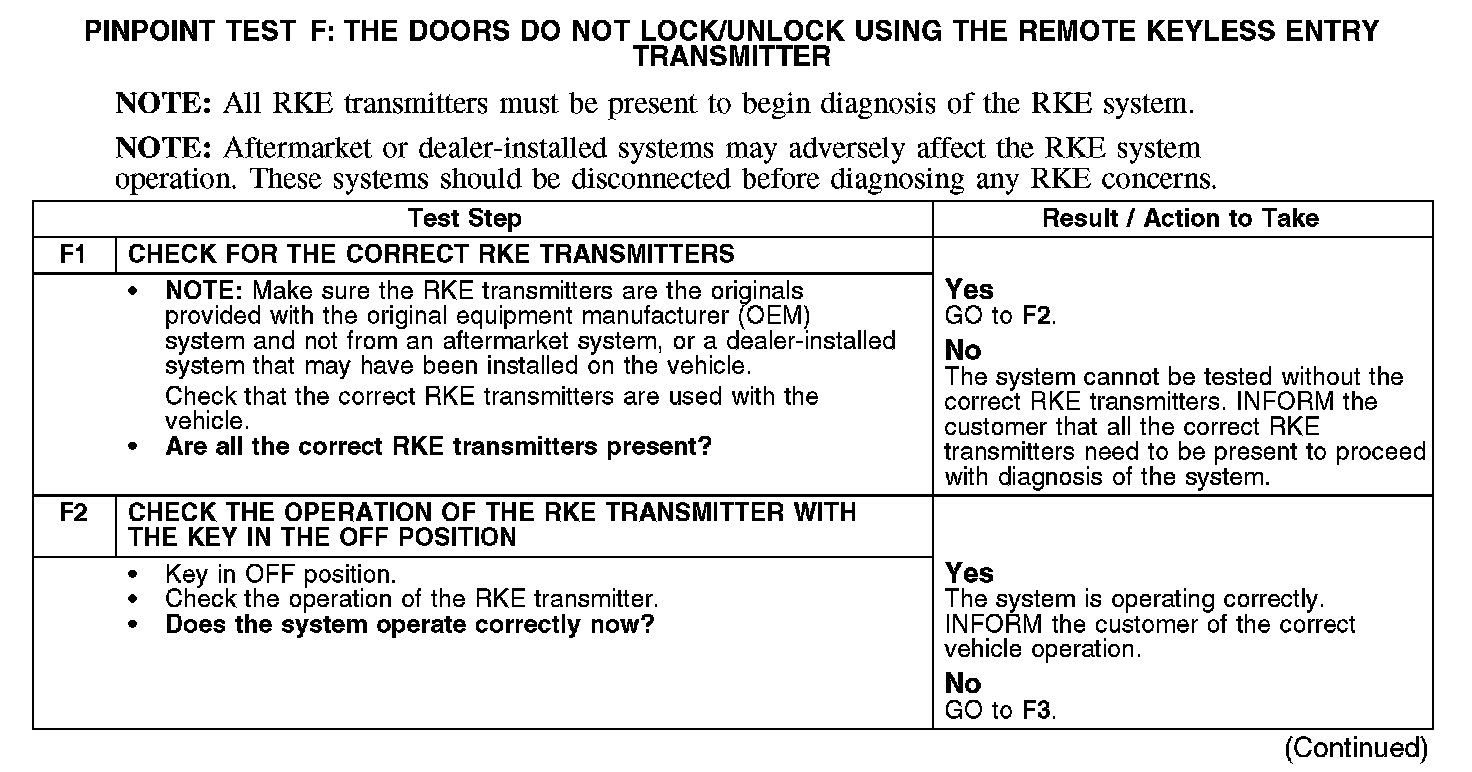

F1-F2:

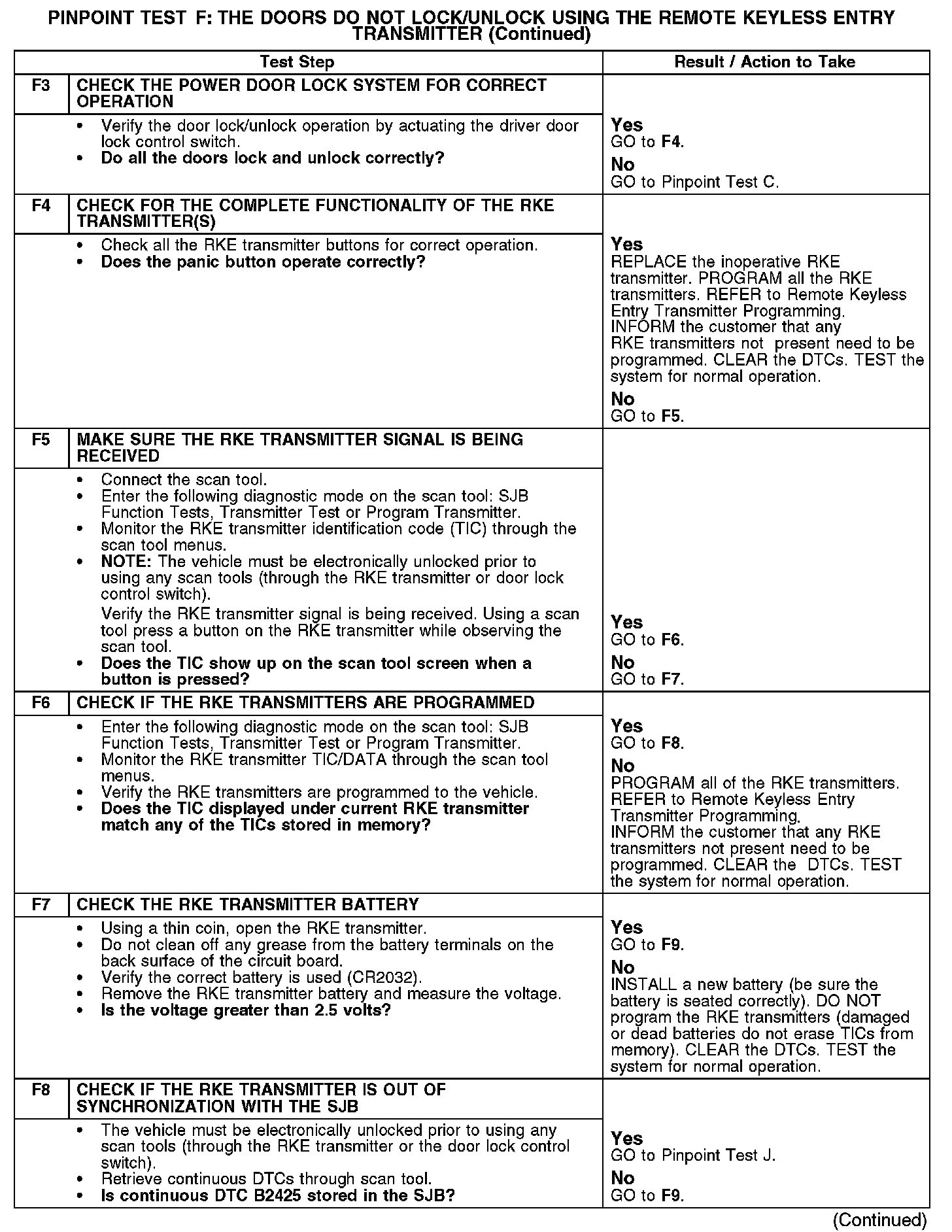

F3-F8:

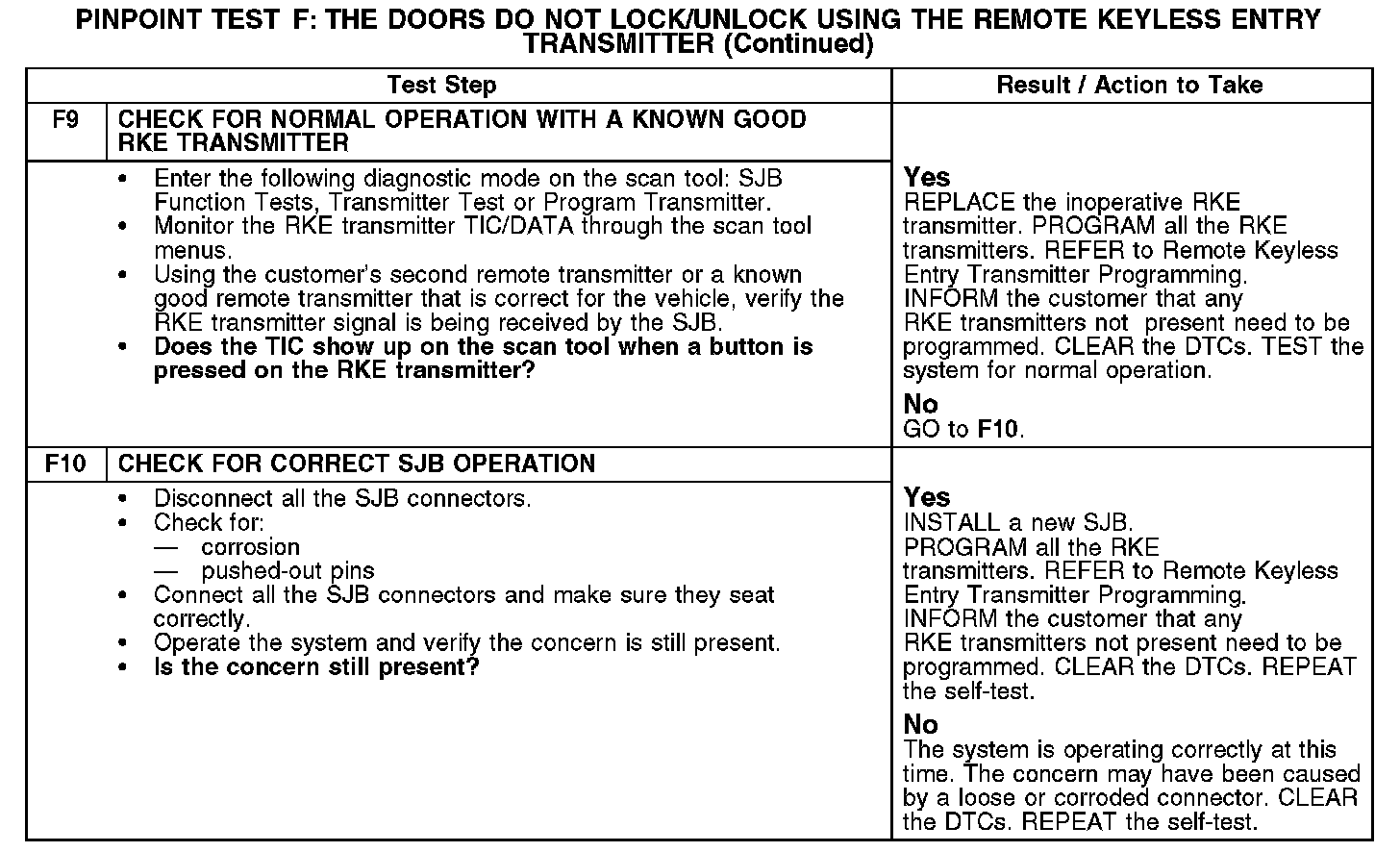

F9-F10:

Normal Operation
Remote locking and unlocking of the doors is accomplished by the smart junction box (SJB) receiving a command message from the remote keyless entry (RKE) transmitter through the SJB external antenna. The SJB processes the command and sends a signal directly to the door lock actuators.

Possible Causes
- SJB external antenna
- RKE transmitter battery
- RKE transmitter programming
- RKE transmitter
- Aftermarket systems
- High power devices
- TV/radio transmission towers
- SJB
