Brake Switch (Cruise Control): Service and Repair

SPEED CONTROL DEACTIVATOR SWITCH







Removal

1. CAUTION:
- Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water.
- Make sure the master cylinder reservoir cap is secure before performing this procedure.
- Do not allow any foreign matter to enter the master cylinder port once the deactivator switch is removed.

Disconnect the battery.

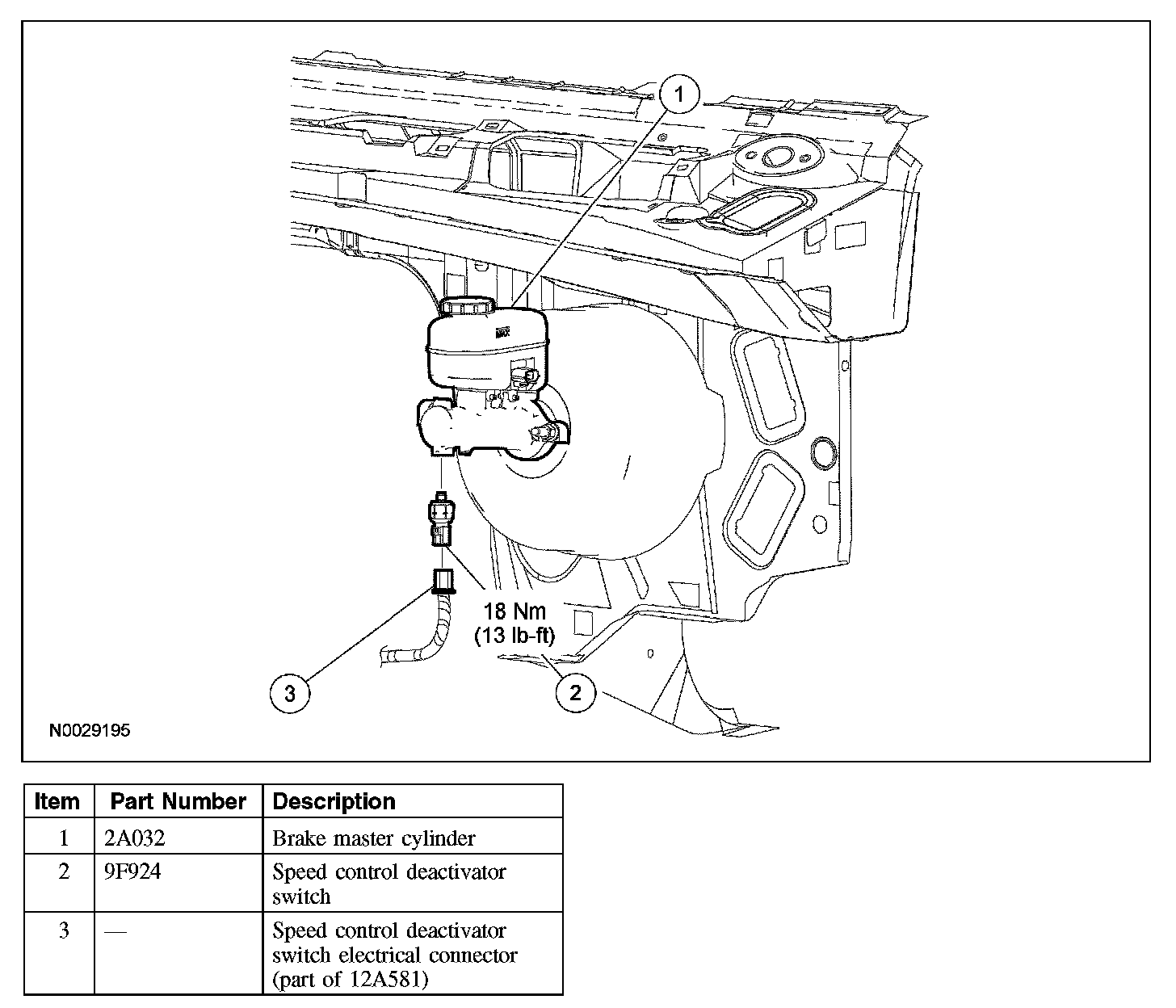

2. Remove the deactivator switch.
- Disconnect the electrical connector.

Installation

1. CAUTION: Do not allow brake fluid to contact the electrical connector.

Install the deactivator switch.
- Add a few drops of brake fluid to the fluid port on the threaded side of the switch before installing it.
- Tighten to 18 Nm (13 lb-ft).
- Connect the electrical connector.







2. Check the master cylinder fluid level and adjust as necessary.
3. Connect the battery.
