Power Window Switch: Service and Repair

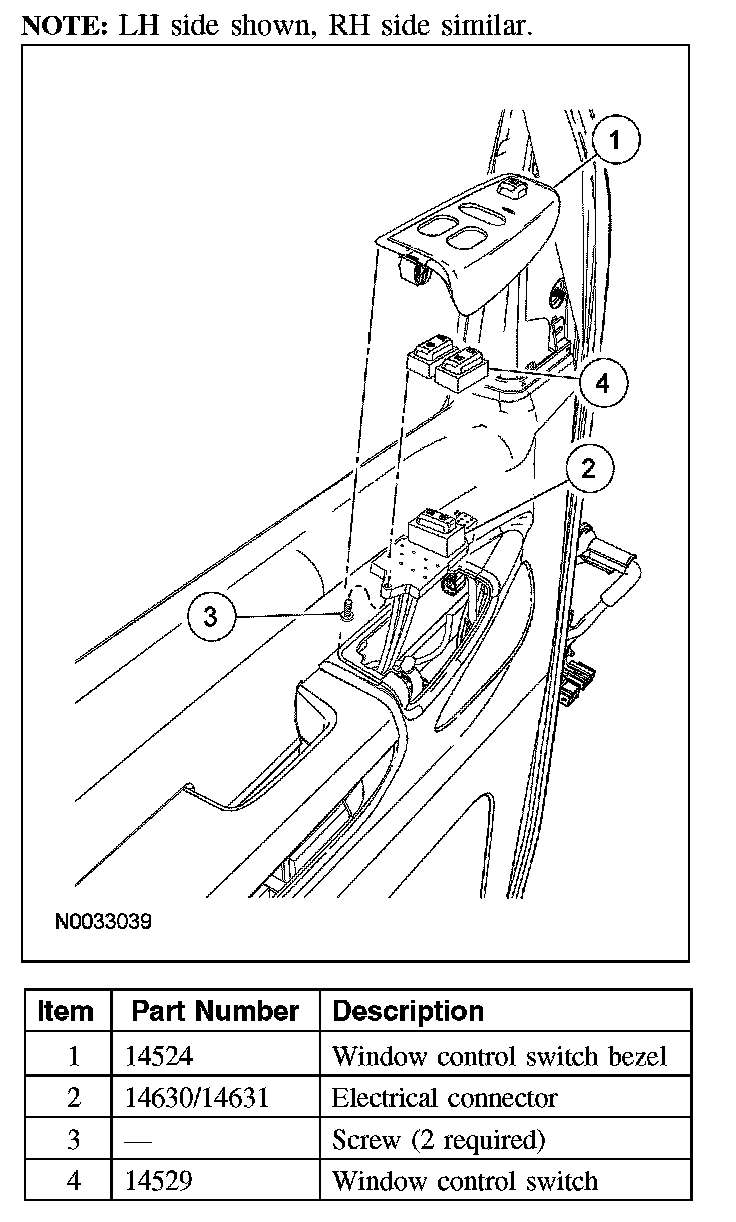

WINDOW CONTROL SWITCH







Removal and Installation
1. Remove the window control switch bezel.







2. Remove the 2 screws.







3. Remove the window control switch







4. To install, reverse the removal procedure.
