Exhaust System

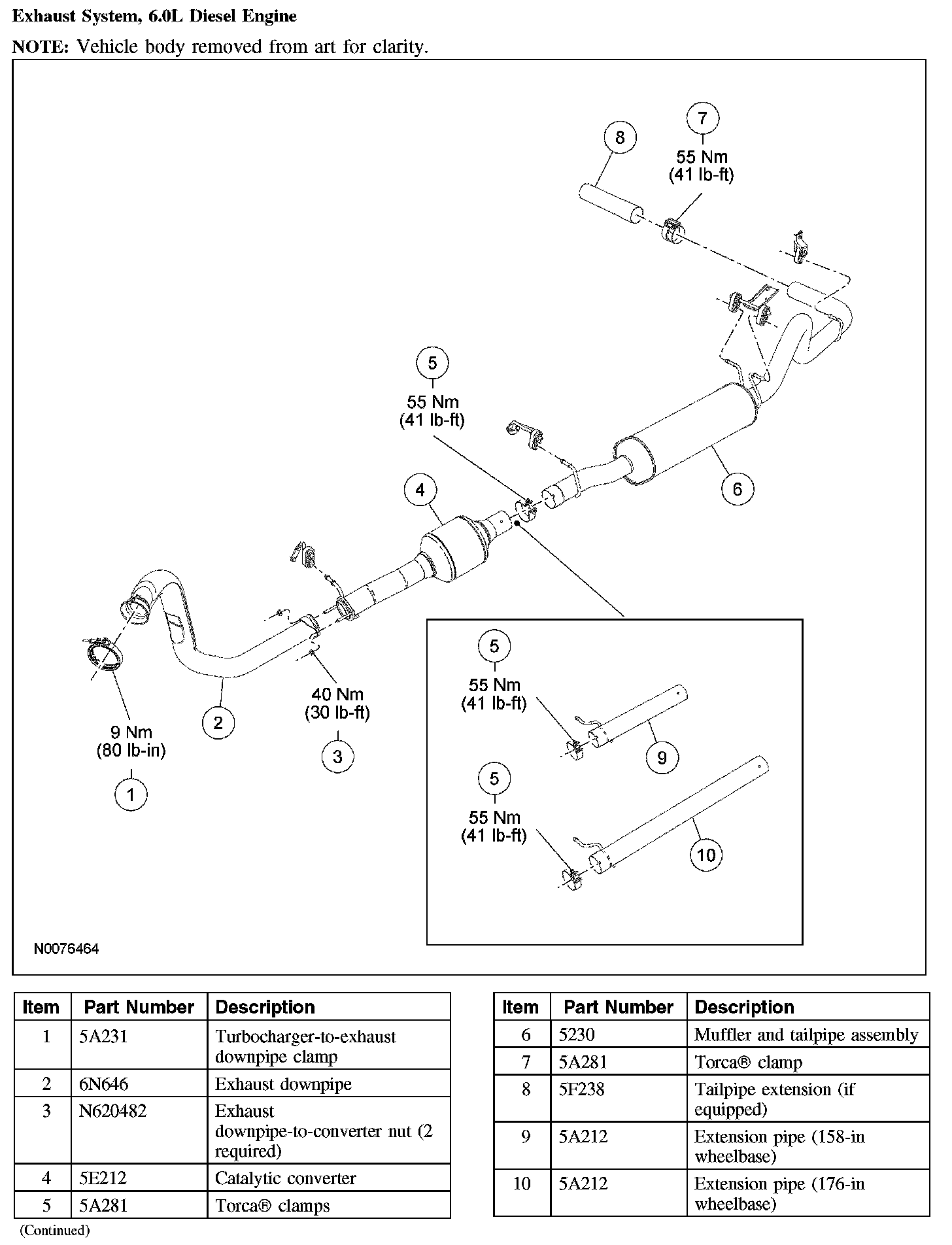

Exhaust System, (6.0L Diesel Engine)

Exhaust System - Exploded View, 6.0L Diesel Engine:
