Test A: Powertrain Control Module (PCM) Power Relay




TEST A: POWERTRAIN CONTROL MODULE (PCM) POWER RELAY

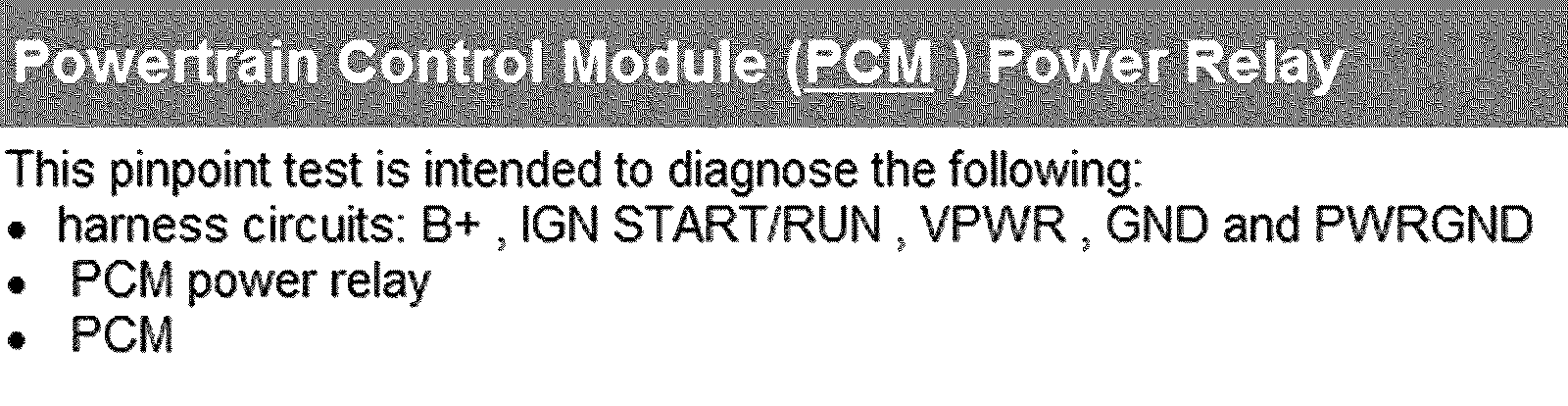

Pinpoint A: Introduction:

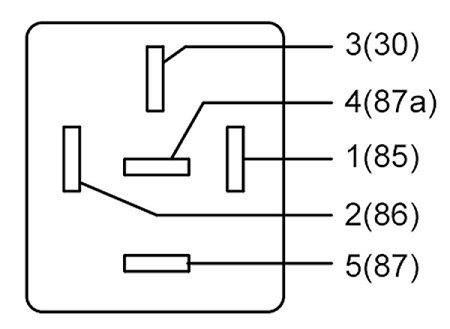

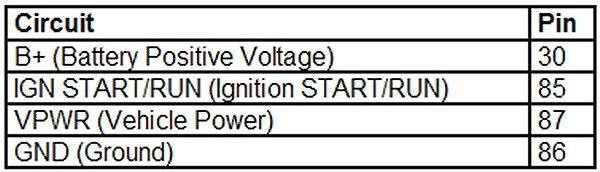

Relay Connector (1 Of 2):





Relay Connector (2 Of 2):

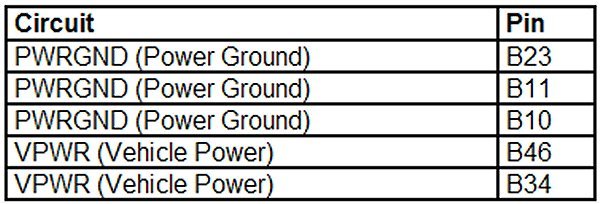

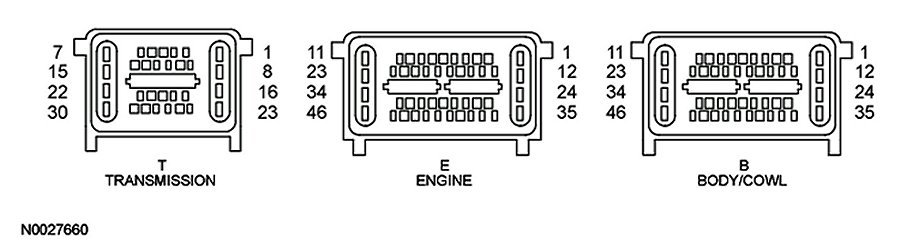

PCM Connector (1 Of 2):





PCM Connector (2 Of 2):

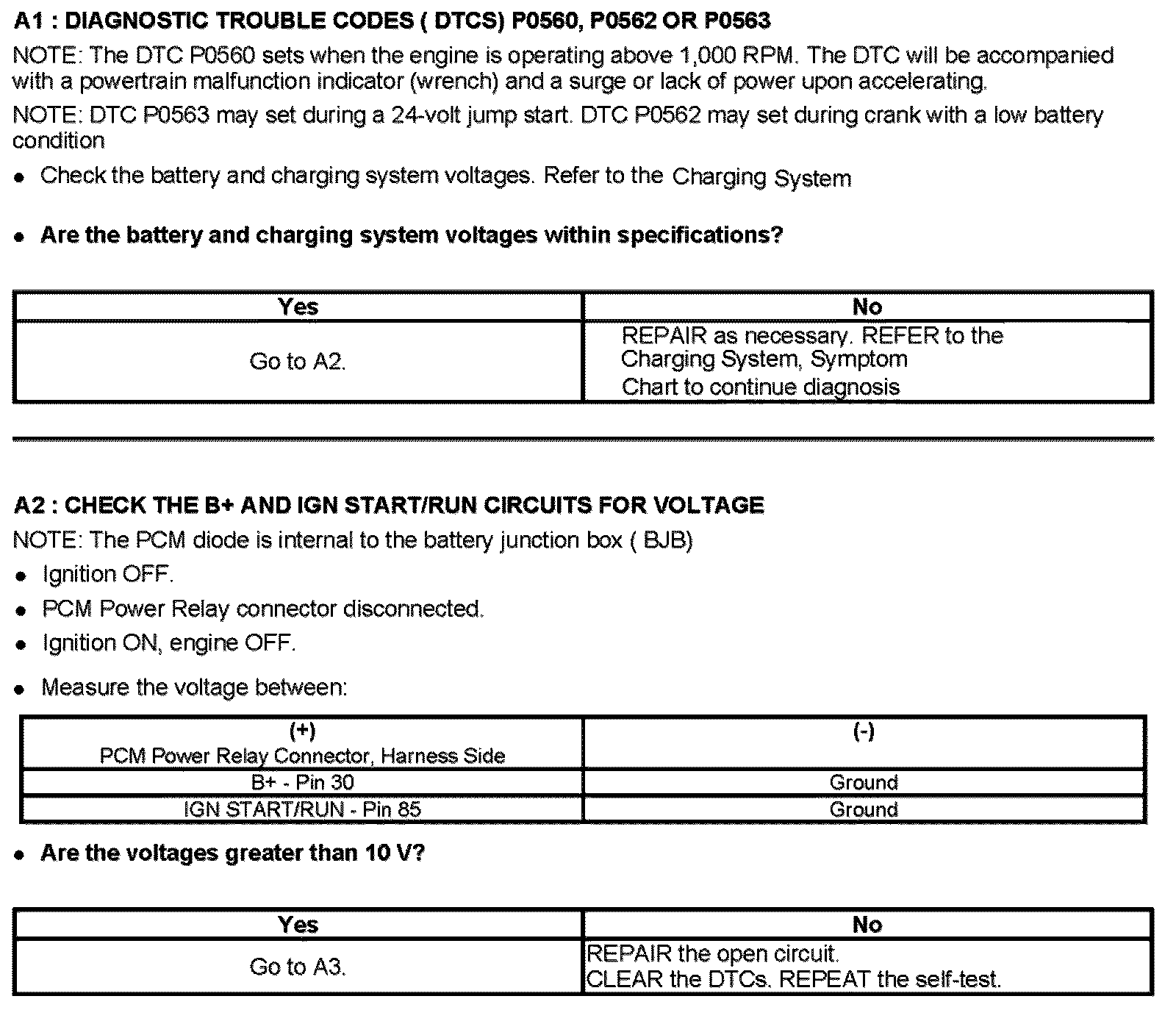

A1-A2:

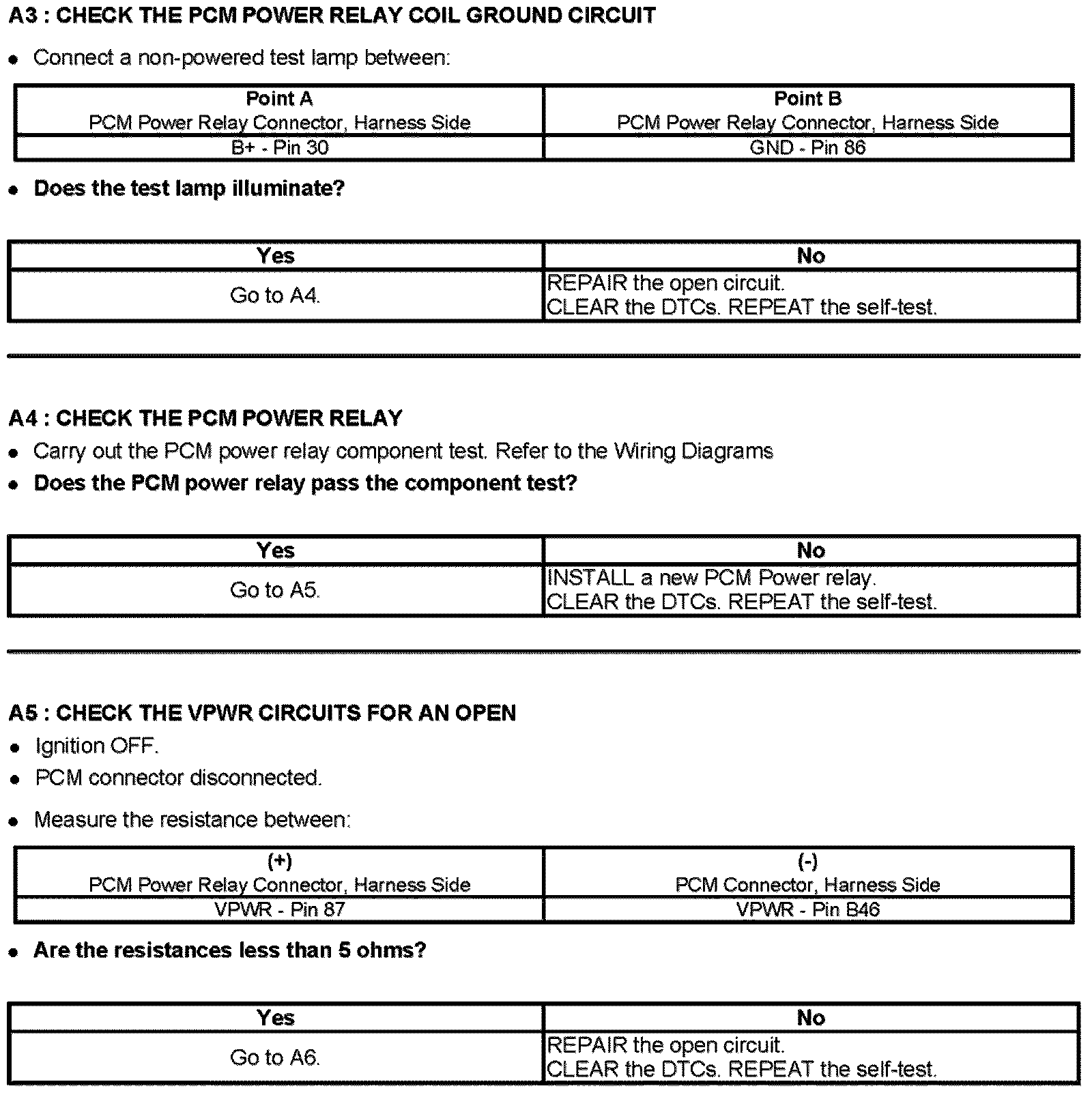

A3-A5:

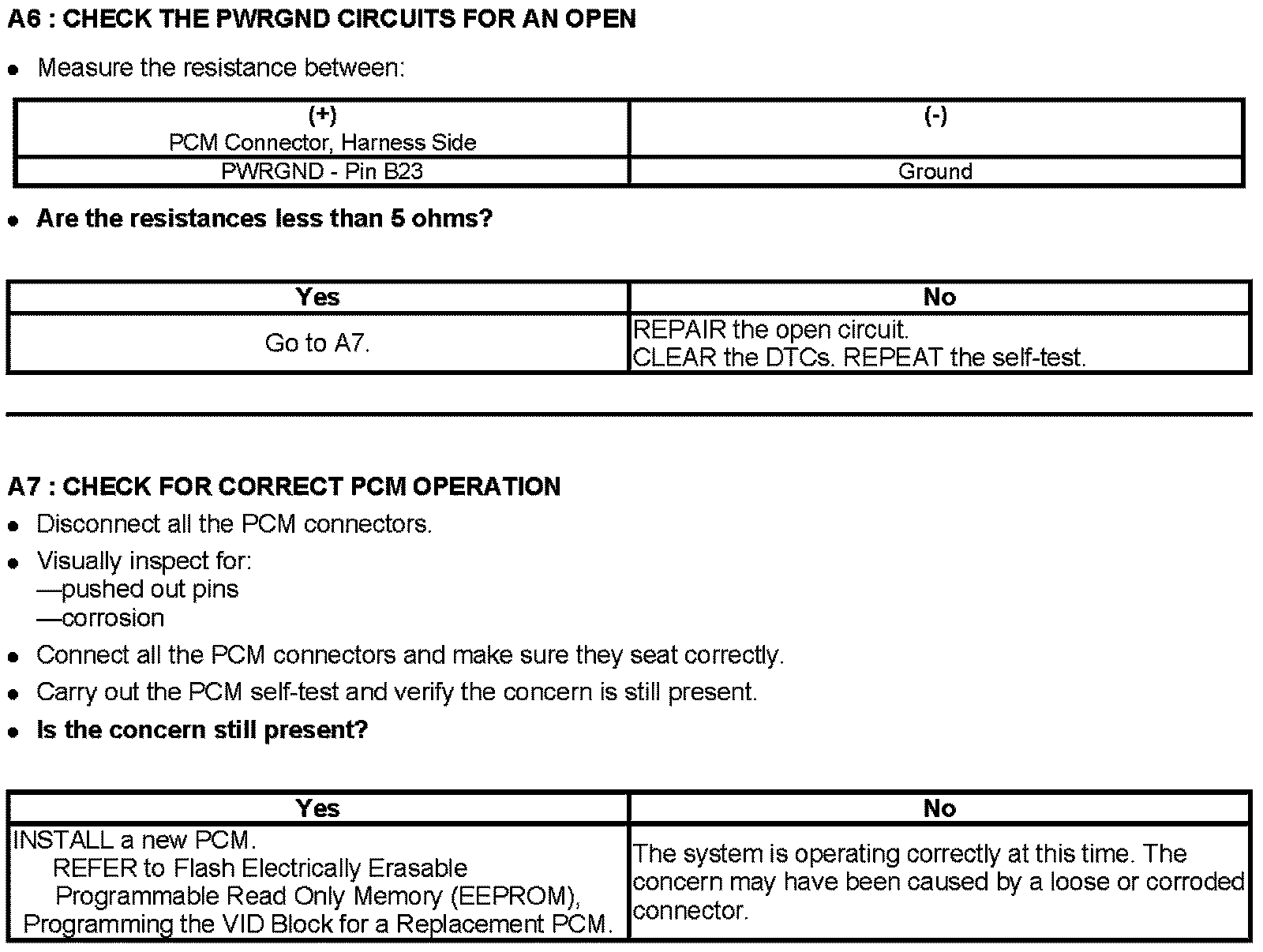

A6-A7:
