Test M: Fuel Pump Monitor/Control



PINPOINT TEST M: FUEL PUMP MONITOR/CONTROL

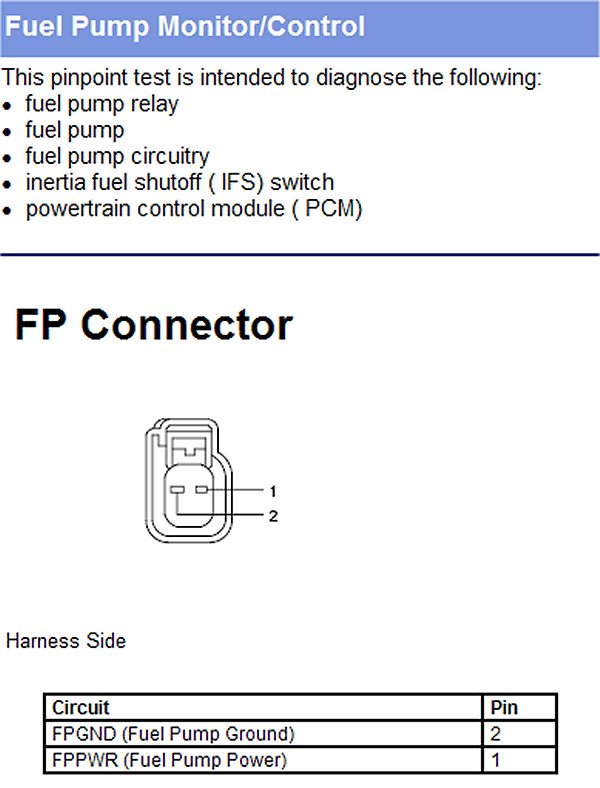

Pinpoint Test M: Introduction:

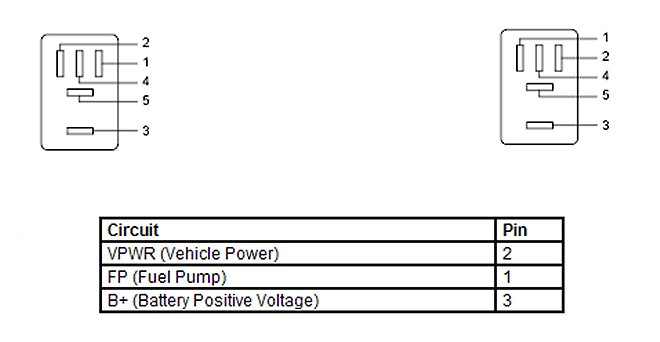

FP Relay Connector:

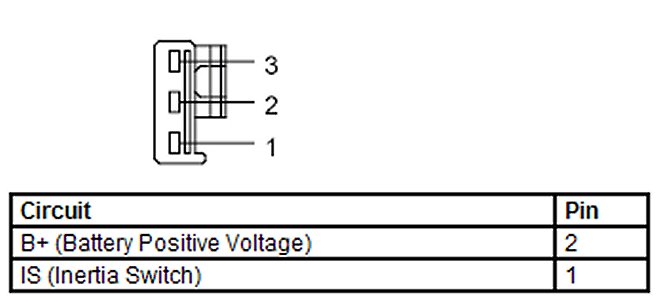

IFS Switch Connector:

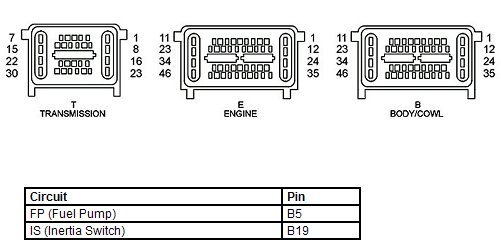

PCM Connector:

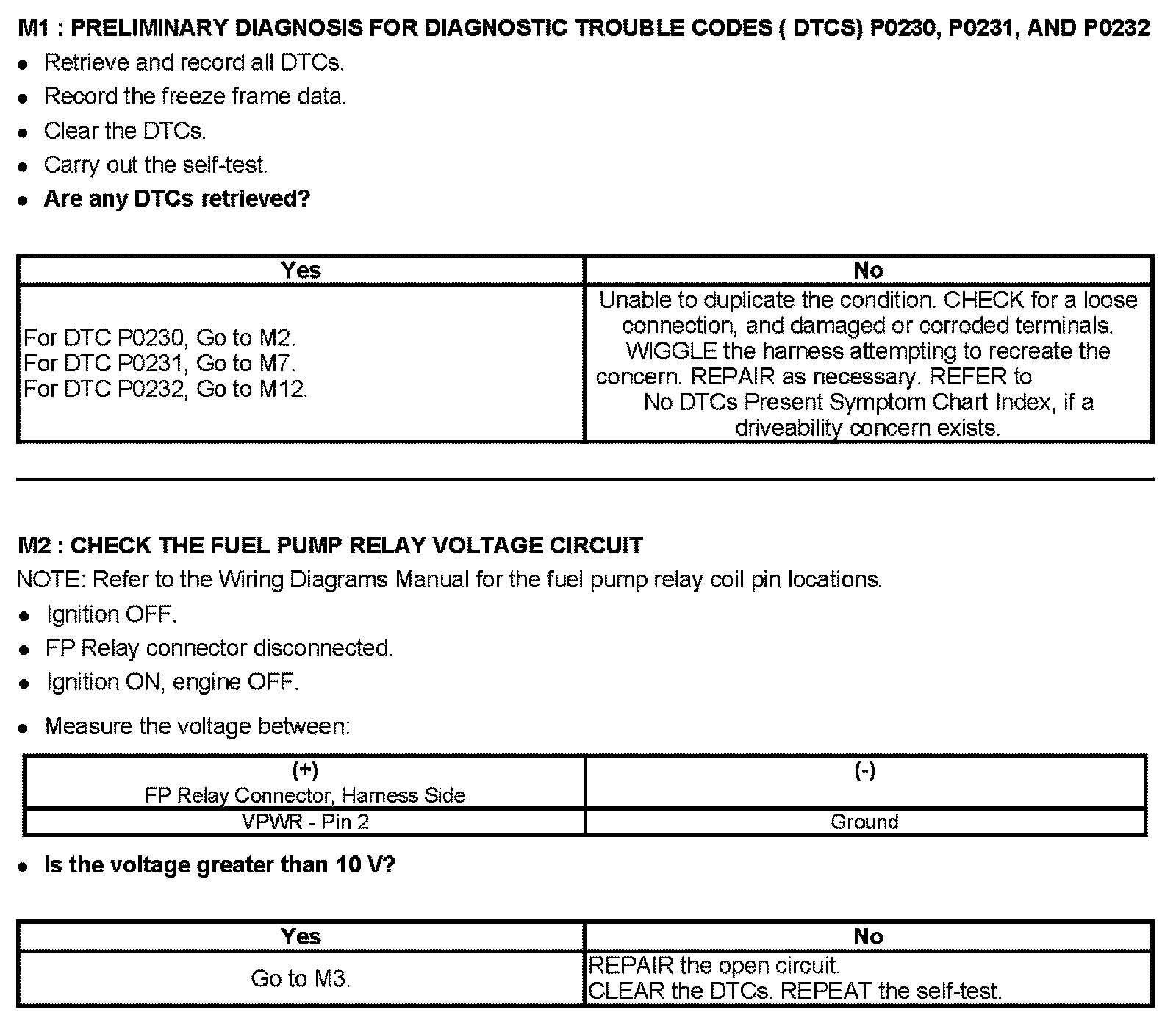

M1-M2:

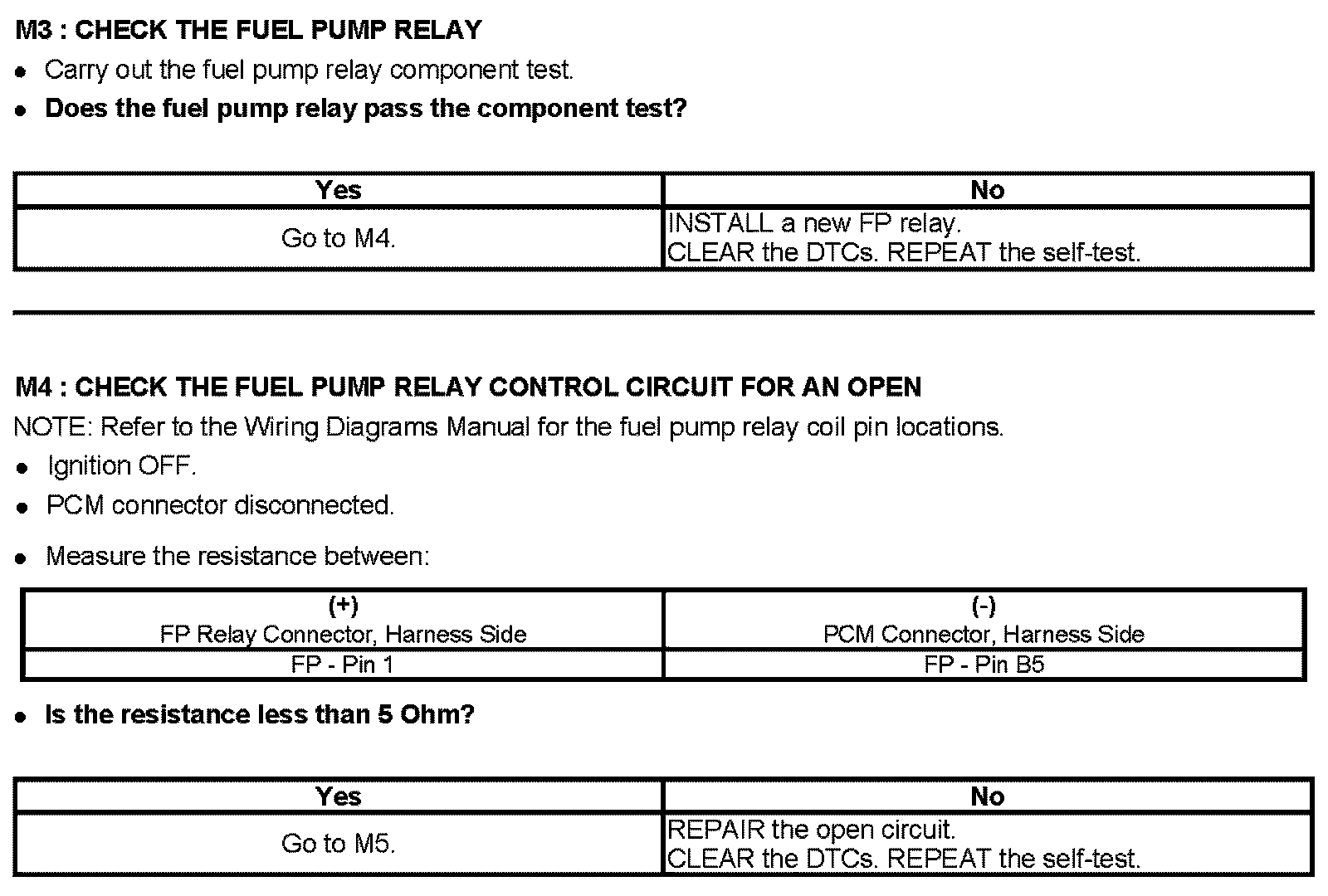

M3-M4:

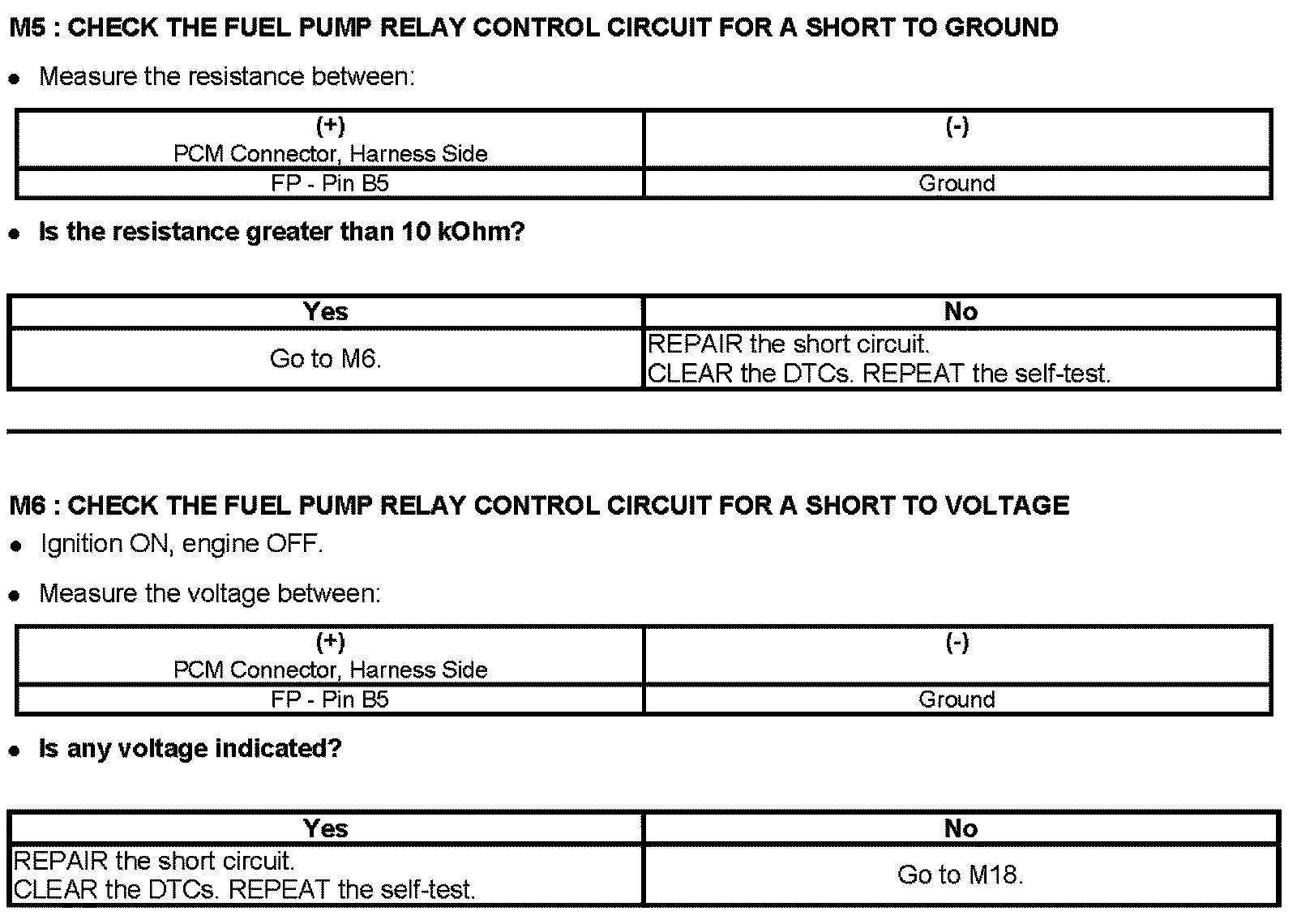

M5-M6:

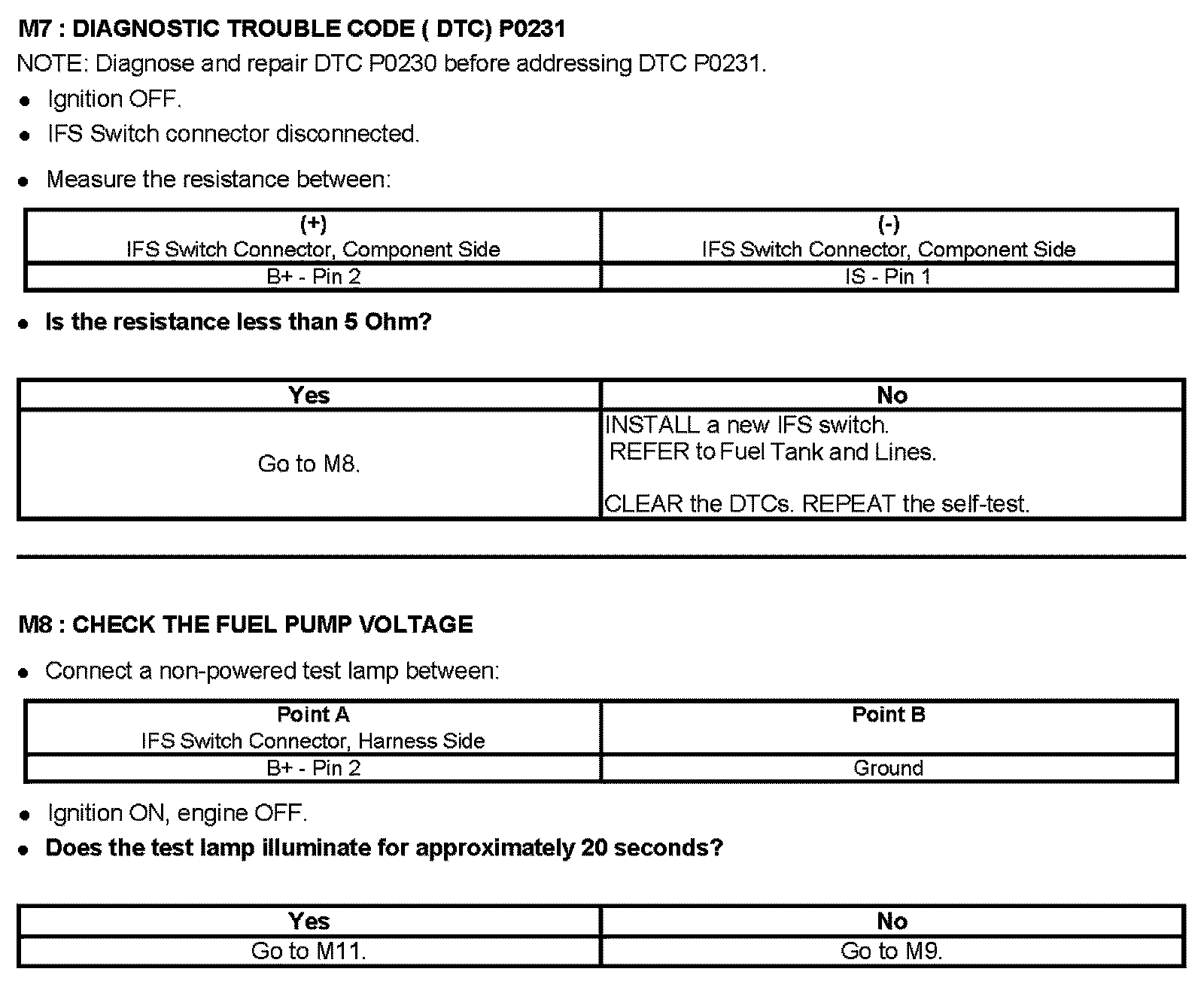

M7-M8:

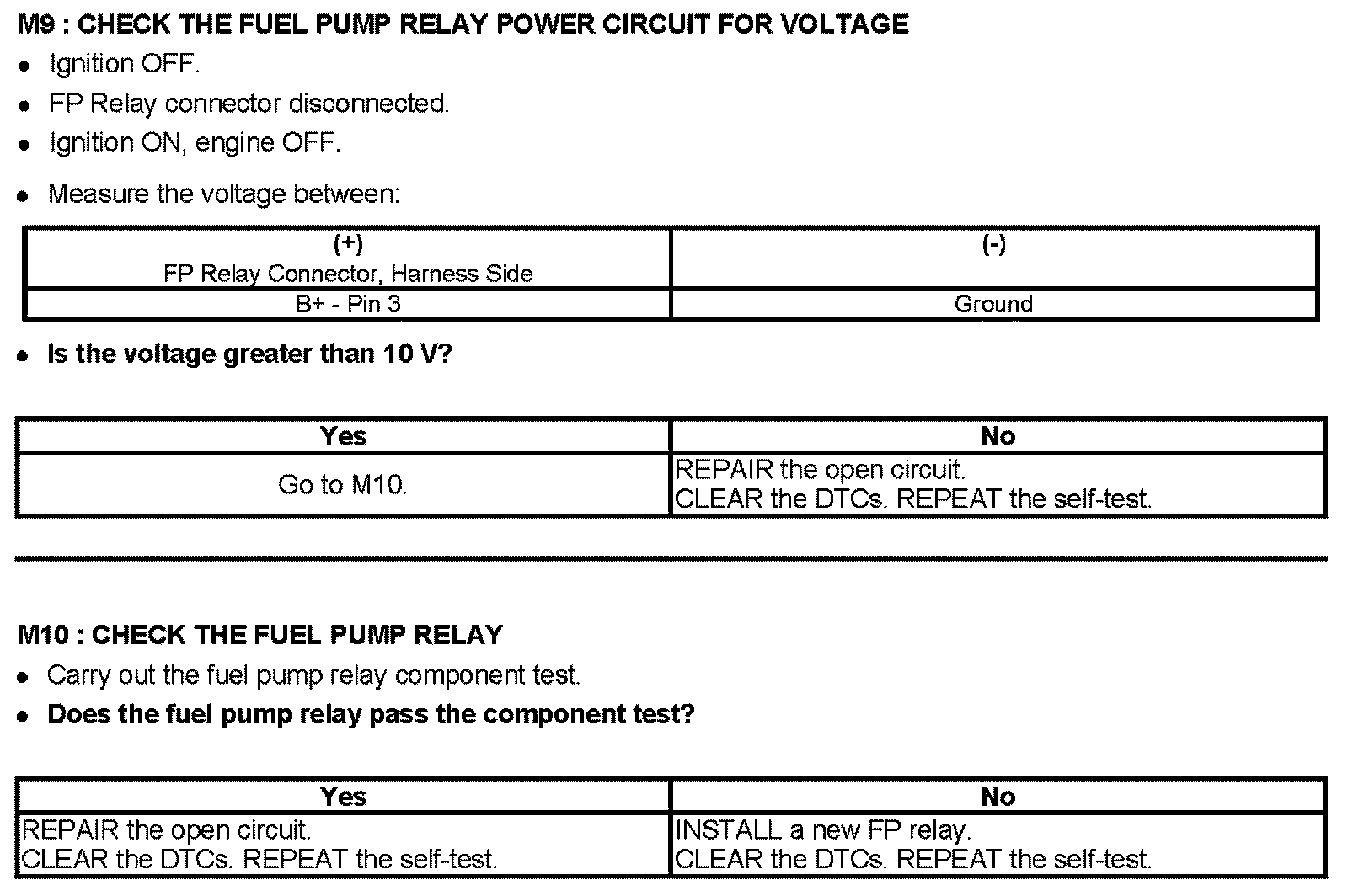

M9-M10:

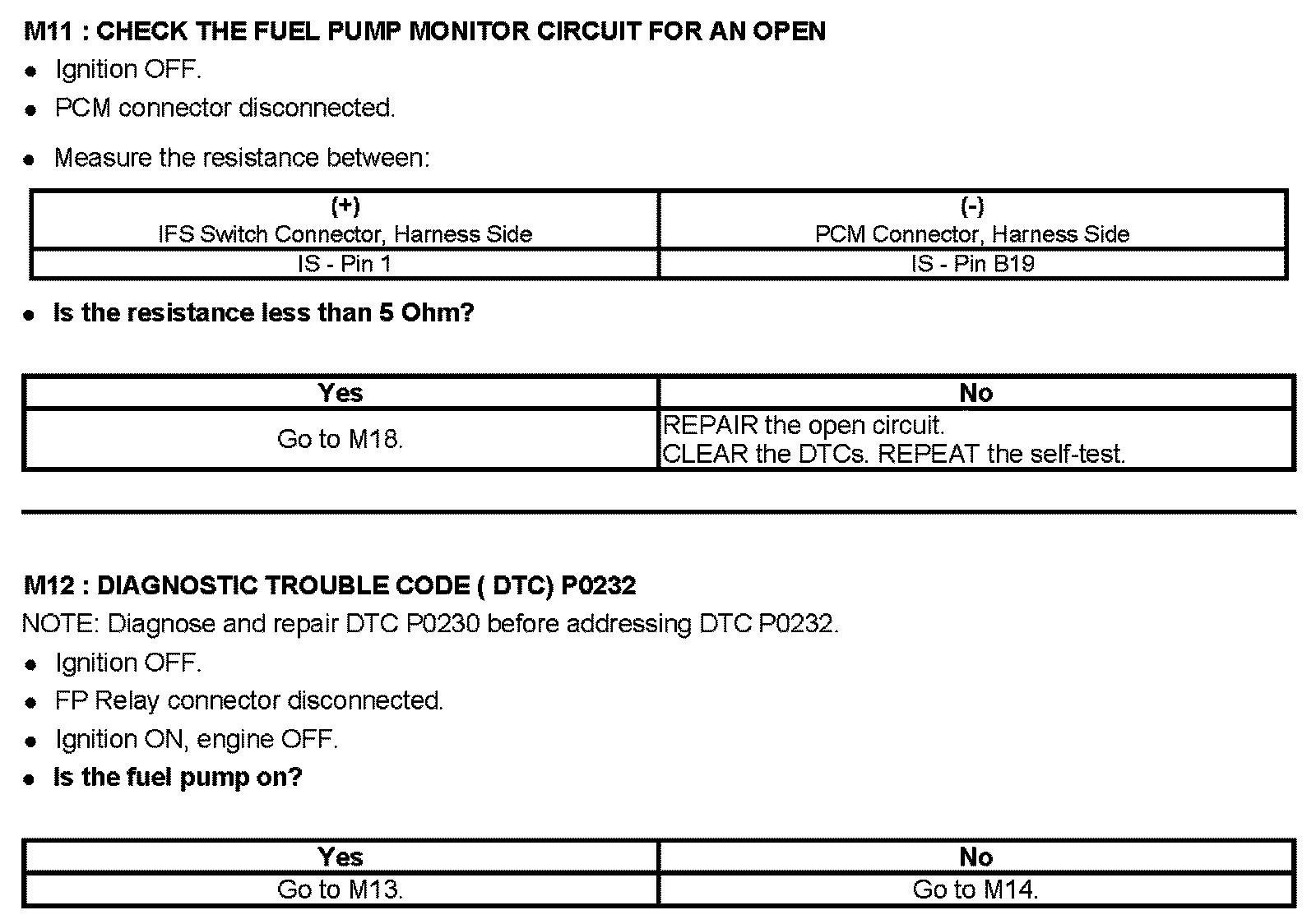

M11-M12:

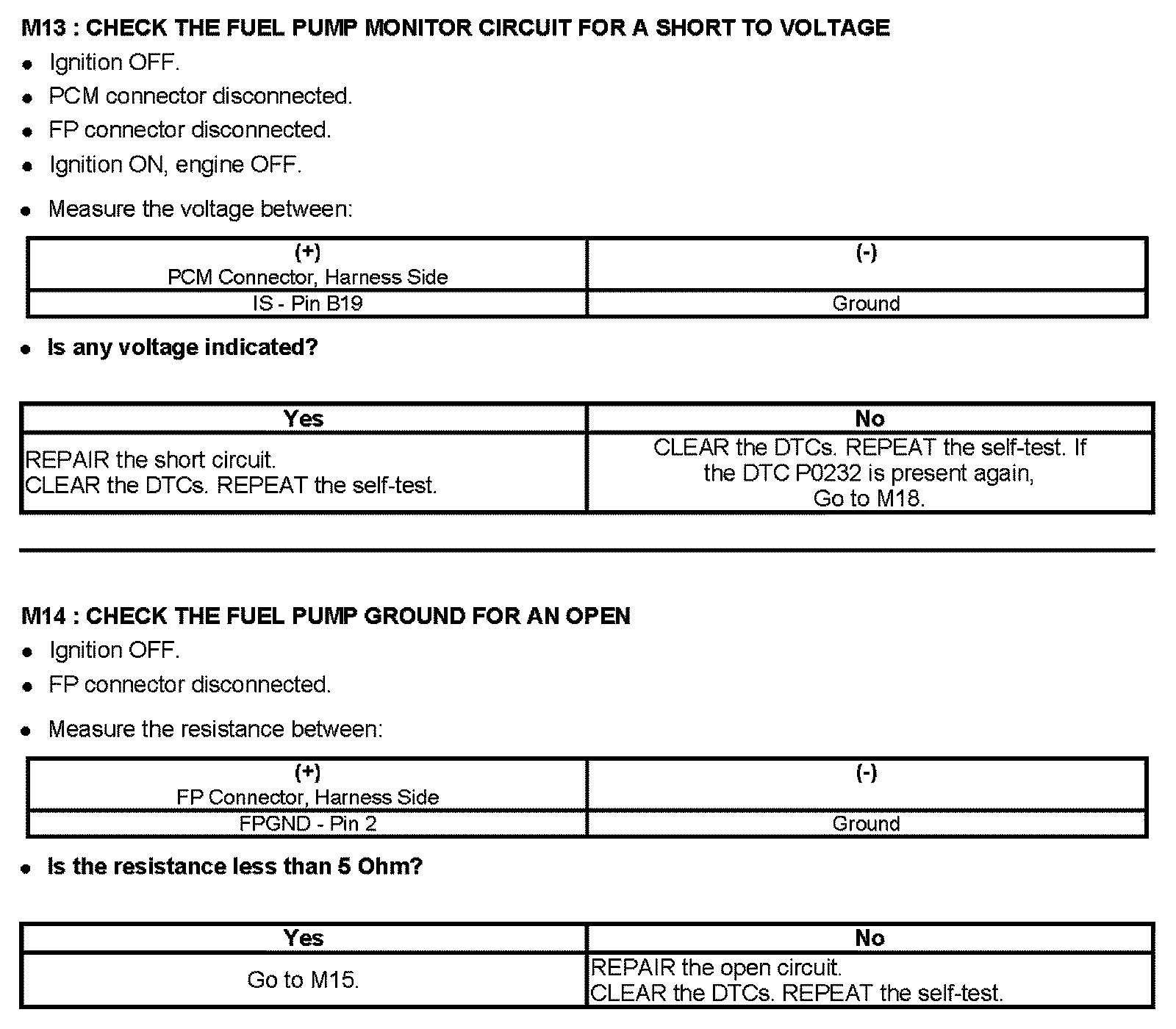

M13-M14:

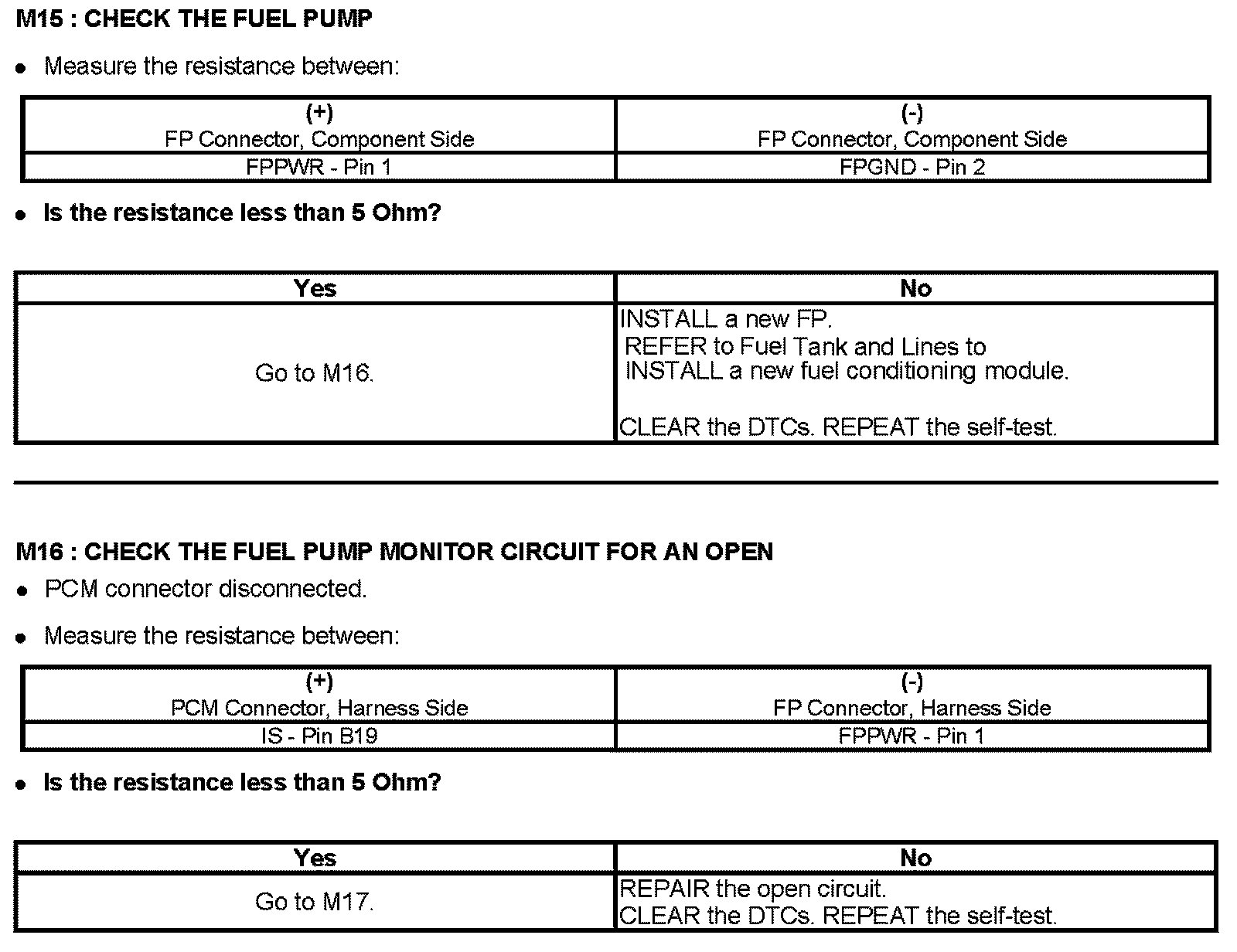

M15-M16:

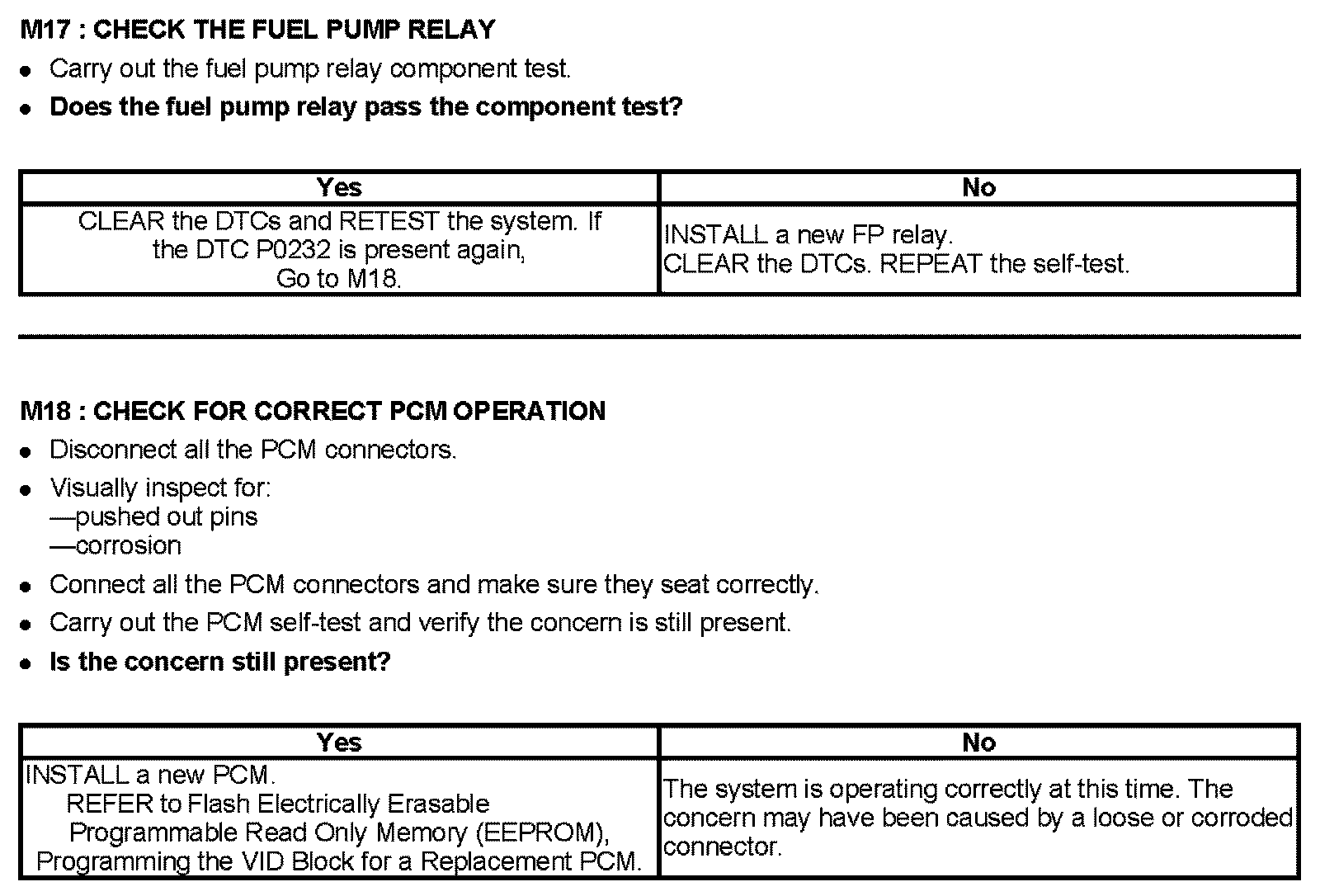

M17-M18:
