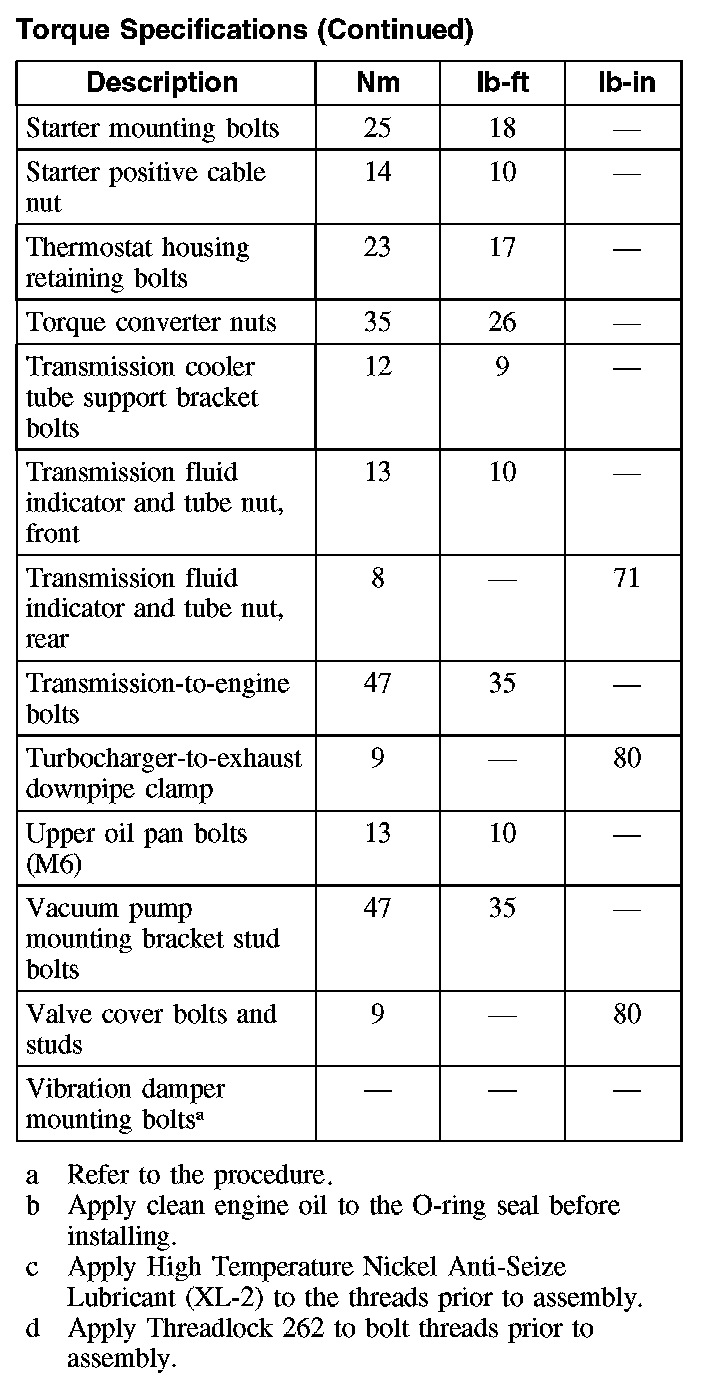

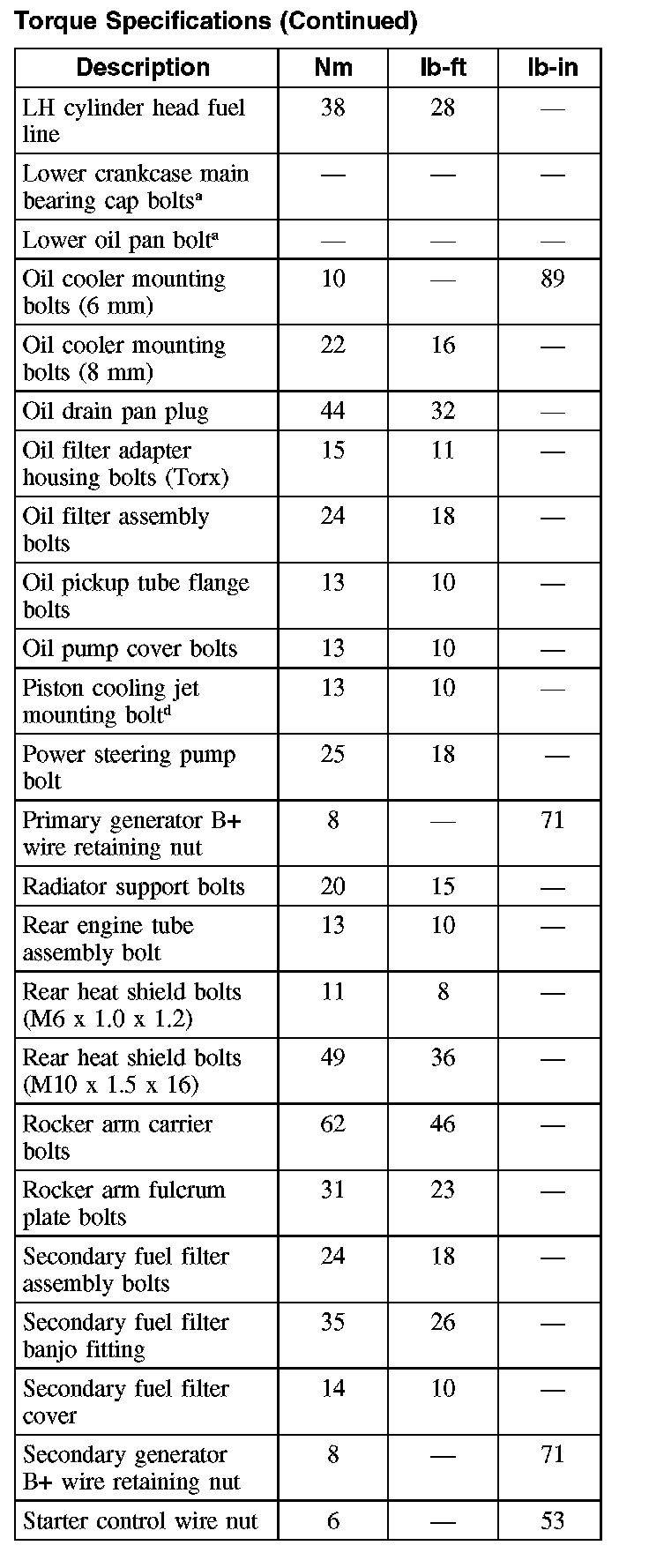

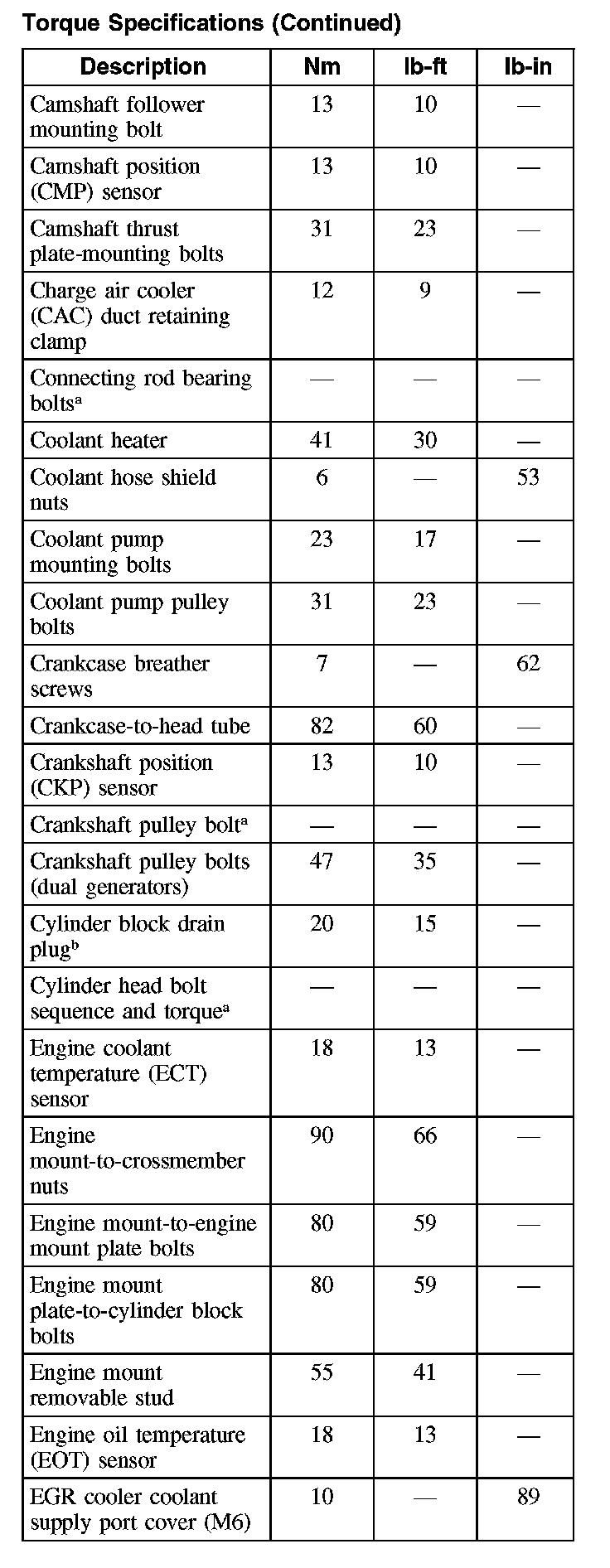

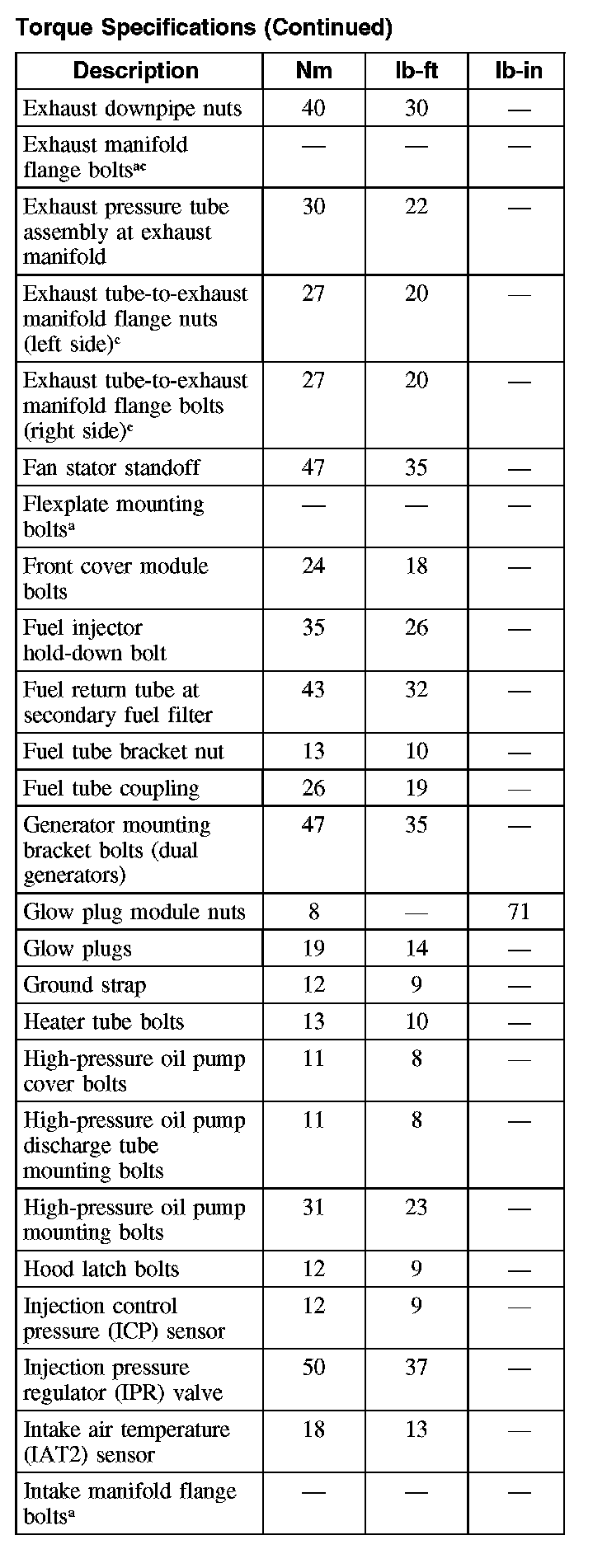

Torque Specifications

Torque Specifications

















Cylinder Head Bolts
Discard the cylinder head bolts and install new ones.

Standard Torque - Pipe Thread





Standard Torques - Class 10.9 Metric Bolts and Studs





Standard Torques - Class 12.9 Metric Bolts and Studs
