Leak Detection Valve: Service and Repair

EVAPORATIVE EMISSION CANISTER VENT SOLENOID







Removal and Installation

WARNING:
- Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
- Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

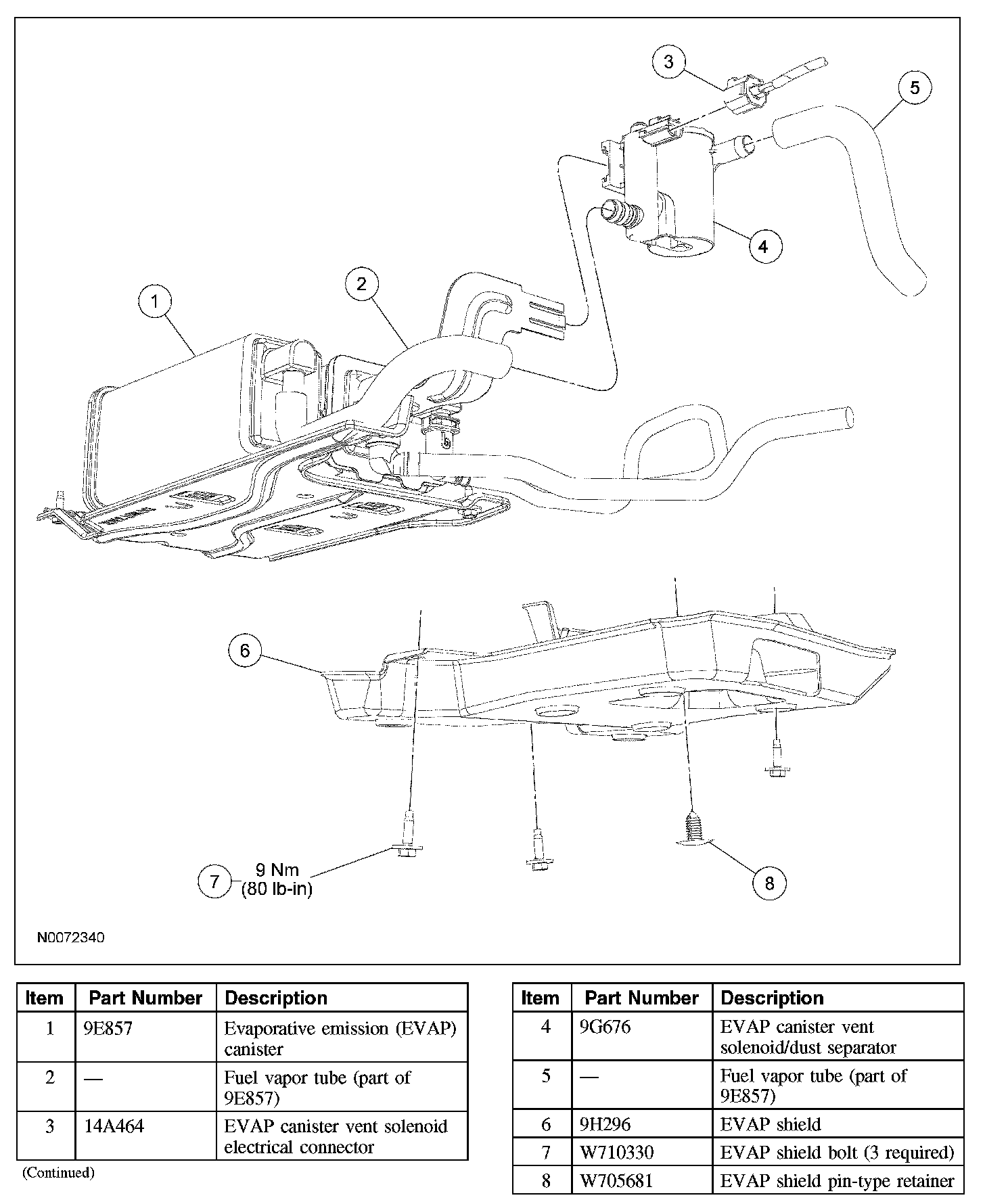

NOTE: The evaporative emission (EVAP) canister vent solenoid and the dust separator are serviced as an assembly.

1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the 3 bolts, pin-type retainer and the EVAP shield.
- To install, tighten to 9 Nm (80 lb-in).

3. Disconnect the EVAP canister vent solenoid electrical connector.
4. Disconnect the 2 fuel vapor tubes from the EVAP canister vent solenoid/dust separator.
5. Depress the tab and remove the EVAP canister vent solenoid/dust separator from the EVAP canister bracket.
6. To install, reverse the removal procedure.
- Carry out the Evaporative Emission System Leak Test. Testing and Inspection
- Carry out the EVAP repair verification drive cycle.
