Driver Side Front Power Window Motor Connector

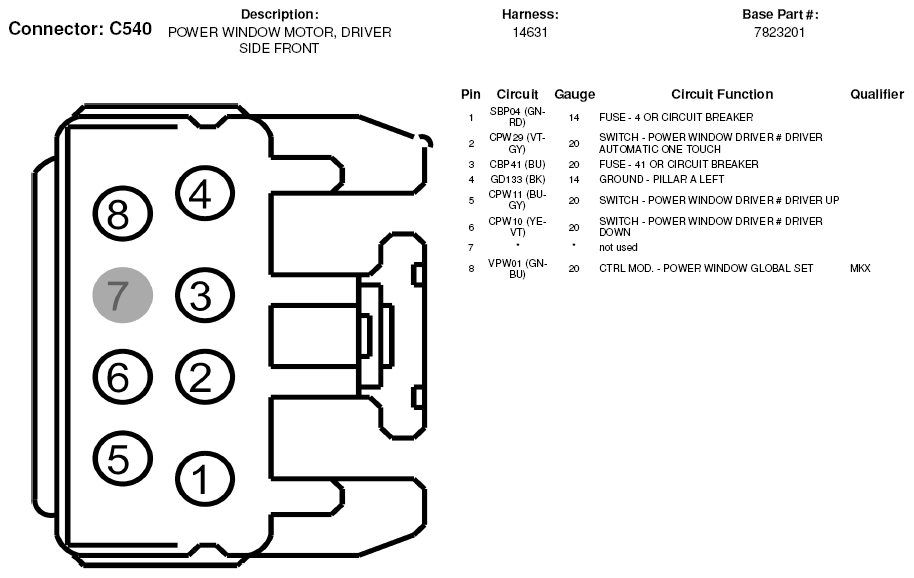

Fig 1: Driver Side Front Power Window Motor Connector End View (C540)

G05598924
