Left Power Seat Switch Connector

Fig 1: Left Power Seat Switch Connector End View (C352)
G05598882

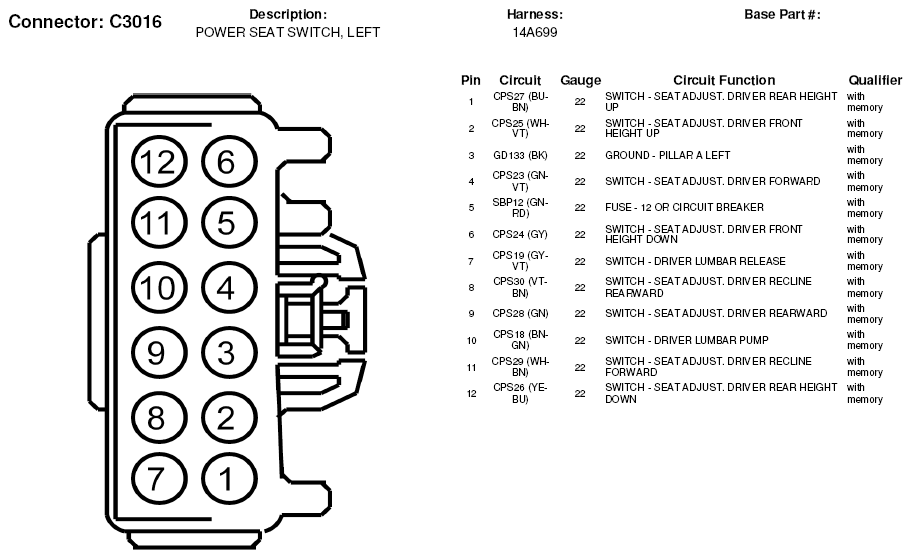

Fig 2: Left Power Seat Switch Connector End View (C3016)
G05599026
