Master Window Adjust Switch Connector

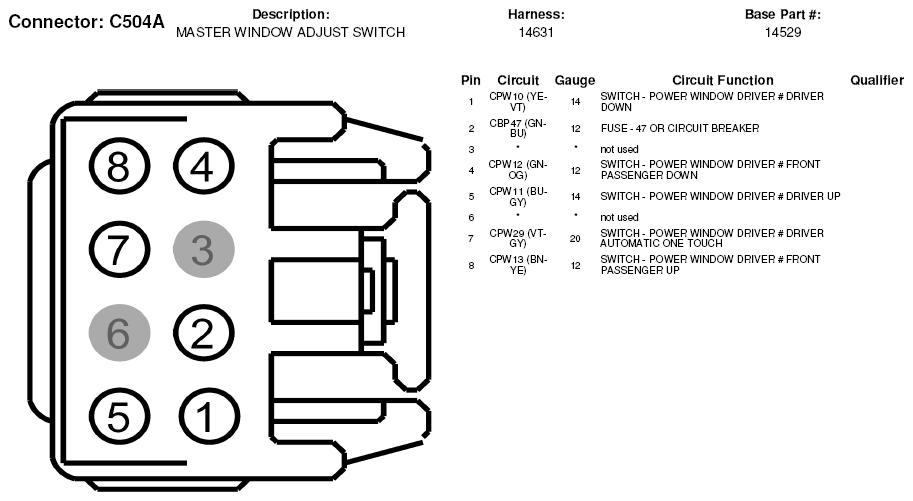

Fig 1: Master Window Adjust Switch Connector End View (C504A)
G05598912

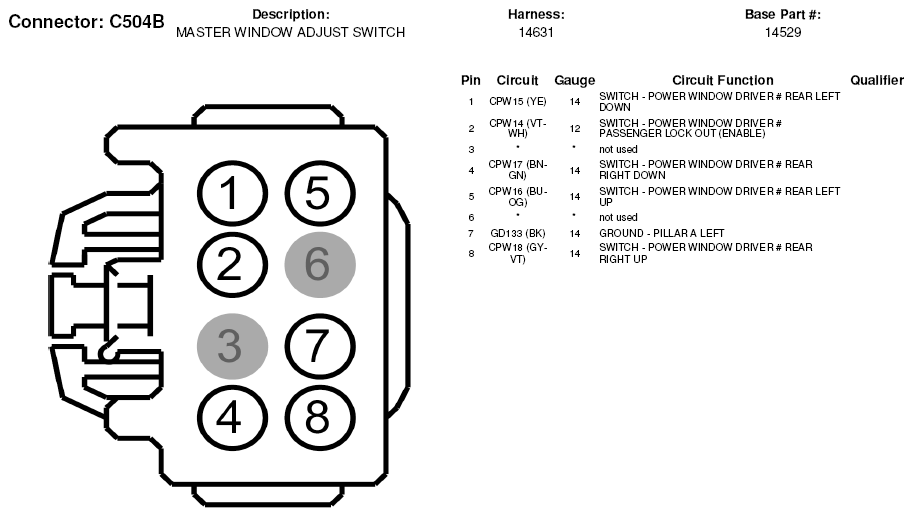

Fig 2: Master Window Adjust Switch Connector End View (C504B)
G05598913

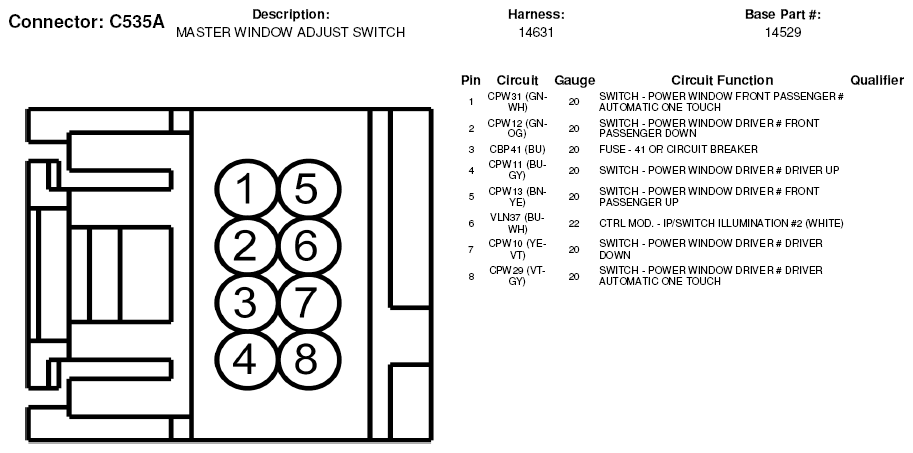

Fig 3: Master Window Adjust Switch Connector End View (C535A)
G05598921

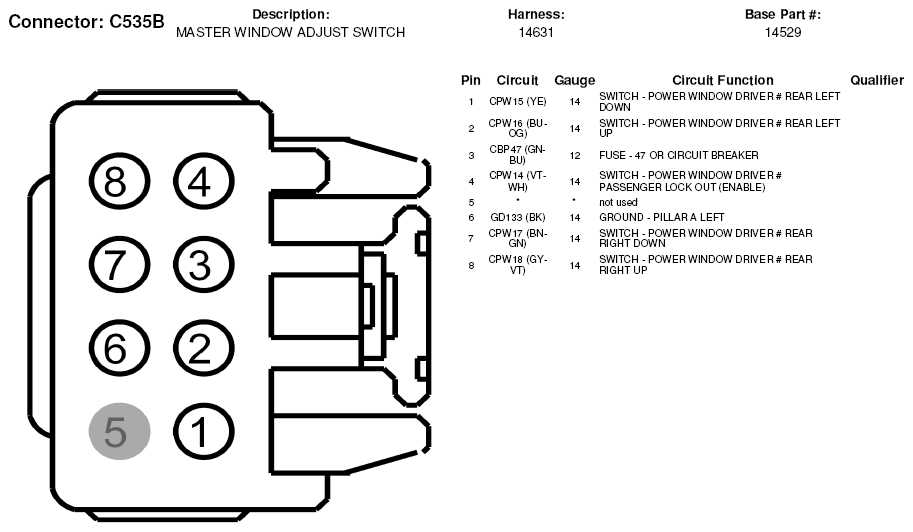

Fig 4: Master Window Adjust Switch Connector End View (C535B)
G05598922
