Auxiliary Climate Control Assembly Connector

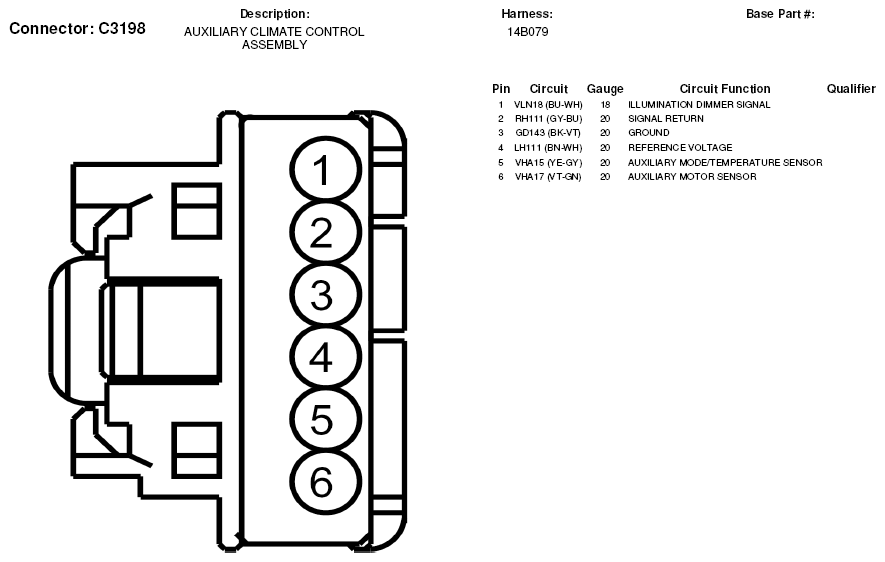

Fig 1: Auxiliary Climate Control Assembly Connector End View (C3198)
