Compressor to Condenser Discharge Line: Notes
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D |
WSH-M1C231-B |

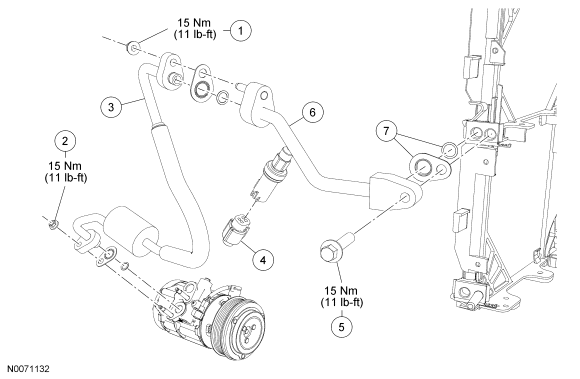

| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | Condenser inlet jumper line fitting nut |
| 2 | W520413 | Compressor discharge fitting nut |
| 3 | 19972 | Compressor-to-condenser line |
| 4 | - | A/C pressure transducer electrical connector (part of 12A581) |
| 5 | W500110 | Condenser inlet fitting bolt |
| 6 | 19E558 | Condenser inlet jumper line |
| 7 | 19B596 | O-ring seal and gasket seal kit (3 required) |
