Removal And Installation

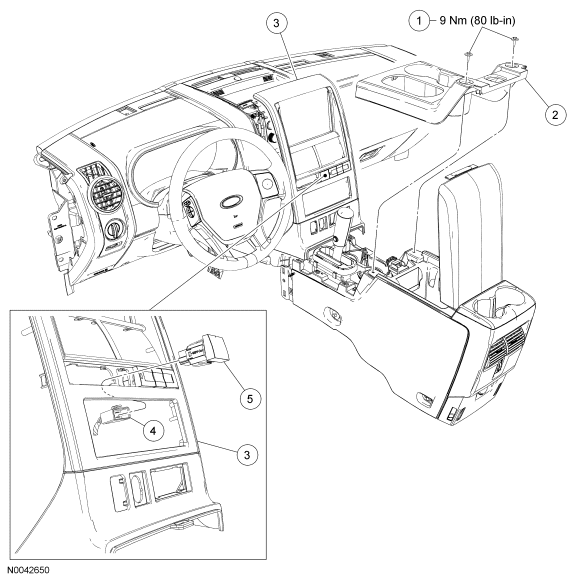

| Item | Part Number | Description |
|---|---|---|
| 1 | W705796 | Floor console center finish panel screws (2 required) |
| 2 | 78045B44 | Floor console center finish panel |
| 3 | 7804302 | Instrument panel center finish panel |
| 4 | - | Stability traction control switch electrical connector (part of 14401) |
| 5 | 14B079 | Stability traction control switch |
- Remove the 2 floor console center finish panel screws and the floor console center finish panel.
- To install, tighten to 9 Nm (80 lb-in).
- Apply the parking brake.
- Move the gear selector lever to the D1 position.
- Position the instrument panel center finish panel away from the instrument panel.
- Disconnect the stability traction control switch electrical connector and remove the stability traction control switch from the instrument panel center finish panel.
- To install, reverse the removal procedure.
