Evaporator Temperature Sensor / Switch: Service and Repair

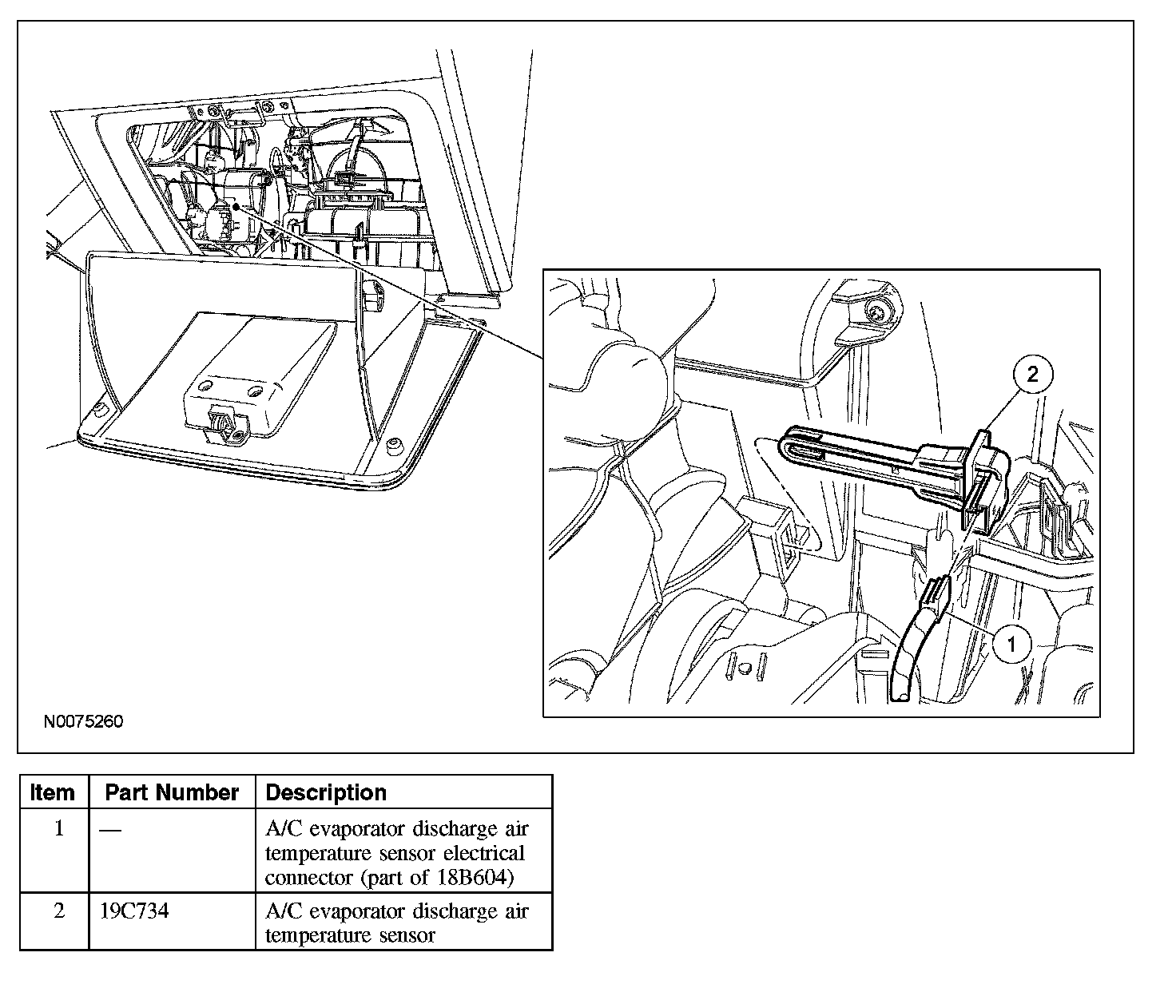

AIR CONDITIONING (A/C) EVAPORATOR DISCHARGE AIR TEMPERATURE SENSOR







Removal and Installation
1. Lower the glove compartment.
2. Disconnect the A/C evaporator discharge air temperature sensor electrical connector.
3. Carefully pry out and remove the A/C evaporator discharge air temperature sensor.
4. To install, reverse the removal procedure.
