Pinpoint Test Q: No Power To The Scan Tool



Pinpoint Test Q: No Power To The Scan Tool

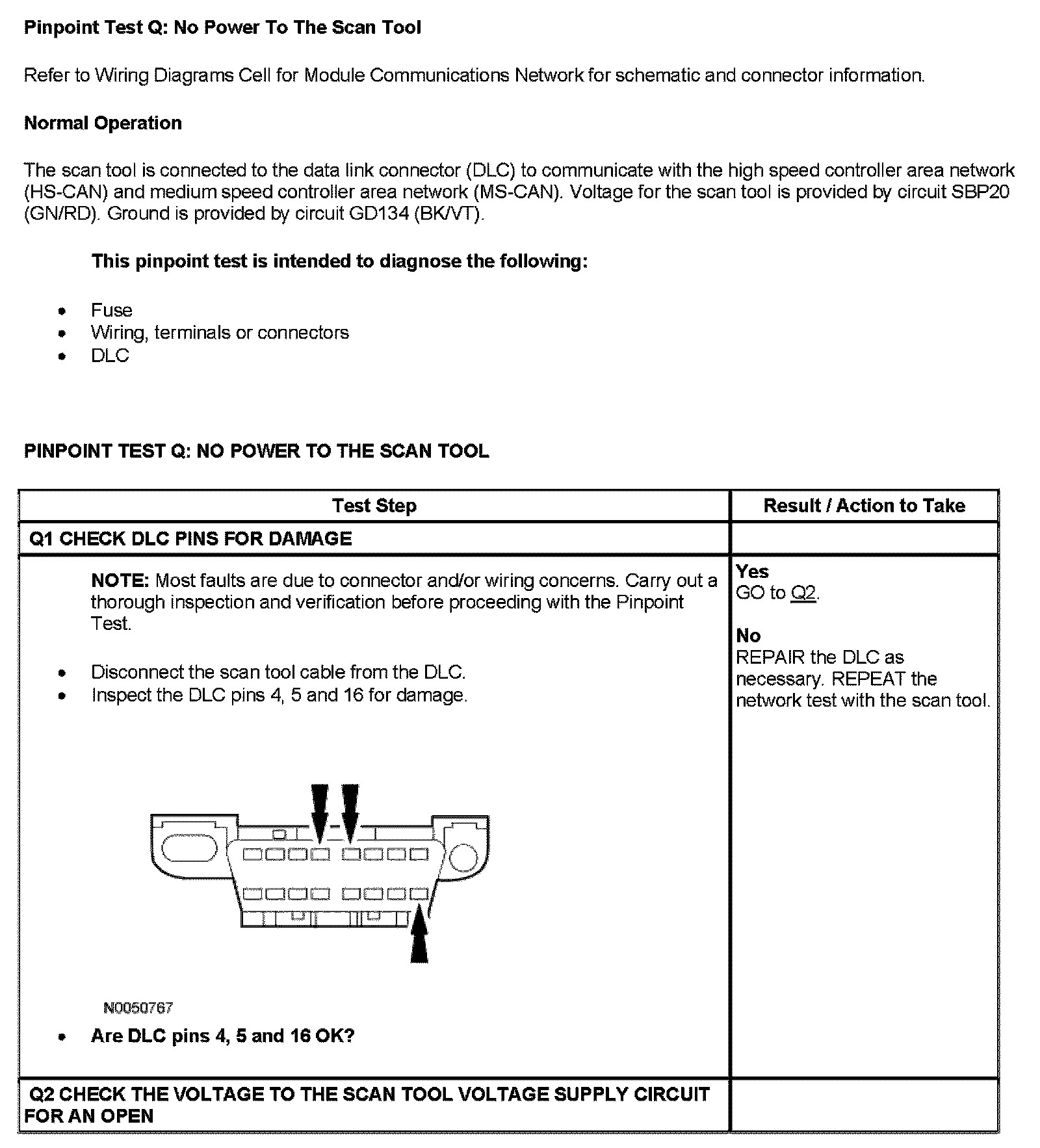

Pinpoint Test Q1-Q2:

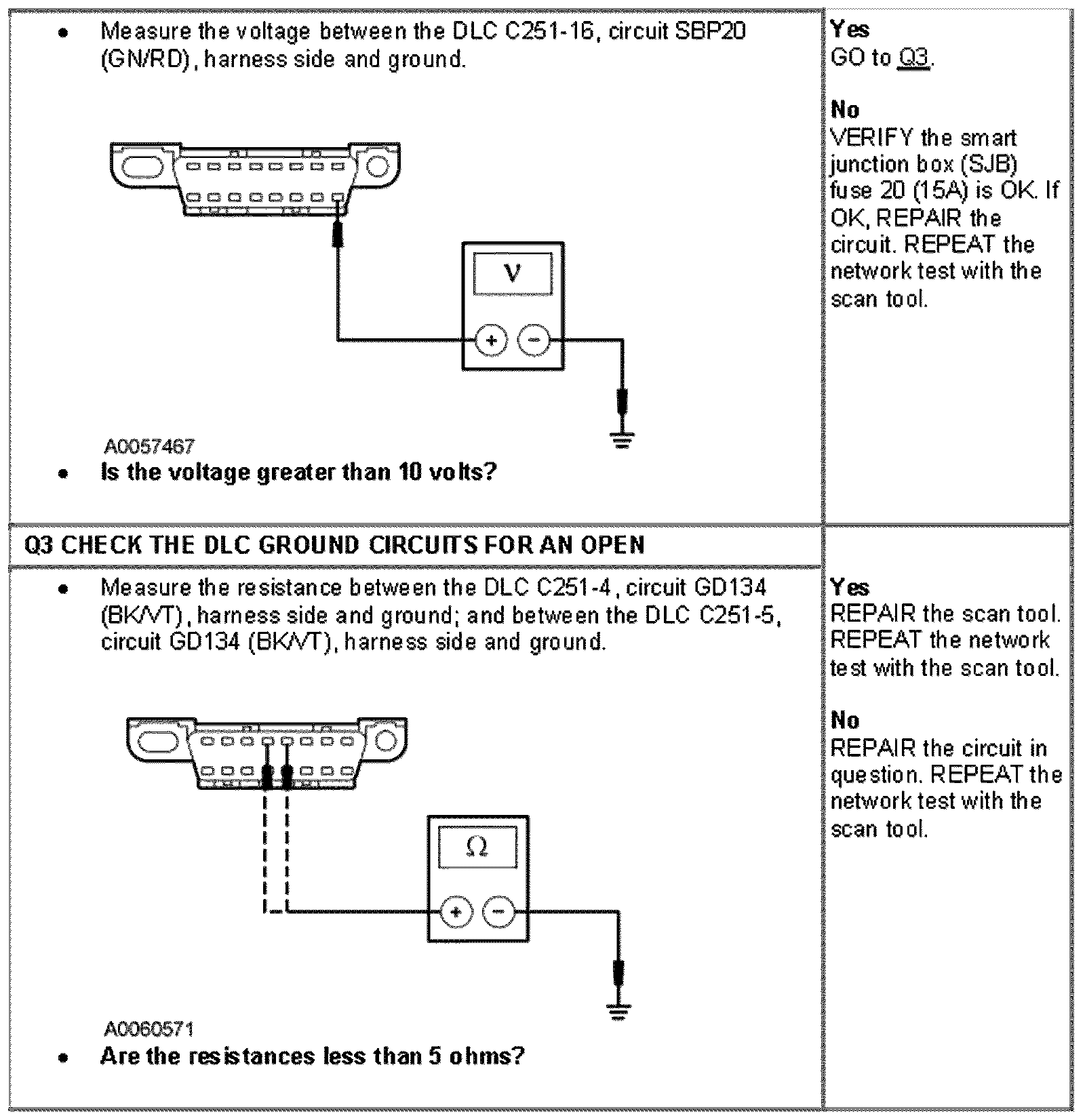

Pinpoint Test Q2 Cont'd-Q3:
