Transfer Shaft Shim Selection Chart

Transfer Shaft Shim Selection Chart

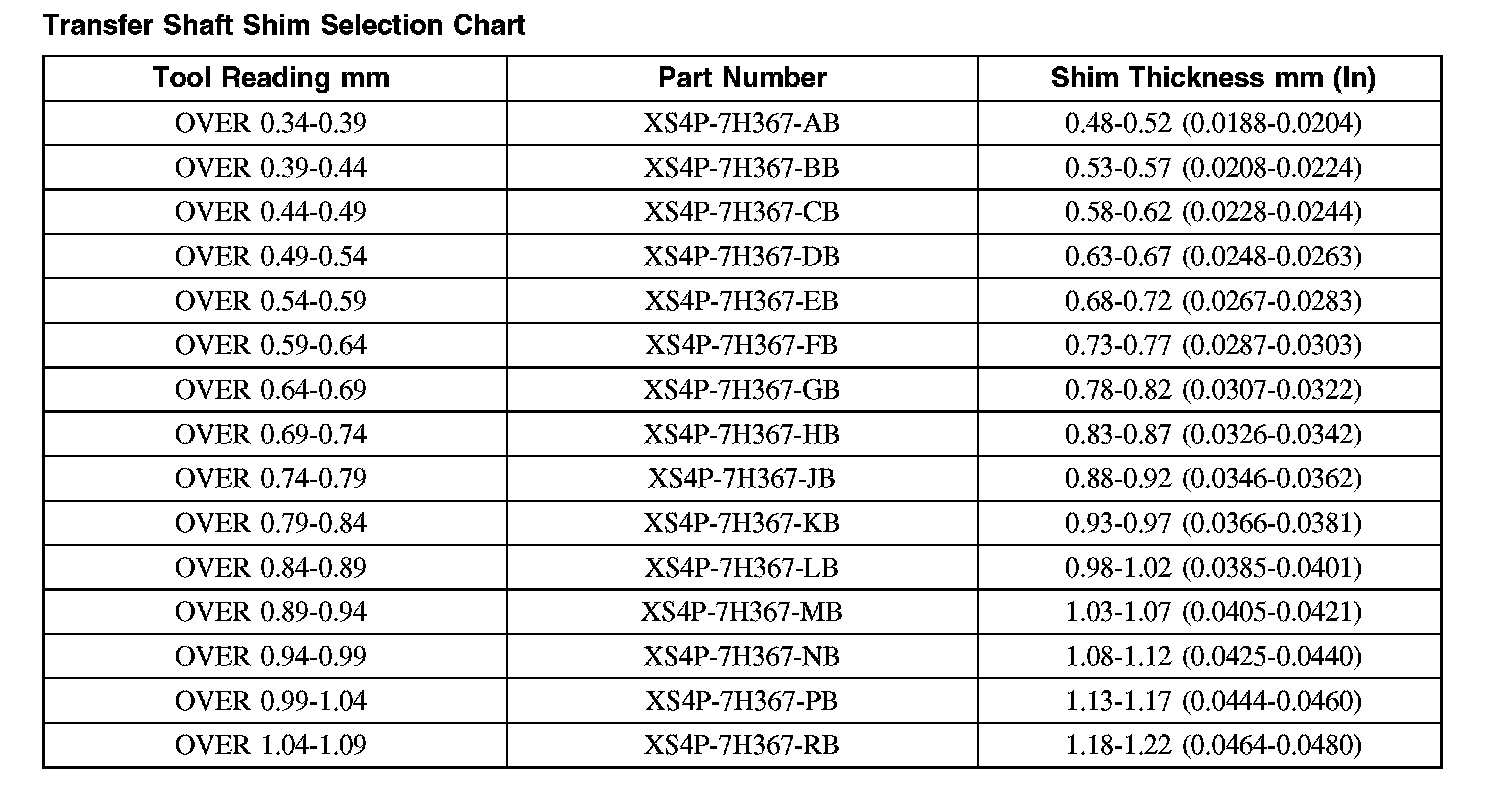

Transfer Shaft Shim Selection Chart (Part 1):

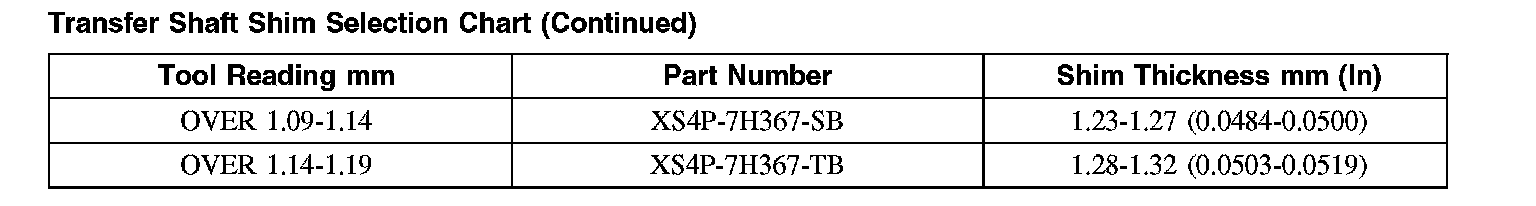

Transfer Shaft Shim Selection Chart (Part 2):
