Power Window Switch: Service and Repair

WINDOW CONTROL SWITCH







Removal and Installation

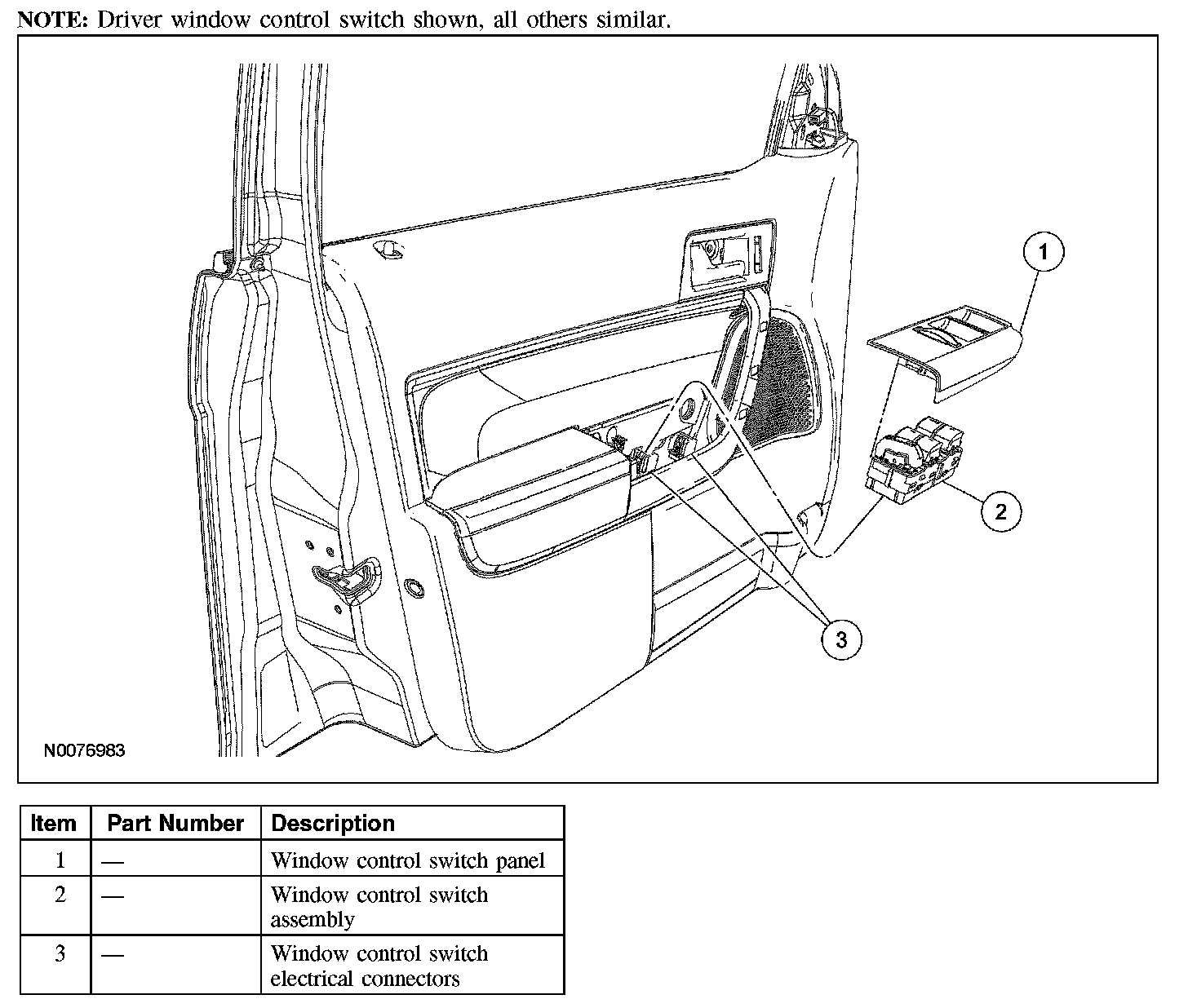

1. NOTE: Front window control switch shown, all others similar.

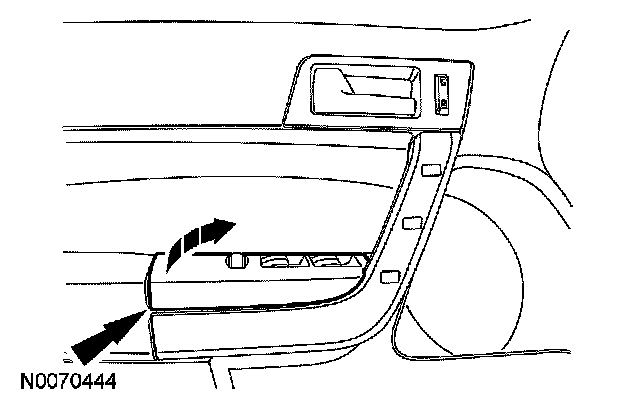

Lift upward at the rear of the window control switch panel.
- Disconnect the electrical connector(s).
- Remove the control switch.







2. To install, reverse the removal procedure.
