Test L: The Delayed Accessory Is Inoperative/Does Not Operate Correctly

PINPOINT TEST L: THE DELAYED ACCESSORY IS INOPERATIVE/DOES NOT OPERATE CORRECTLY

Normal Operation
The accessory delay relay, which is integral to the smart junction box (SJB), receives power from the battery junction box (BJB) through circuit SBB01 (RD). When the ignition key is turned ON, the SJB activates the accessory delay relay, which provides power to the LH front window control switch through circuit CPW30 (GY/YE). The delayed accessory feature remains active for 10 minutes after the ignition key is turned OFF or until either front door is opened.

This pinpoint test is intended to diagnose the following:
- Fuse
- Wiring, terminals or connectors
- Inoperative SJB
- Inoperative door ajar switches

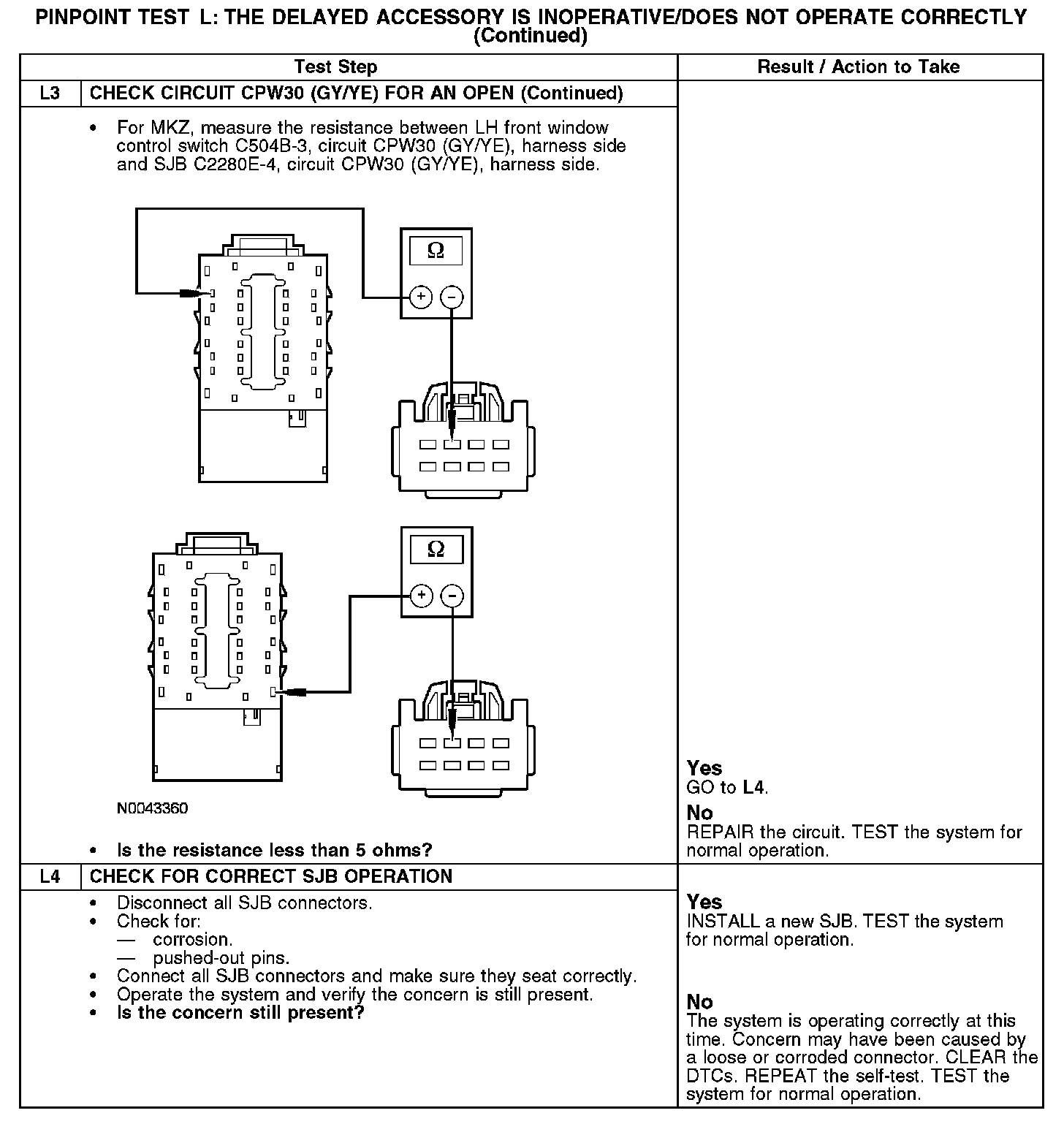

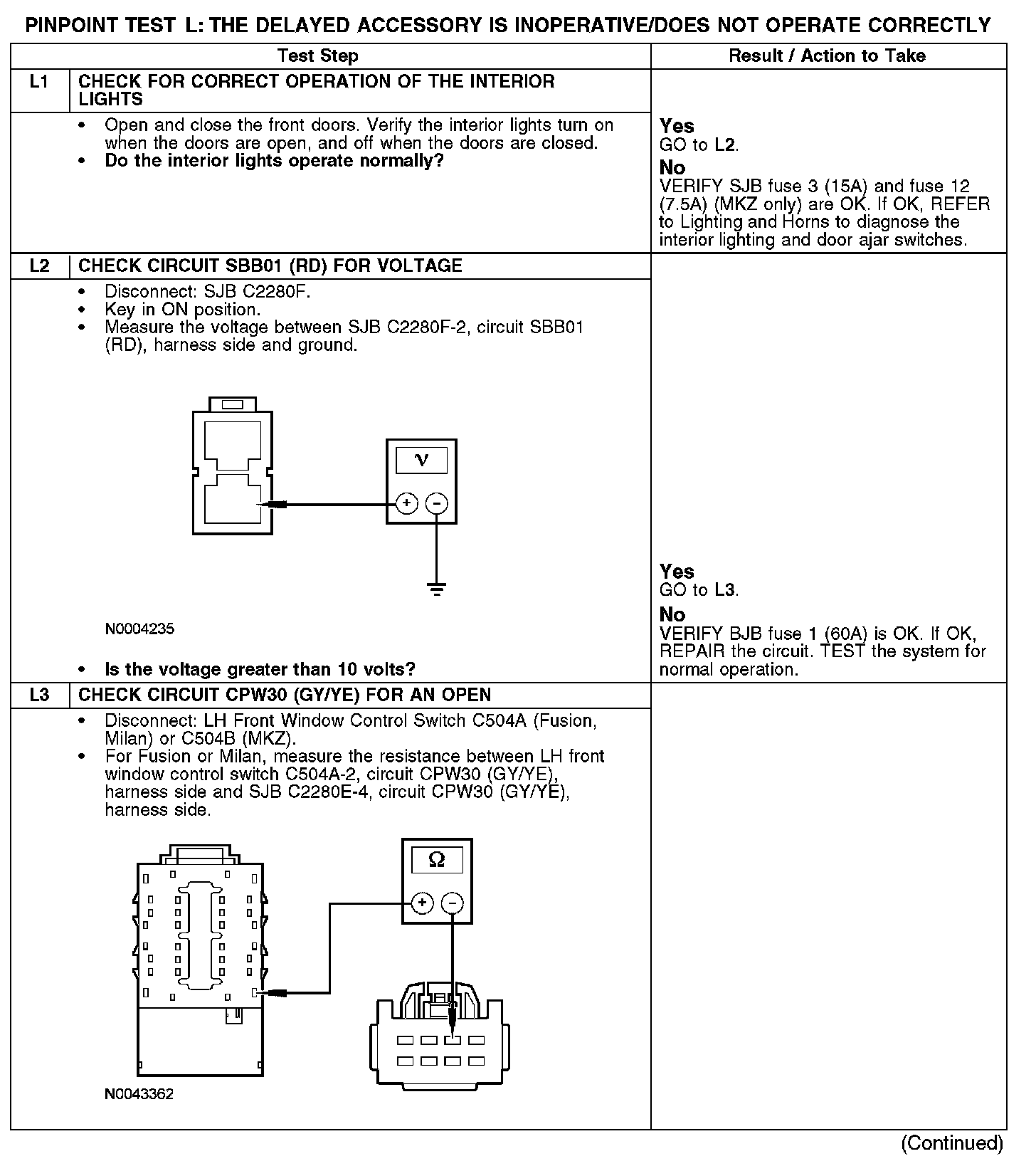

L1-L3:

L3-L4:
