Alternator: Service and Repair

GENERATOR

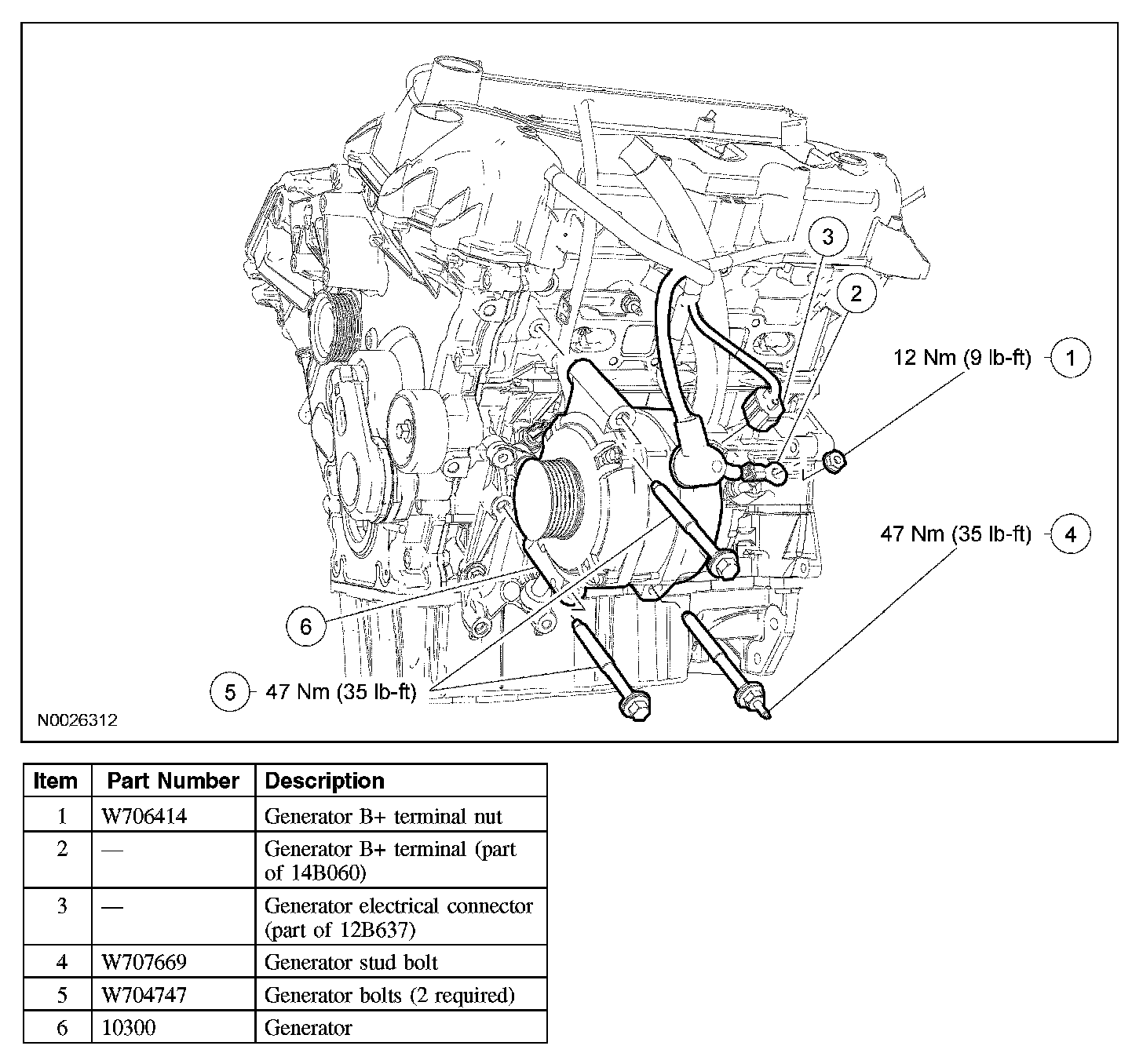

Removal and Installation
1. Remove the A/C compressor.
2. Disconnect the battery.
3. Position the generator protective cover aside, remove the nut and position the generator B+ terminal aside.
- To install, tighten to 12 Nm (9 lb-ft).

4. Disconnect the generator electrical connector.
5. Remove the 3 bolts and the generator.
- To install, tighten to 47 Nm (35 lb-ft).

6. To install, reverse the removal procedure.
