Left Side Air Bag Module Connector

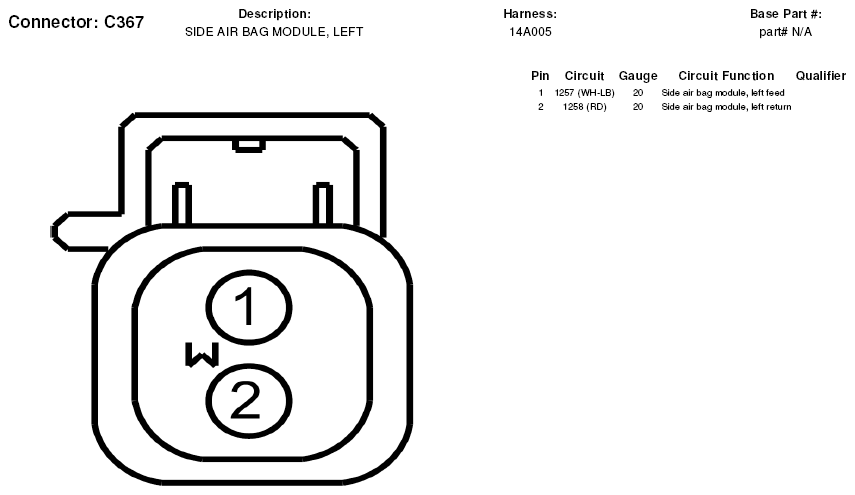

Fig 1: Left Side Air Bag Module Connector End View (C367)

G05602859
