Antitheft Motion Sensor: Service and Repair

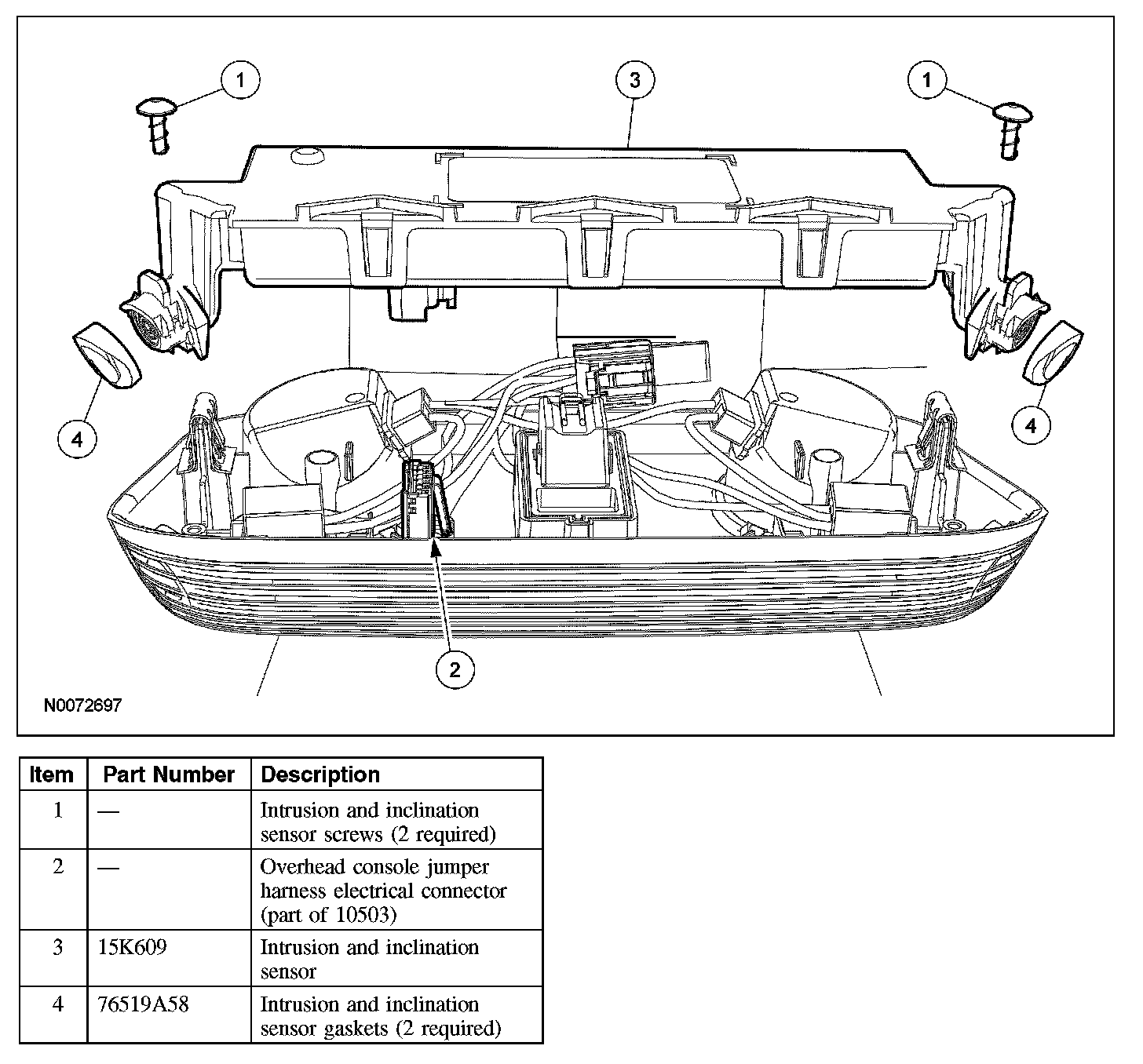

INTRUSION AND INCLINATION SENSOR







Removal and Installation
1. Remove the overhead console.
2. Remove the 2 screws and position the intrusion and inclination sensor aside.
3. Disconnect the overhead console jumper harness electrical connector.
4. Remove the intrusion and inclination sensor.
5. Remove the foam gaskets from the old intrusion and inclination sensor and install them on the new sensor.
6. To install, reverse the removal procedure.
