Ignition Switch Lock Cylinder: Service and Repair

IGNITION LOCK CYLINDER







Removal and Installation

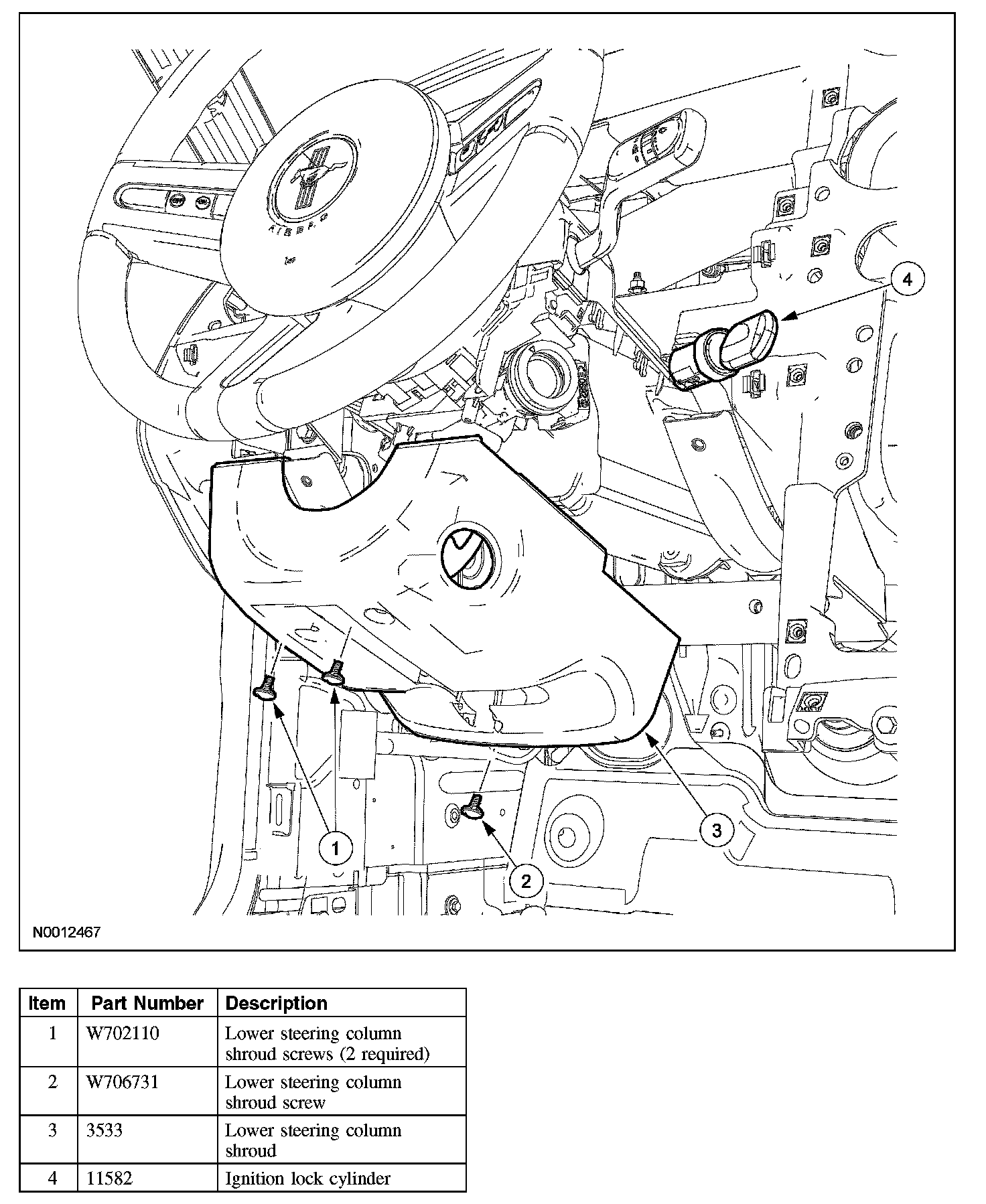

1. Remove the steering column cover.
2. Remove the 3 screws and the lower steering column shroud.
3. Turn the key to the RUN position.
4. Insert a small punch into the hole and remove the ignition lock cylinder.







5. To install, reverse the removal procedure.
- Lubricate the ignition lock cylinder after installation.
