Brake Switch (Cruise Control): Service and Repair

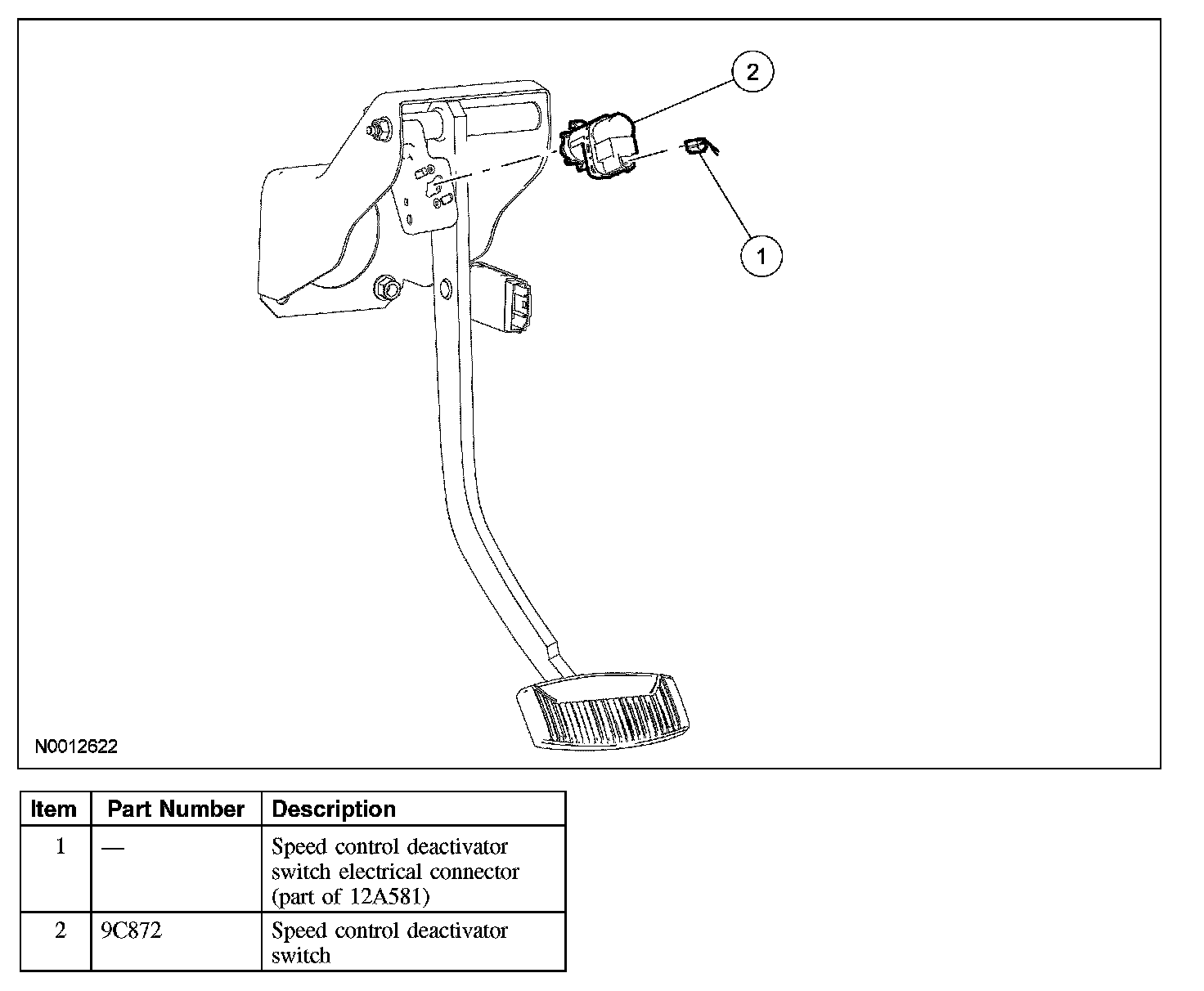

SPEED CONTROL DEACTIVATOR SWITCH







Removal and Installation

1. CAUTION: Do not press the brake pedal when removing or installing the speed control deactivator switch or damage to the switch will occur.

Disconnect the speed control deactivator switch electrical connector.

2. Rotate the speed control deactivator switch counterclockwise 45 degrees and remove it.
- Disconnect the electrical connector.

3. NOTE: The speed control deactivator switch is self-adjusting. Do not press the brake pedal during installation. Initial installation of the speed control deactivator switch allows for one adjustment. If additional adjustments are necessary, install a new speed control deactivator switch.

To install, reverse the removal procedure.
