Home
>>
Ford
>>
2008
>>
Ranger 4WD V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module, Transfer Case
>>
Four-Wheel Drive Control Module
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

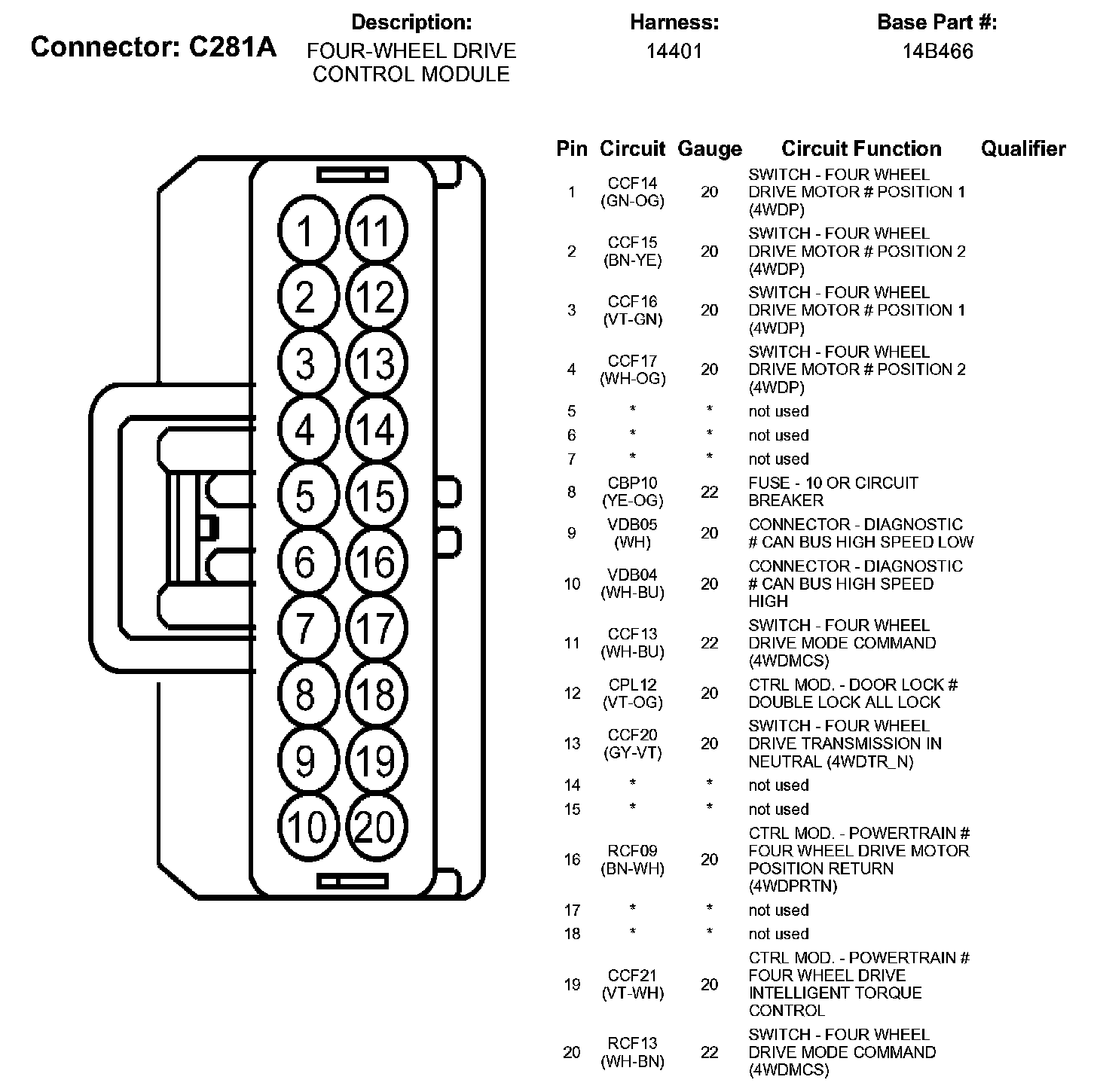

Four-Wheel Drive Control Module
C281A:
