Multiple Junction Connector
>>
C311
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

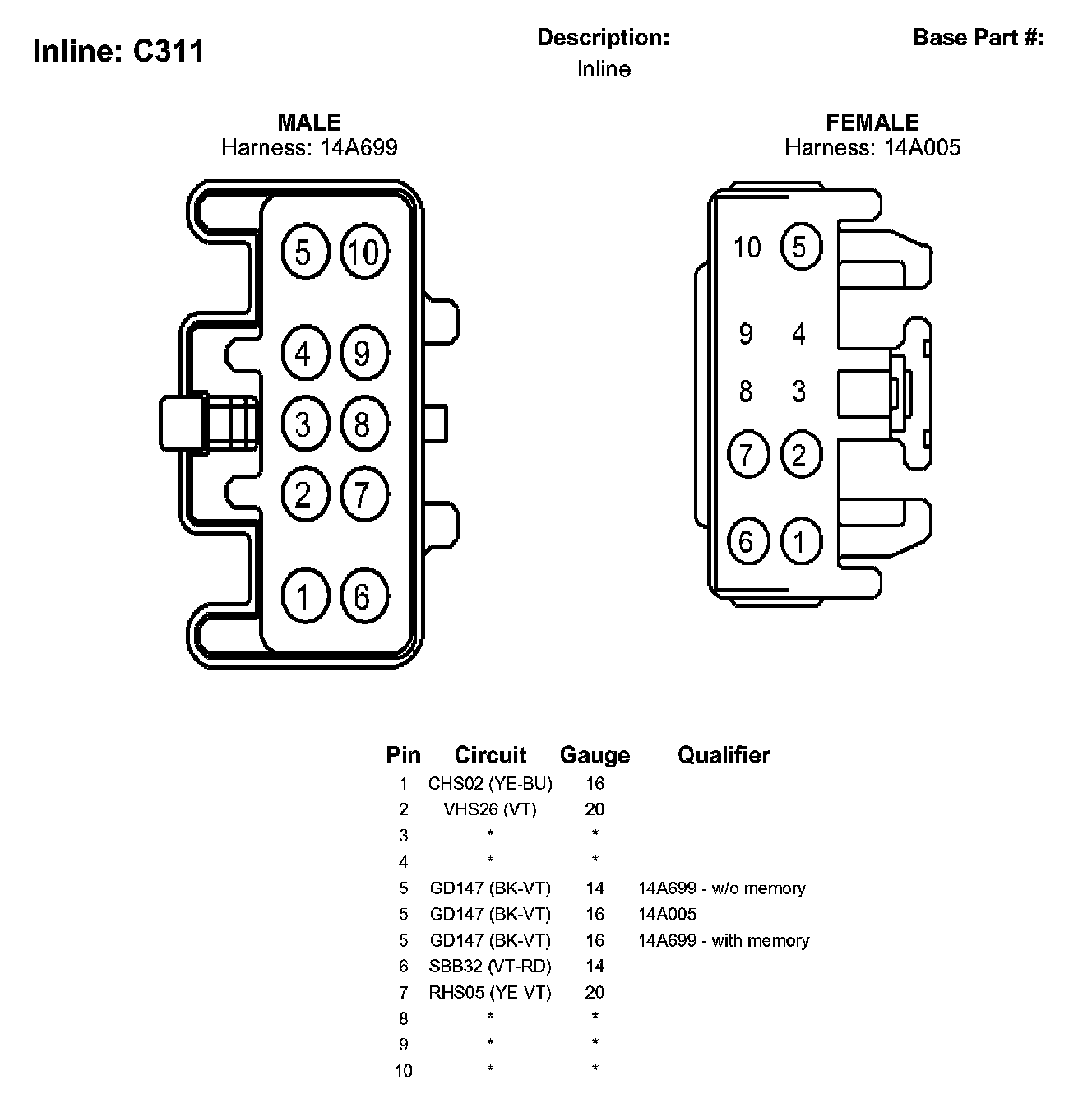

C311
C311:
