Fuel Tank and Filler Pipe - Exploded View




Fuel Tank and Filler Pipe - Exploded View

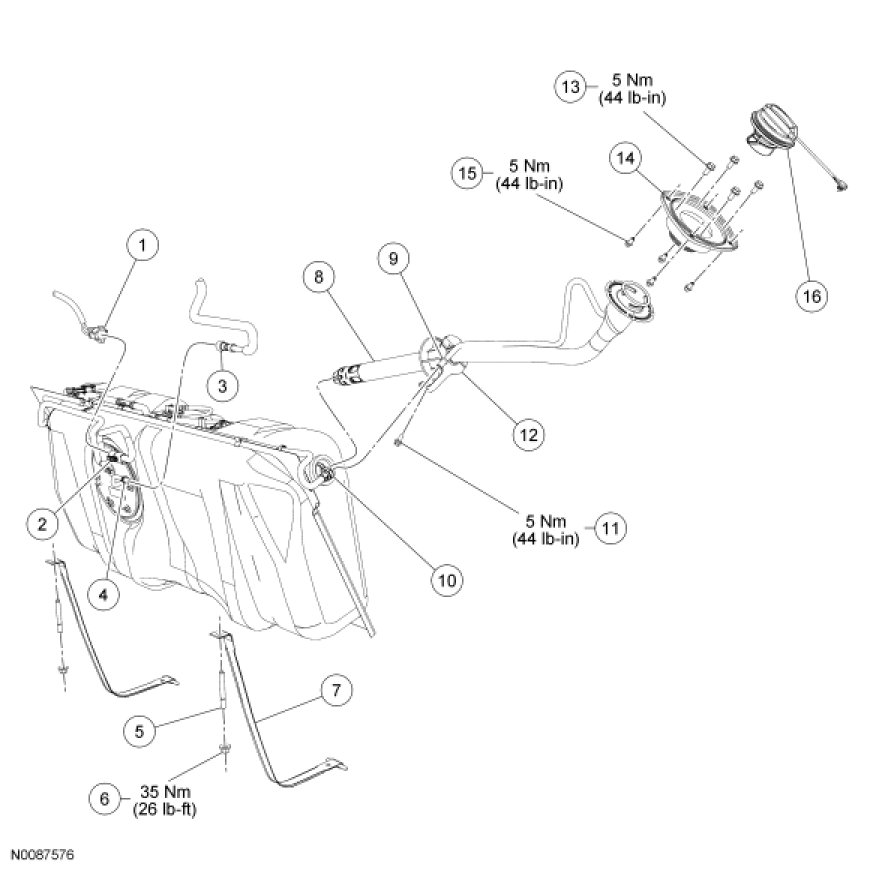

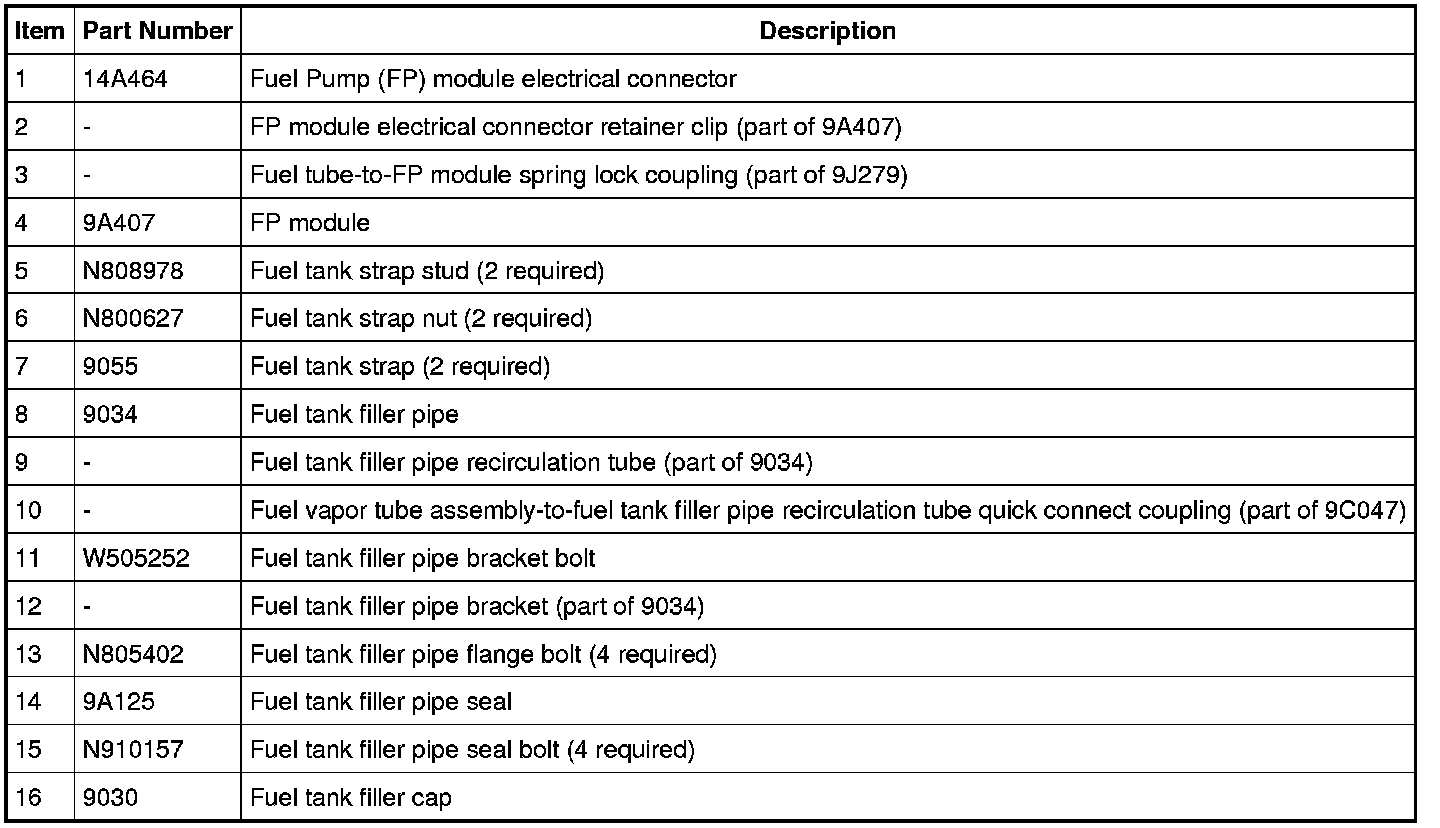

Fuel Tank and Filler Pipe

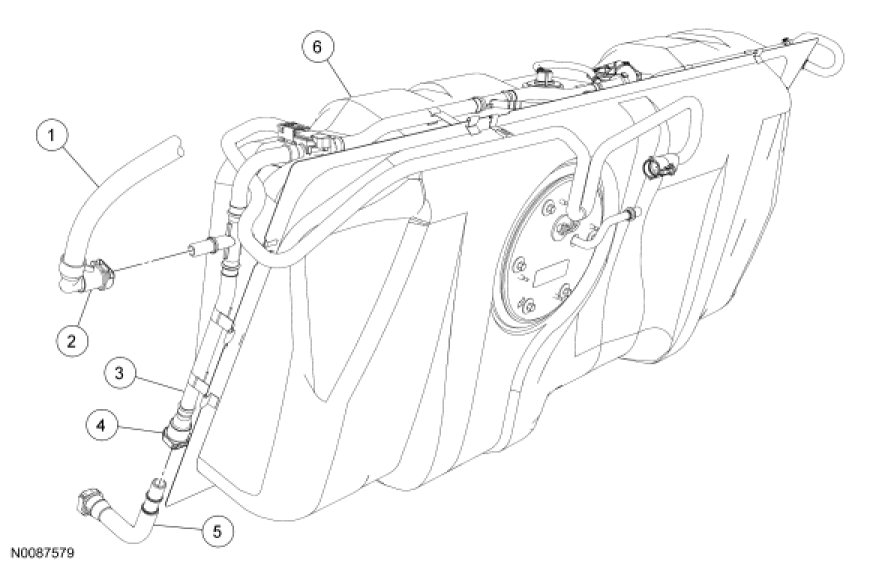

Fuel Tubes









1. For additional information, refer to the procedures.
